The slotting machine is a linear motion machine tool that uses the vertical reciprocating motion of the slotting tool to insert keyways and holes. It is mostly used for processing inner hole keyways or spline holes in single piece or small batch production. It can also process flat, square holes or polygonal holes, etc. It is especially used for processing inner hole keyways with blocked holes or obstacle shoulders.

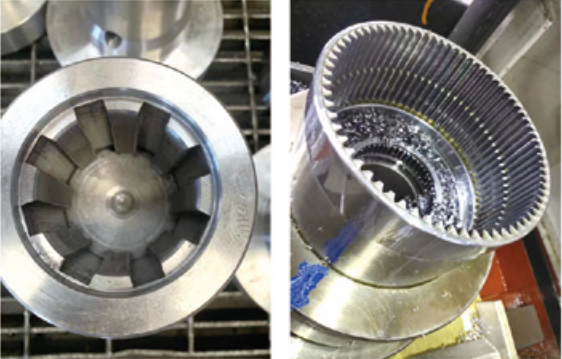

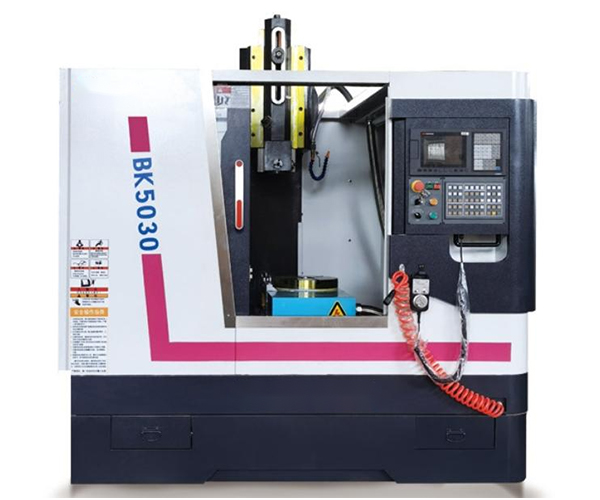

Recently, the Shanghai ANTS team received an inquiry from a Hungarian auto parts manufacturer. The customer was looking for a CNC slotting machine with a maximum slotting length of 300mm. After further evaluating the customer’s drawings and processing requirements, we recommended the BK5030. This machine tool has high power, good rigidity, large precision reserve, high cost performance, and long service life. It can be widely used in machine tools and automobile manufacturing, various mechanical and electrical industries, aerospace and other industries. It is an ideal equipment for processing keyways of various materials.
Parameters | unit | BK5030 |
Max inserting length of ram | mm | 300 |
Ram adjustment stroke | mm | 300 |
Number of ram movements | n/min | 30–150 |
working desk size | mm | 550*405 |
Workbench travel (X, Y) | mm | 250*300 |
The distance from the axis of the cutter head support hole to the forearm of the column | mm | 505 |
The distance from the end of the cutter head support hole to the workbench | mm | 540/690 |
X-direction motor torque | (NM) | 6 |
Y direction motor torque | (NM) | 6 |
Fast-moving | X(m/min) | 5 |
Y(m/min) | 5 | |
Ball screw (X) | FFZD3205-3/P4 | |
Ball screw (Y) | FFZD3205-3/P4 | |
main motor power | KW | 3.7 (Servo) |
weight | KG | 2800 |
Package Size | M | 2.3*2.3*2.25 |
If you are also a manufacturer of auto parts, or have similar processing needs, welcome to consult Shanghai ANTS. We have rich experience in the manufacturing and application of slotting machines and can provide you with professional technical support.
