| Description | YK8026 | Parameter | Unit | |
|
Processing Capacity |
Coordinate Axis Number | 6 | Axis | |
| Gear Type | Spur internal gear, cycloidal gear, helical internal gear | |||
|
Workpiece |
Max. Inner Dia. | φ260 | mm | |
| Max.workpiece thickness | 150 | mm | ||
| Max. Helix Angle | ±30° | |||
| Max. module | 4 | mm | ||
|
B-AXIS |
Max. Rotating speed | 5000 | r/min | |
| Taper Of Sleeve Bore | BT50 | |||
| Transmission Ratio | 1:1 | |||
| B-axis Motor Power | 31 | KW | ||
|
C-AXIS |
Max.Rotating speed | 3000 | r/min | |
| Turntable Dia | φ400 | mm | ||
| Transmission Ratio | 1:1 | |||
| C-axis Motor Power | 30 | KW | ||
|
Travel Distance |
X-Axis Travel | 320 | mm | |
| Y-Axis Travel | 600 | mm | ||
| Z-Axis Travel | 450 | mm | ||
| A-swivel angle | ±30° | |||
| X1-RapidFeed Ratio | 20 | m/min | ||
| Z1-Rapid Feed Ratio | 40 | m/min | ||
| Y-Rapid Feed Ratio | 8 | m/min | ||
| Total Power | 67 | KW | ||
| Size& Weight | Machine Size(L*W*H) | 2000*4800*3200 | mm | |
| Machine Weight | 9000 | Kg | ||
| Note: The control axes are hob rotation axis (B axis), work-piece rotation axis (C axis), tool holder swing angle axis (A axis), automatic tool shifting (Y axis), axial feed axis (Z axis), Radial feed axis (X axis) | ||||
Remark: Our company reserves the right to change the product appearance and technical parameters without prior notice
Product Details

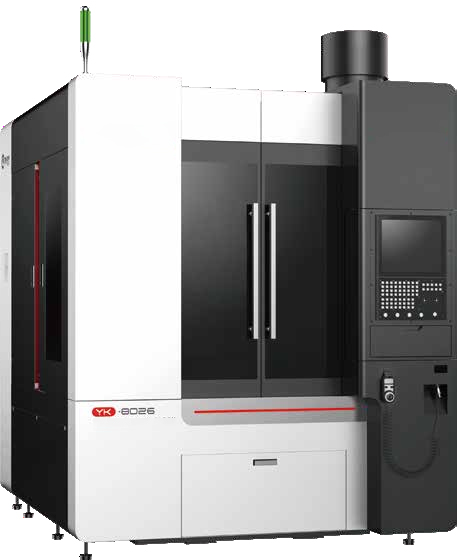

YK8026 High-Speed And High-Precision Six-Axis CNC Gear Skiving Machine
Zero-transmission, direct-drive six-axis CNC gear skiving machine: The CNC high-speed gear skiving machine adopts the principle of generating method, and realizes indexing motion and generating linkage through the precise mathematical model of the numerical control system (higher than EGB). Both B and C axes are directly driven by servo motors to achieve zero transmission.
Specialized system for expert gear skiving machine: No programming required, parameterized input, integrated skiving process expert system, can realize precise and efficient machining of straight internal gears, cycloidal gears, helical internal gears, etc.
High speed, self-developed direct-drive electric spindle: B-axis adopts high-power DD direct-drive motor, which has the characteristics of high rigidity, strong shock resistance, and constant temperature, and the speed can reach 5000r/min.
High efficiency, new breakthrough in intelligent technology: the expert system integrates automatic adjustment interference anti-collision function, precision memory function after power failure, and power failure protection function
Features
1.Adopt Ai800A six-axis linkage intelligent control system, integrate industrial Ethernet bus IO unit, absolute value AC servo unit, and have high-end technology.
2.The innovative rotary scraping cutting process breaks through the limitations of the traditional gear shaping process, and the straight and helical gears can be used in one machine.
3.The console adopts a dual interactive design of humanized touch screen and physical buttons, with a friendly and easy-to-use interface.
4.The machining efficiency of straight tooth internal gear and helical tooth internal gear is about 5 times higher than that of gear shaping process.
5.Double direct drive design, both B and C axes are directly driven by servo motors, zero transmission error, equipped with imported super high-precision circular grating module, closed-loop control, to ensure long-term stability of precision.
6.The whole machine is equipped with imported high-precision bearing components, supplemented by the main shaft circulation oil cooling system, and the performance is always excellent under complex working conditions.
7.Support industrial MES system, remote monitoring and remote diagnosis.
Main Parts for the machine
| Name | Specifications | Unit | Quantity |
| Machine | YK8026 | Set | 1 |
| Anchor screws | M32*3.5 | Pcs | 10 |
| Floor blocks | 240*120*80 | Pcs | 10 |
| Magnetic scraper chip conveyor | custom made | Set | 1 |
| YK8026 hydraulic station | custom made | Set | 1 |
| Oil Mist Separator | FX4002 | Set | 1 |
| Oil cooler | NX-01AST | Set | 1 |
| Isolation transformer | Set | 1 | |
| Allen wrench | 1.5-10 | Set | 1 |
| Chip bucket truck | Set | 1 | |
| Open end wrench | 17-19 | Pcs | 1 |
| Toolbox | 15inch | Pcs | 1 |
| Trachea | Meter | 3 | |
| Air gun | Pcs | 1 |
Remark：The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.
