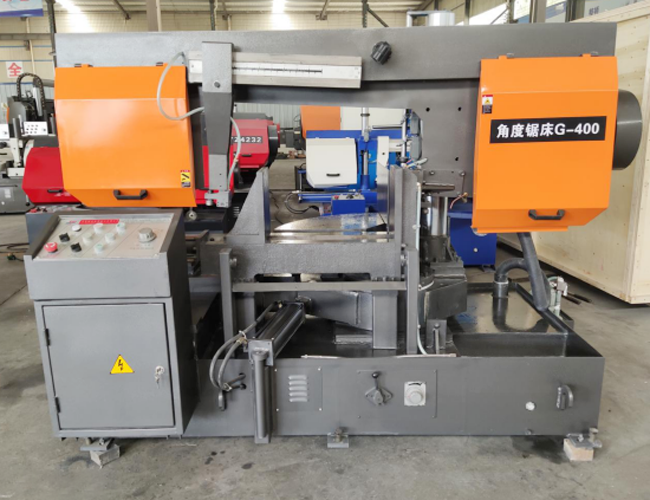

Horizontal Rotary Angel Metal Band Saw Machine BS-400

Product Details

1. The double column structure ensures the guiding accuracy and the sawing is stable and reliable.

2. Hydraulic clamping, the workpiece under sawing will not loosen, avoid tooth punching, pressure damage to the saw band, and protect the saw band.

3. The feed speed is stepless speed regulation, and the speed of the saw band is the speed regulation of the tower wheel

4. Specially designed for continuous batch cutting, with 34 wide saw blades, high cutting precision and fast cutting speed

5. The corner adopts hydraulic corner, and the scale reads, which is easy to operate. Precise positioning requires special tools for measurement.

6.Steel brush type chip cleaning ensures thorough cleaning of sawdust.

7. The main transmission adopts worm gear reducer, which has strong power and reliable performance. After precise balance correction, the operation is stable and reliable.

8. Narrow kerf, material saving and energy saving.

9. Reasonable saw band guide device effectively prolongs the life of the saw band. The movable saw blade guide device has a stable structure and flexible movement. The transmission parts are adjusted to the precise balance to reduce vibration and the descending speed is stable. This precision system can prevent the saw blade from being damaged abnormally and achieve the ideal sawing effect.

10. The high-efficiency and energy-saving design of the simple circuit and the excellent space of the electrical box not only ensure the low failure rate of the machine, but also facilitate maintenance and save time;

11. In order to ensure the reliability of the machine operation, the saw blades, electrical components and hydraulic components on this machine are all high-quality products of well-known brands at home and abroad.

Features
1. Base: The base is welded with high-quality steel plates. After vibration aging treatment, the welding deformation is small. It is mainly used to install various parts of the machine tool. At the same time, the rear end of the base is a water tank for circulating cooling during sawing.

2. Corner device: The corner support is welded with high-quality thick steel plates. After vibration aging treatment, the welding deformation is small. It is mainly used to install columns, saw frames and other mechanisms. Angle adjustment adopts hydraulic adjustment, which is easy to operate and not easy to damage.

3 Main transmission: The main transmission system of the machine tool is composed of motor, reducer and driving wheel. The reducer and driving wheel are directly connected, and the transmission is stable without impact. The rotation speed of the driving wheel is adjusted by the tower wheel, and three rotation speeds are available to meet the sawing of materials with different specifications.

4. Clamping device: The clamping of the machine tool adopts hydraulic clamping. There is a set of clamping vise on the front side of the saw band, which is responsible for tightening and fixing the workpiece during sawing.

5. Saw frame: The saw frame is a bow-shaped structure, which is divided into left and right saw frame boxes. The saw frame plate is made of high-quality steel plates and welded through reasonable reinforcement ribs. After vibration aging, the welding stress is redistributed and eliminated, thereby The stability of the saw frame is guaranteed. The main transmission device, driving wheel, tensioning wheel, guiding device, and saw blade tensioning device are all installed on the saw frame. When the machine tool is working, the saw wheel rotates counterclockwise.

6. Guide device: The guide of this machine tool is divided into movable guide arm and fixed guide arm, and the movement of the movable guide arm is manually moved. After the adjustment is completed, the locking of the guide arm is manually locked. The outer side of the guide seat is equipped with bearing pre-guiding, and the top and side of the guide seat are made of hard alloy to ensure the stability of the guide and prolong the service life of the saw blade.

7.Saw blade tensioning device: The tensioning wheel is installed on the left end of the saw frame. After the band saw blade is loaded into the driving wheel and tensioning wheel, the saw blade tensioning mechanism is controlled by the manual valve to tension or loosen the saw band. Adjustable tension.

8. Cooling system: In order to prolong the service life of the saw blade, prevent the saw blade from heating up, and ensure the cutting accuracy, the machine tool adopts a cooling pump for centralized cooling, and the cooling points are divided into upper and lower guide seat positions. The coolant is recycled, and the coolant is saponified. The automatic chip sweeping device adopts the way that the wire ratchet follows the rotation of the saw blade, which can effectively clean the iron filings stuck on the saw blade without damaging the tooth tip and affecting the life of the saw blade.

9. Hydraulic system The hydraulic system consists of an independent hydraulic station, mainly composed of 1 oil tank, 1 hydraulic motor, 1 oil pump, 1 speed control valve, multiple solenoid valves, etc.

10. Electrical control system This machine tool is designed with a separate electrical control cabinet, and all electrical components are installed in the electrical cabinet. In order to ensure safety, there is an interlock between each action.

Main Parts for the saw machine

Standard Equipment of the machine
1. Blade cleaning brush.
2. Working light
3. One piece of bi-metal saw blade.
4. One set of tools with tool box
5. Roller table 1M long
