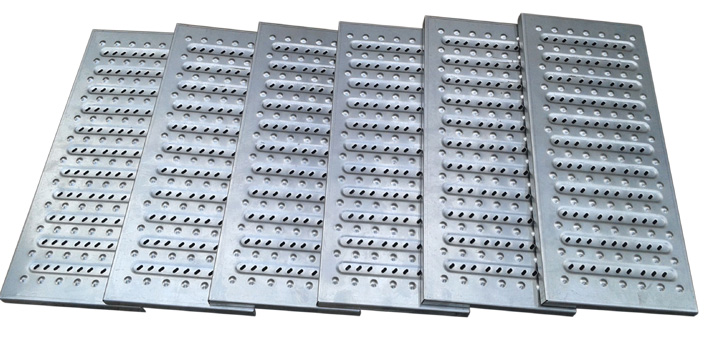

Stainless steel gutter covers, gutter covers, gutter grates and other environmentally friendly gutter covers are used more and more, the current stainless steel gutter cover production equipment is made of stamping hydraulic presses and stamping molds, to achieve the production of stainless steel gutter cover manufacturing.
Stainless steel gutter cover manufacturing process steps:
1.Cutting: the selected stainless steel plate, according to the length of the direction of the product specifications, with a shearing machine for cutting.
2.Punching: adjust the size of the punching mold, check the size of the stainless steel plate, put the cut stainless steel plate on the punching machine or hydraulic machine punching angle mold punching angle.
3.Punching: check whether the mold punching needle is normal, if normal, the stainless steel plate after punching angle on the hydraulic machine punching mold punching.
4.Stretching: the punched stainless steel plate will be stretched to improve the dimensional accuracy.
5.Folding: after stretching, select the folding equipment, the stainless steel plate folding.
Stainless steel gutter cover production equipment must be used to the shearing machine, punching machine, hydraulic press machine, mold and so on to achieve. According to the specifications of the floor drain, gutter cover, style, with the corresponding mold, press equipment. Commonly used tonnage of 630 tons, 800 tons, 1000 tons of four-column hydraulic press machine.

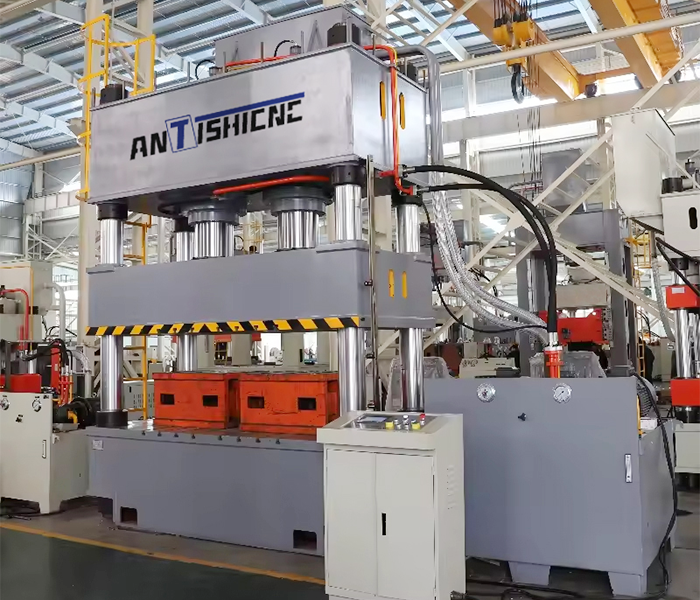

The 630 tons stainless steel gutter cover forming hydraulic press machine produced by Shanghai ANTISHICNC adopts computer-optimized structural design, three-beam and four-column structure, which is simple, cost-effective and practical. Hydraulic control adopts cartridge valve integrated system, reliable action, long service life, small hydraulic shock, reducing the connection pipeline and leakage point. Independent electrical control system, reliable, intuitive action, easy maintenance. Centralized control by push button with two operation modes of adjustment and single cycle for both hands. Through the operation panel selection, it can realize two kinds of molding process of fixed range and fixed pressure, and it has the performance of holding pressure and delaying time. The working pressure and stroke are adjustable within the specified range according to the process requirements.630 tons four column hydraulic press machine can not only produce gutter cover plate, but also replace the mold to press the gutter cover plate, grating plate, ditch cover plate, etc., which is highly praised by the customers.
| Description | Unit | 630T | |
| Nominal force | KN | 6300 | |
| Hydraulic cushion force | KN | 3150 | |
| Hydraulic pad stroke | nM | 400 | |
| Max. pressure of liquid | MPa | 25 | |
| Stroke of slider | mm | 900 | |
| Max. opening height | nm | 1500 | |
| Working table size | mm*mm | 3000X1800 | |
| Speed of slider | ldle speed | mm/s | 150 |
| Working speed | mm/s | 6-14 | |
| Return speed | mm/s | 140 | |
| Motor power | KW | 44 | |
| Machine weight | T | 84 | |
Remark: The above parameters are for reference only, the actual parameters of the machine please refer to the technical program of Shanghai ANTISHICNC.
If you have stainless steel gutter cover molding processing needs too, welcome to consult Shanghai ANTS Machine Equipment co., ltd. We have rich experience in manufacturing and using hydraulic press machines and can provide you with professional technical support.
