How to select laser cutting machine for both plate-cutting and tube-cutting?

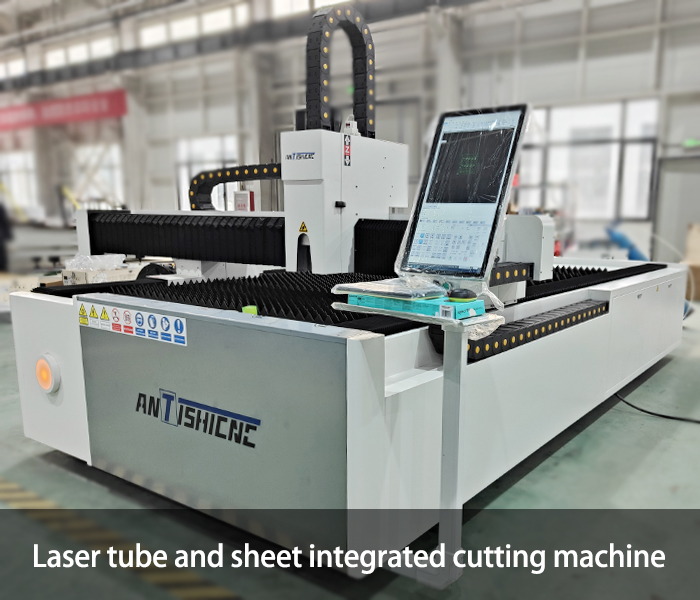

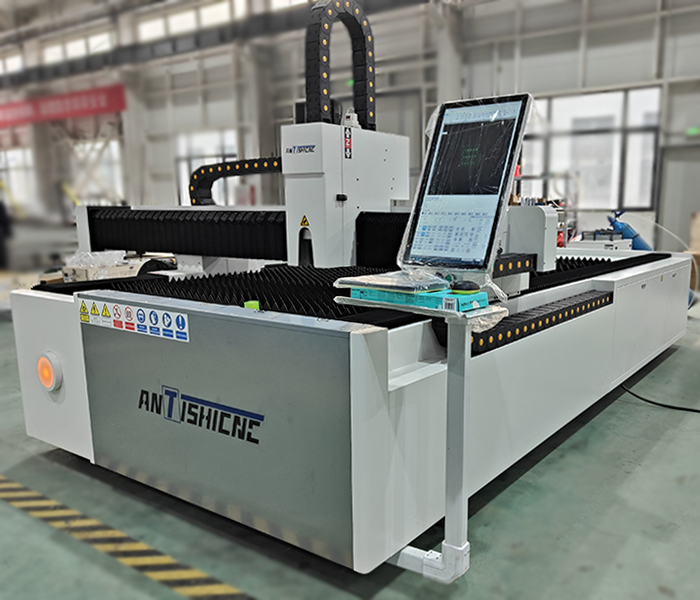

Laser tube cutting and sheet cutting machine is a laser cutting equipment that integrates the functions of sheet and tube cutting. The ATP series laser tube cutting and sheet cutting machine produced by ANTISHICNC Machinery Equipment Co., Ltd. has the following characteristics and advantages:

1. Versatility: The laser tube cutting and sheet cutting machine can handle the cutting of sheets and tubes at the same time, including square tubes, round tubes, channel steels, angle steels and other profiles, as well as various metal materials such as carbon steel and stainless steel.

2. Technical parameters: Different models of laser tube cutting and sheet cutting machines have different technical parameters. For example, the cutting range of the ATP-3015 model is 1500*3000 mm, the laser power can be selected from 1000w to 4000w, the positioning accuracy is 0.03mm, the repeated positioning accuracy is 0.02mm, the minimum line width is 0.1mm, the maximum empty speed of the XY axis is 120m/min, and the maximum movement speed of the U axis is 30m/min.

3. Product advantages: This type of equipment has strong cutting ability, low operating cost, excellent stability and high-quality processing effect. They can process large plates, meet the market’s production needs for large-format fiber laser cutting, and save costs at the same time, with high cost performance.

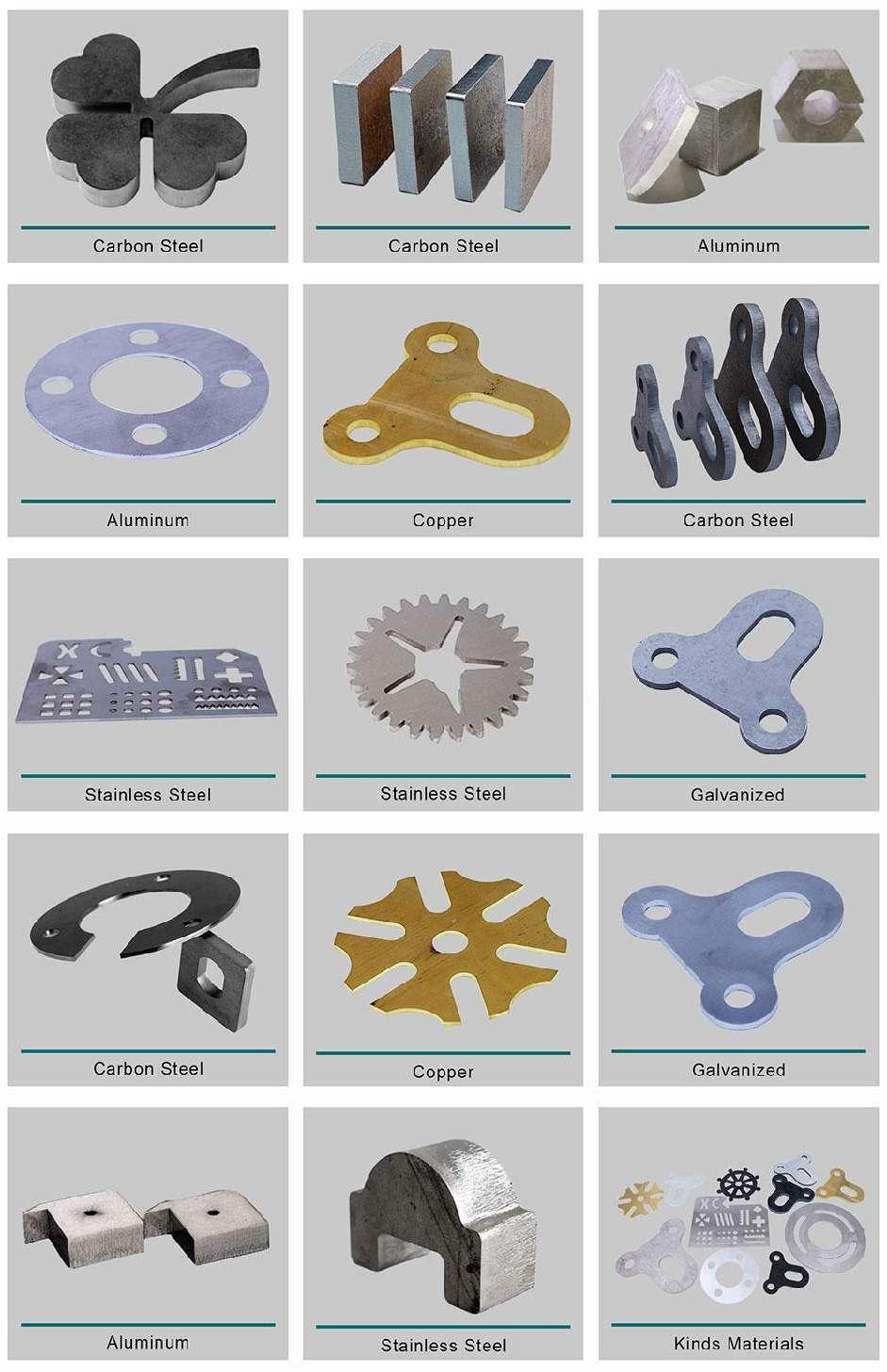

4. Material application: Suitable for cutting metal plates such as stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, etc.

5. Processing method: Supports pipe and plate cutting, with various cutting styles.

6. Core technology: The autofocus laser head can quickly change the focusing mirror with different focal lengths, adapt to various power processing, and meet the cutting needs of plates of different thicknesses.

7. Market situation: China’s laser cutting equipment industry has a broad market demand, and the industry’s technological upgrading promotes the rapid development of the industry. In 2021, the sales scale of laser cutting equipment in my country was 28.01 billion yuan, a year-on-year increase of 6.6%.

8. Competition pattern: The market concentration of my country’s laser cutting equipment industry is low, and the market is relatively fragmented. In 2021, the market share of the top five manufacturers in the industry did not exceed 10%.

9. Service support: Many manufacturers provide services such as equipment installation, commissioning, and training of users’ technicians to ensure that customers can use the equipment smoothly.

In summary, the integrated laser tube and plate cutting machine plays an important role in the field of metal processing due to its multi-purpose, high efficiency, high precision and wide material adaptability. With the advancement of technology and the growth of market demand, the application scope and market scale of this type of equipment are constantly expanding. For details, please consult the sales staff of Shanghai ANTS Machinery Equipment Co., Ltd. Contact email: contact@antsmachine.com

Introduction of Laser Cutting Machine
1. Cutting process
Laser cutting is the best cutting method in all kinds of cutting technology mastered by people nowadays. Compared with traditional cutting, the advantages of laser cutting lie in:
Contactless cutting, small thermal deformation;
Linear cutting has high precision and fast speed;
Showing a low-carbon, environmentally friendly way;
Automatically cutting is easy to achieve, improving machining efficiency;
Buying something costs 50% less than machining.
Fiber laser wavelength is 1.07-1.08μm, is 1/10 of the wavelength of CO2 laser, is more conducive to be absorbed by metal materials, cutting carbon steel, stainless steel and aluminum alloy speed is not only faster, but also can cut aluminum coated zinc plate, and pure aluminum, brass, copper and other high reflection non-ferrous metals; Optical fiber transmission, full flight optical path, especially suitable for cutting all kinds of complex parts; Powerful NUMERICAL control system and nesting software to solve many technological problems, further improve the cutting accuracy, perforation speed, simple and convenient operation. The laser is directly transmitted to the cutting head of the machine by the laser through the optical fiber. The mechanical structure is simple, the optical path is constant, the basic maintenance is free, and the cutting performance is stable. The fiber laser uses the rare element Ytterbium as the luminescent material, without high purity helium, nitrogen, carbon dioxide and their consumption. Electricity to light conversion rate up to 30%, more low-carbon, economic.
2. Advantages of fiber laser cutting
Cutting head, with the use of capacitive induction control, so that the nozzle in the cutting process is always consistent with the workpiece surface distance, so it can not only complete the plane cutting, but also can complete all kinds of uneven surface cutting;
Cutting quality is good: no contact cutting, cutting edge affected by heat is very small, basically no workpiece thermal deformation, can avoid the collapse of the edge formed when the material punching shear, slit generally do not need secondary processing;
Save mold investment: can complete a variety of complex structure processing, only need to draw any image on the computer can be laser processing, no mold, no mold consumption, no need to repair the mold, save the time to replace the mold, so as to save the processing costs, reduce the cost of production, especially suitable for the processing of large products;
Material saving: the use of computer programming, can be different shapes of products for cutting, maximize the utilization of materials.

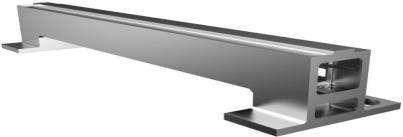

Beam part		1set	Aviation Aluminum Beam part High strength aluminum beam, light weight, flexible movement, strong rigidity, rough machining after annealing to eliminate internal stress, after two vibration aging treatment, finishing machining, more efficient processing.
Chucks		2 set	CANTINI Pneumatic Chuck Length: 3000mm Max diameter: 160mm
