Application

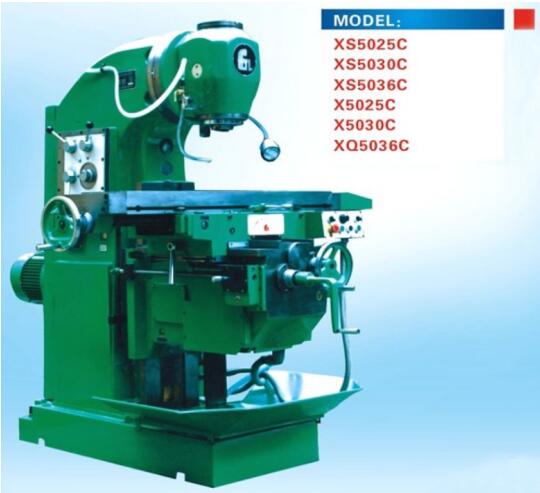

Vertical lifting table milling machines with working table widths of 250, 300, 360mm are suitable for milling of various metals. They can mill planes, bevels, formed surfaces, grooves, keyways, install special tool holders and accessories, and can also drill, Boring, etc. The machine tool has stable precision and flexible operation. The worktable has motorized feed and rapid adjustment movement in the longitudinal, horizontal and vertical directions. Equipped with a variety of accessories, easy to replace, a machine with multiple functions and a wide range of uses. It is suitable for milling in machinery, light industry, instrumentation, motor, electrical appliances, molds and other industries. On this basis, digital display vertical lifting table milling machines such as XS5025C and XS5030C have been developed. According to user requirements, digital display devices can be installed on various vertical lifting table milling machines of our company.
| Descprition | Unit | XS5025C | X5025C | XS5030C | X5030C | XS5036C | XQ5036C | |
| Workbench area (width×length) | mm | 200×900 | 250×900 | 200×900 | ||||
| Workbench T-slot | Number of slots | 3 | ||||||
| Slot width | mm | 14 | 18 | |||||
| Slot pitch | mm | 63 | 80 | |||||
| Workbench stroke | Vertical | mm | 700 | 800 | ||||
| Horizontal | mm | 280 | 300 | |||||
| Vertical | mm | 400 | 400 | |||||
| The minimum distance from the spindle end to the worktable | mm | 40 | ||||||
| Maximum rotation angle of end milling head | ±45° | |||||||
| Spindle taper | ISO40 | |||||||
| Spindle speed | range | rpm | 40～1650 | |||||
| series | 18 | |||||||
| Worktable feed range | Vertical | mm/min | 22～1000 | |||||
| Horizontal | mm/min | 15～790 | ||||||
| Vertical | mm/min | 8～360 | ||||||
| Worktable fast feed | Vertical | mm/min | 2200 | |||||
| Horizontal | mm/min | 1540 | ||||||
| Vertical | mm/min | 790 | ||||||
| Main Motor | Power | kw | 5.5 | |||||
| Rotary speed | rpm | 1440 | ||||||
| Digital display resolution | mm | 0.01 | ||||||
| Table feed level | mm | Stepless | ||||||
| positioning accuracy | mm | 0.03/300(When equipped with digital display) | ||||||
| Repeatability | mm | ±0.02(When equipped with digital display) | ||||||
| Maximum weight of worktable | kg | 250 | ||||||
| Machine volume (length×width×height) | mm | 1910×1670×1800 | 1910×1920×1800 | |||||
| Net weight of machine tool | kg | 1800 | 1900 | 2500 | ||||
