Among pipe bending machines, single-head pipe bending machines are the most widely used and can meet various irregular bending needs. But for some symmetrical shape bends, it will be more efficient to use a double-head pipe bending machine. Let’s take a look at a practical application case:

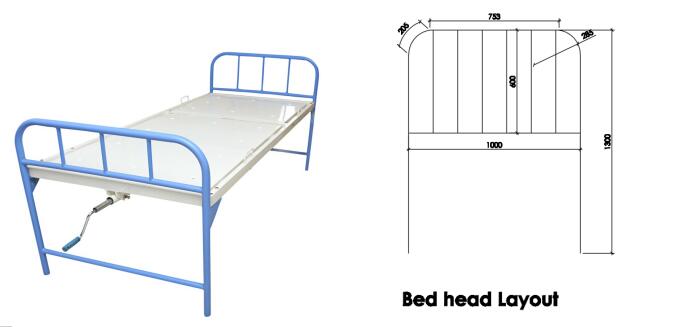

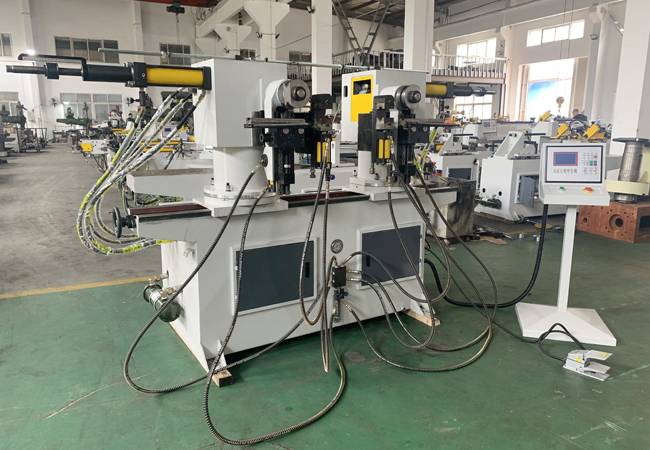

Recently, the Shanghai ANTS team received an inquiry from a hospital bed manufacturer in Ethiopia. The customer needs to make a bed frame and corresponding bed frame with a height of 1.3m and a center distance of 1m. Considering that the bed frame has a symmetrical shape and the customer’s bending requirements are relatively simple, which are all 90° bends, we recommended the double-head pipe bending machine SW38NC to him. The operation of the double-head pipe bending machine is simple, two angles are formed at one time, and the angles can be ensured to be on the same horizontal plane. When used with a limiter, fast clamping and bending work can be achieved without the need for repeated measurements.
| Main specifications | Unit | SW38NC(ANTISHICNC) |
| Max. bending diameter x Wall thickness | mm | Φ38×2 |
| Max. bending radius | mm | R200 |
| Mini. bending radius | mm | R≥1.5D |
| Max. bending Angle | Degree | 190 |
| Standard core length | mm | Double bend center range：190-1500 |
| Control system | – | Microcomputer control |
| Number of elbow allowed for pipe fitting | Unit | – |
| Number of parts that can be stored | Unit | – |
| Oil motor power | KW | – |
| Max system pressure | Mpa | 12 |
| Hydraulic system control | – | Solenoid valve |
| Tank volume | L | 120 |
| Machine dimensions | mm | 2600×1200×1600 |
| Machine weight | Kg | 1200 |
If you are also a manufacturer of furniture and bedding products, or have similar processing needs, please feel free to contact us for consultation. We have rich experience in manufacturing and using pipe bending machines and can provide you with professional technical support.
