Milling machine is a widely used machine tool, mainly used for processing a variety of planes, grooves, gears, spiral surfaces, etc. Its working principle is through the rotary motion of the milling cutter and the linear or curved motion of the workpiece to achieve cutting processing. It has high processing accuracy and surface quality, and can meet the processing requirements of parts in different industries.
Advantages of vertical milling machine:
1.The compact structure and small footprint make it easy to install and use in a small workspace. For example, in some small machining workshops, space is limited, and vertical milling machines can better adapt to the environment.
2.The tool loading and unloading is convenient, the tool replacement time is short, and the production efficiency can be improved. For example, in mass production, the advantages are obvious when the tool is changed frequently.
3.Suitable for processing plane, step surface, inclined surface, etc., for the vertical direction of processing is good at. For example, processing some mold parts with vertical characteristics.
4.The spindle rigidity is good, can withstand large cutting force, can be heavy cutting.
Advantages of horizontal milling machine:
1.The processing range is wider, and longer workpieces can be processed, which has advantages for the processing of long-axis parts. For example, in the automobile manufacturing, the transmission shaft of the automobile is processed.
2.It can more easily install a variety of accessories, such as universal milling head, rotary table, etc., thus expanding its processing capacity. The universal milling head enables machining at complex angles.
3.Because the table can move in the horizontal direction, it is relatively easy to clamp and measure the workpiece during the machining process. For parts with high precision requirements, it is easy to measure and adjust at any time.
4.For some parts that need to be multi-sided machining, there is no need to reinstall the clamping, which reduces the clamping error.

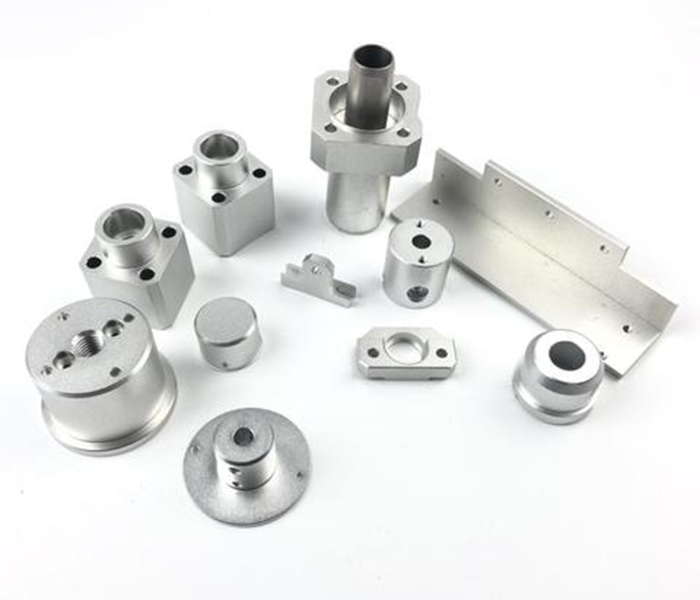

Milling machines are widely used in many industries, such as mechanical manufacturing, mold, aerospace, electronics, medical equipment, etc., for processing various parts and components. In machinery, mold and other industries, milling machines can manufacture precision parts; In aerospace and other fields, key components can be processed.

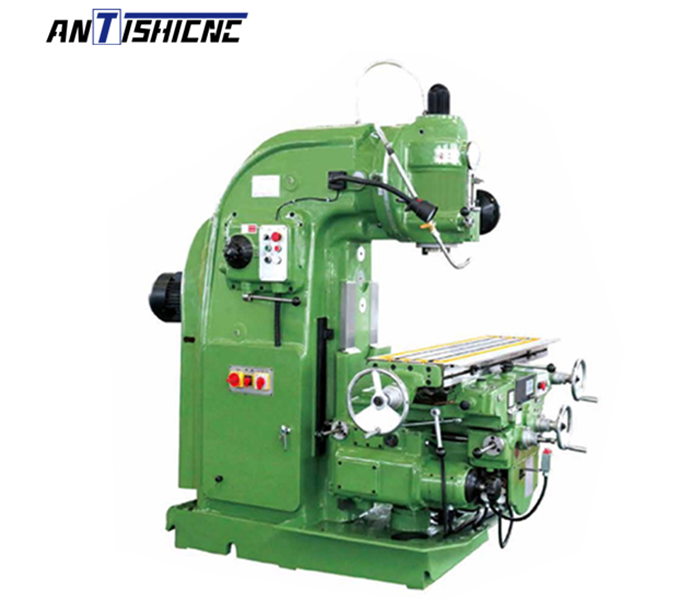

If you have the vertical and top surface of the workpiece machining needs, and have high accuracy requirements, ANTISHICNC X5040 vertical lifting table milling machine can be a reference for you.
X5040 is a kind of milling machine with a wide range of applications, which is suitable for milling planes, bevels, grooves, gears, etc., with various bar milling cutters, cylindrical milling cutters, Angle milling cutters and end milling cutters.
When the indexing head is installed on the X5040 milling machine, parts such as straight gear and reamer can be milling, and each time the part is machined after a tooth, the part is manually rotated around its center at a certain Angle in order to machined the next tooth. If the dividing head is installed at the same time, the driving shaft of the dividing head and the longitudinal screw of the table are connected with the hanging wheel frame, the spiral surface can still be milling (such as the spiral groove of the drill, the spiral gear, the drum, etc.).
The X5040 milling machine can also be fitted with a circular table for milling cams and arcs. Therefore, the X5040 vertical milling machine is suitable for all kinds of enterprises, from small scale mechanical repair stations to mass production automobile factories.
| Technical SPEC| Model | Unit | X5040 |
| Table size | mm(“) | 1700×400(67×16) |
| T-type slot numbers / width /space | mm | 3-18-90 |
| Max. load of table | kg | 800 |
| Longitudinal travel (manual/auto) | mm | 900/880 |
| Transverse travel(manual/auto) | mm | 315/300 |
| Vertical travel (manual/auto) | mm | 385/365 |
| Cutting feed speed | mm/min | X.Y:23.5-1180. Z:8-394 |
| Rapid feed speed | mm/min | X.Y:2300..Z:770 |
| Spindle travel | mm | 85 |
| Distance between spindle nose and table surface | mm | 130-515 |
| Max. swivel angle of table | degree | ±45 |
| Spindle speed step | (steps) | 18 |
| Spindle speed range | rpm | 30-1500 |
| Spindle motor power | KW | 11 |
| Overall dimensions | mm | 2560x2130x2298 |
| Machine weight | Kg | 4250 |
If you have heavy load cutting needs, welcome to consult Shanghai ANTS. We have rich experience in the manufacture and application of milling machines, and can provide you with professional technical support.
More milling machine equipment, please visit laser-sheet-cutting or send email to contact@antsmachine.com. Our engineers will give you a very perfect solution.
