As a key piece of equipment in modern pipe processing, the CNC pipe bending machine, with its high-precision bending control system, can stably and accurately adjust the bending angle and radius of the pipe according to the set program and parameters. For example, in the production of automotive exhaust systems, this precision ensures that the installation position and shape of the pipe are perfectly matched. The machine itself supports various complex bending forms, including U-shapes, S-shapes, and circles, allowing for the easy realization of diverse shapes in metal frame structures commonly used in the furniture industry.
Furthermore, the CNC pipe bending machine has automatic feeding and automatic positioning functions, which can significantly reduce manual intervention, improve processing efficiency, and maintain the stability of processing quality. Its excellent adaptability is also reflected in the processing of pipes of different specifications, regardless of pipe diameter, wall thickness, or material, it can reliably process them. Taking the construction industry as an example, whether it is thin-walled stainless steel pipes or thicker carbon steel pipes, they can all be efficiently formed on this machine, demonstrating strong versatility and process flexibility.

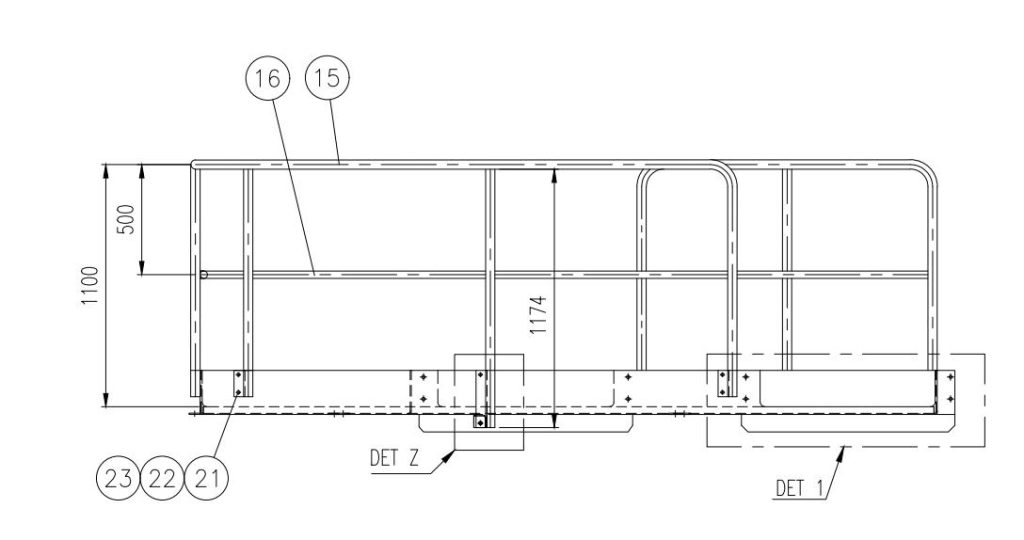

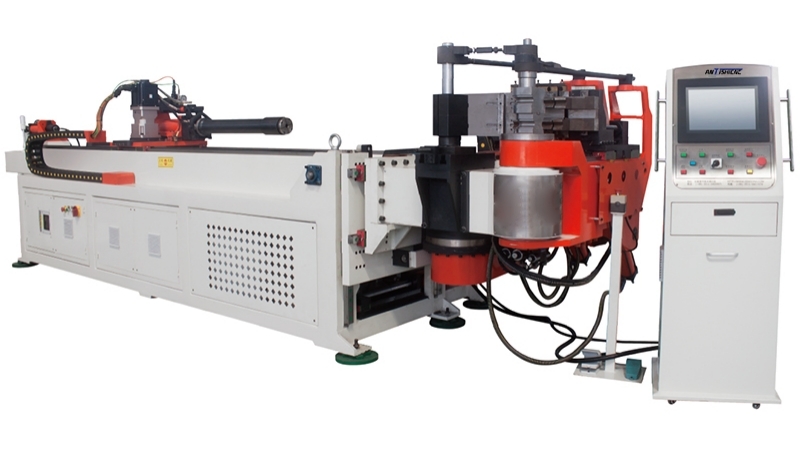

Recently, ANTISHICNC team received an inquiry from a furniture manufacturer. The client needs to manufacture various railings and furniture frames, with the largest workpiece size being 42.4*3.2mm, taking into account various dimensions and drawings to be encountered in the future. We recommended the extended version of the DW75CNC-3A-3S to the client, which is sufficient to handle bending of long materials and bending of multiple radii.
| Name | 75CNC-3A-3S |
| Max bending capacity 1.5D carbon steel | Φ75×3mm |
| Max bending capacity 1.5D stainless steel | Φ65×2mm |
| Max feeding stroke (b) | 6500mm |
| Feeding method | Direct feeding or clamp feeding |
| Max bending radius | R350mm |
| Max bending angle | 190° |
| The number of bent pipes that can be set for each pipe fitting | 16 pieces (PLC type)/33 pieces |
| The number of bend files can be set | 300 |
| Bending speed | MAX 60 degrees/second |
| Tube rotation speed | MAX 100 degrees/second |
| Feeding speed | MAX 500mm/sec |
| Bend angle | ±0.5 degrees |
| Turning tube angle | ±0.2 degrees |
| Feeding length | ±0.2mm |
| Rotary tube servo motor | 1KW |
| Feeding servo motor | 1.5KW |
| Left and right demolding servo motor | 1.5kw |
| Bending Method | By Hydraulic Bending |
If you are also a furniture manufacturer or have similar processing needs, please feel free to contact ANTISHICNC with your drawings. We have extensive experience in manufacturing and using pipe bending machines and can provide you with professional technical support. Please send an email to contact@antsmachine.com
