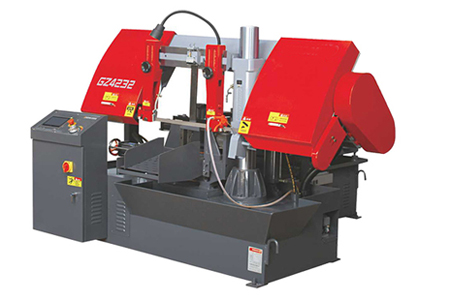

Horizontal Double Column Metal Band Saw Machine

1. Double column structure, vertical lifting, high stability.
2. Hydraulically controlled saw speed stepless speed regulation
3. Workpiece clamping adopts hydraulic mode, which is easy to control
4. 3 hydraulic tension saw blades can be manufactured according to customer requirements.

Specification  Unit GBS-4235 GBS-4240 GBS-4250
Cutting capacity mm Φ350/350*350 Φ400/400*400 Φ500/500*500
Blade size mm 4115*34*1.1 5000*41*1.3 5800*41*1.3
Blade speed m/min 27/45/69 27/45/69 27/45/69
Clamping type Hydraulic Hydraulic Hydraulic
Main motor power kw 3 4 5.5
Hydraulic motor power kw 0.55 0.75 0.75
Coolant pump power kw 0.04 0.125 0.125
Overall dimension mm 2000*1100*1500 2500*1300*1600 2800*1300*2000
