Specification | unit | X6432A |
Table size | mm | 320*1600 |
Max Longitudinal travel(auto) | mm | 900/880 |
Max transverse travel(auto) | mm | 255/240 |
Max transverse vertical travel(auto) | mm | 320/300 |
Max rotary angle | ±45° | |
T Slots(N*W*D) | 3/18/70 | |
Spindle hole taper | mm | 7:24 ISO50 |
Diameter of spindle bore | (V):Φ29 (H):Φ29 | |
Diameter of spindle front bearing | mm | Φ90 |
Distance of Horizontal spindle axis to table surface: | mm | 30~350 |
Distance of table center to vertical spindle | mm | 190~510 |
Distance of table center to vertical ways of column | mm | 470~215 |
Distance of table center ram | mm | 155 |
Speed steps | (V):12 (H):18 | |
Spindle speed range | r.p.m | (V:)60~1750(H:)30~1500 |
Table feed steps | 18 | |
Table feed range Longitudinal | mm/min | 23.5~1180 |
Table feed range cross | mm/min | 23.5~1180 |
Table feed range vertical | mm/min | 8~394 |
Table rapid moving speed Longitudinal/cross | mm/min | 2300 |
Table rapid moving speed vertical | mm/min | 770 |
Power of spindle | Kw | (V:)4(H:)7.5 |
Spindle of motor range | r.p.m | 1440 |
Feed motor | Kw | 1.5 |
Feed of motor range | r.p.m | 1440 |
Net Weight | Kg | 3000 |
Overall sizes | mm | 2294×2050×1780 |

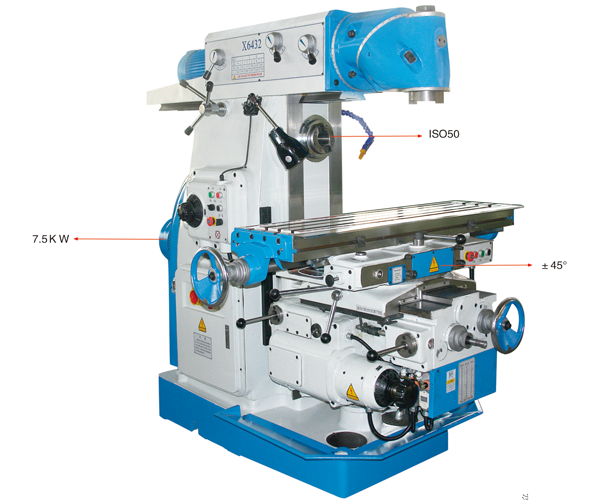

Product Detail
1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable
Application:
Ram milling machine is a kind of medium and small general metal cutting machine tools,that can lie milling and can vertical milling.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves,holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Standard Equipment of the machine
Name | Specification Model | Qty |
ISO50 Cutter arbor | φ40 | 1 piece |
Horizontal arbor assembly | Φ22 | 1 piece |
Horizontal arbor assembly | Φ27 | 1 piece |
Horizontal arbor assembly | Φ32 | 1 piece |
Oil gun | 1 piece | |
Drawbar | M24x720 | 1 piece |
Double-ended wrench | 13×14 | 1 piece |
Double-ended wrench | 27×30 | 1 piece |
Double-ended wrench | 32×36 | 1 piece |
Inner hexagonal wrench | 5 | 1 piece |
Inner hexagonal wrench | 8 | 1 piece |
Inner hexagonal wrench | 10 | 1 piece |
