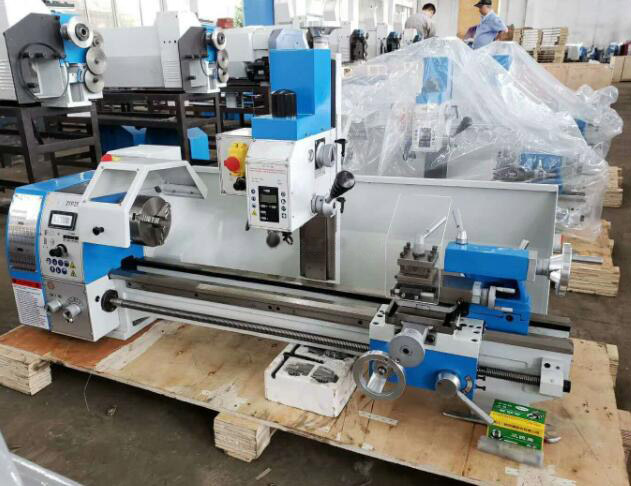

Specifications for JYP250VL Mini Lathe |
|
Model |
JYP250VL |
Lathe Specification |
|
Distance between centers |
700 mm |
Swing over bed |
250 mm |
Swing over cross slide |
165 mm |
Spindle taper |
MT4 |
Spindle bore diameter |
26 mm |
Number of spindle speed |
Variable speed |
Range of spindle speed |
150-2000 / 50-2000 rpm |
Range of cross feeds |
0.02-0.28 mm/r |
Range of longitudinal feeds |
0.07-0.40 mm/r |
Range of inch threads |
8-56 T.P.I |
Range of metric threads |
0.2-3.5 mm |
Cross slide travel |
140 mm |
Tailstock quill travel |
50 mm |
Taper of stock quill |
MT2 |
Power of motor |
750W/ 1100w |
Packing size |
1400×700× 680mm |
Net weight |
210/230kgs |
Drill mill specification |
|
Spindle stroke |
50mm |
Spindle speed |
50-2250rmp |
Max. spindle distance to table |
280mm |
Max. spindle distance to column |
170mm |
Motor |
500W |
