What are the differences in the performance of diamond grinding wheel dressing machines?

Item			Diamond grinding wheel dressing machine model + function comparison
Project	Content	Unit	X3	X5	X6
Function	Processing method		manual	manual	Fully automatic
	Control method		manual	manual	5-axis new cnc system
Equipment	Computer		19-inch monitor	19-inch monitor	21-inch 4K HD display
	Lens		Ordinary zoom lens	Ordinary zoom lens	HD fixed magnification telecentric lens
	Lower light source		Ordinary backlight	Ordinary backlight	Telecentric light source
	Machine base		Casting	Casting	Integral artificial pillar base
	Rotation axis		Mechanical shaft	Mechanical shaft	CNC turntable
	Electrical		CHNT	CHNT	Schneider
	Screw		Grinding screw rod + anti-gap copper nut	Grinding screw rod + anti-gap copper nut	Japan THK precision ball screw
	Guide rail		Domestic cross roller guide rail	Domestic cross roller guide rail	Japan THK precision linear slide rail
	Camera		Xiantai Camera	Xiantai Camera	Haikang HD Camera
	Grinding method	–	Dry repair	Dry repair/water mist	Dry repair type/water mist type/wet type optional
	Rail lubrication		Artificial grease	Artificial grease	Automatic lubrication pump, oil lubrication
	Electric cabinet cooling		fan	fan	Air conditioner
	Dust collection device and grinding fluid filtration system	–	Optional vacuum cleaner	Optional vacuum cleaner	Optional vacuum cleaner and filter tank
	Supply voltage	V	Three-phase 380V/50HZ	Three-phase 380V/50HZ	Three-phase 380V/50HZ
	Total power	kw	2.0	2.0	4.0
	Measurement function	–	Point selection measurement, circle and straight line drawing function, DXF graphic input	Point selection measurement, circle and straight line drawing function, DXF graphic input	The functions of drawing circles, straight lines, and forming contours, the contour graphics of the grinding wheel can be saved, the graphics can be compared and trimmed, and the linear measurement functions of points can be taken. The online automatic measurement function is already being debugged, and it will be upgraded for free in the future.
	Length*width*height	mm	1150*1250*1800	1500*1800*2000	1800*1800*2100
	Weight	kg	1 Ton	1.3 Ton	2.5 Ton
Dressed Wheel	Diamond grinding wheel motor power	kw	0.75	0.75	1.0 (optional 1.5kw)
	Types of diamond grinding wheel motors	–	Three-phase asynchronous motor	Three-phase asynchronous motor	Servo motor
	Maximum diameter of diamond grinding wheel	mm	300	300	300
	Minimum diameter of diamond grinding wheel	mm	50	50	30
	Maximum thickness of diamond grinding wheel	mm	40	40	50
	Diamond spindle speed	rpm	100-1500	100-1500	0-1500
	Diamond spindle left and right stroke (X)	mm	135	135	180
	Front and rear stroke of diamond spindle (Y)	mm	135	135	180
	Diamond grinding wheel can trim the radius of the arc	mm	R0.1-30(Standard lens visibility ≤R5.0mm, optional lens R2.0~R30）	R0.1-30(Standard lens visibility ≤R5.0mm, optional lens R2.0~R30	R0.1-50(Standard lens visibility ≤R5.0mm, optional lens R2.0~R50)
Dressing Wheel	X\Y cross slide table magnetic ruler resolution	mm	0.001	0.001	CNC system resolution 0.001mm
	Silicon carbide grinding wheel motor power	kw	0.75	0.75	1.0 (optional 1.5kw)
	Types of silicon carbide grinding wheel motors	–	Three-phase asynchronous motor	Three-phase asynchronous motor	Servo motor
	Trimming grinding wheel (SIC) size	mm	Ф180*10*Ф31.75	Ф180*10*Ф31.75	MaxФ180*10*Ф31.75
	Trimming wheel speed	rpm	250-2500(Stepless speed regulation)	250-2500(Stepless speed regulation)	0-3000 (stepless speed regulation)
	Number of left and right swings of the dressing grinding wheel	mm/min	0-50(Adjustable speed)	0-50(Adjustable speed)	0-50(Parameterized setting of interface)
	The left and right swing distance of the dressing grinding wheel	mm	0-45(Adjustable)	0-45(Adjustable)	0-100 (parameterized setting of interface)
	Reciprocating swing motor power	kw	0.25 Deceleration phase motor	0.25 Deceleration phase motor	Servo motor 1.0kw + ball screw
Features	Cost-effective		Manual trimming, the most cost-effective	Manual trimming, high safety of the sealing cover, to prevent the grinding wheel from bursting and harming the operator during the trimming process, and to protect the environment	Fully automatic trimming, saving labor costs, quick update of control software, free upgrade
					Double-arc and three-arc grinding wheels are trimmed and formed at one time, without secondary tool alignment, and the trimming accuracy is high.

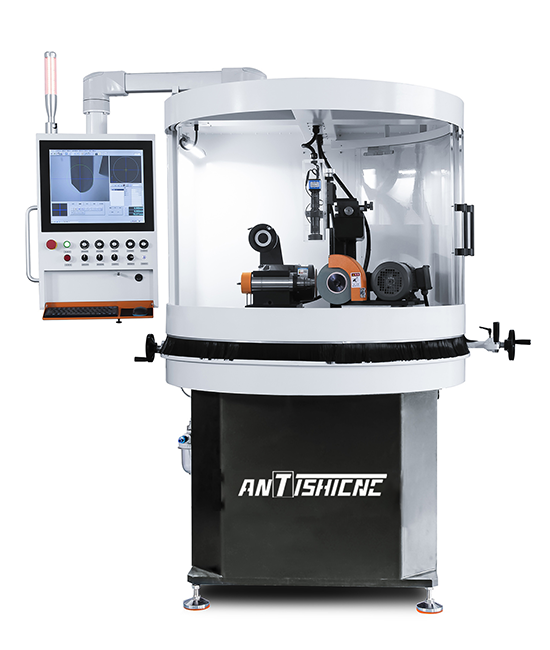

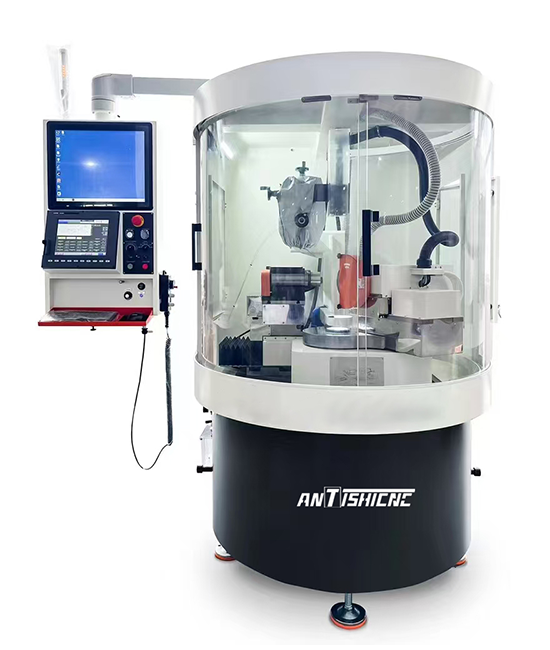

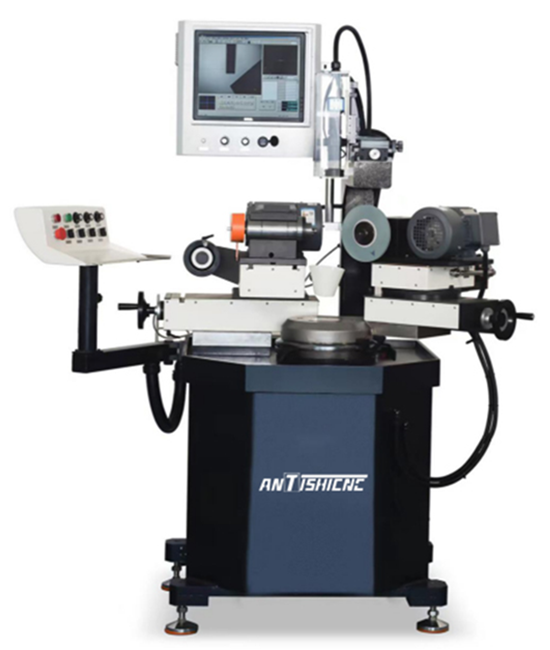

Equipment style	Machine picture	–

Shanghai ANTISHICNC is a professional manufacturer of Diamond grinding wheel dressing machine,we have rich experience in production and processing,can recommend the right Diamond grinding wheel dressing machine for your product, and give the right advice on the use of the dressing machine, can provide you with professional technical support. If you need Diamond grinding wheel dressing machine, welcome to contact Shanghai ANTISHICNC.Please send your inquiry or questions to contact@antsmachine.com for instant feedback.
