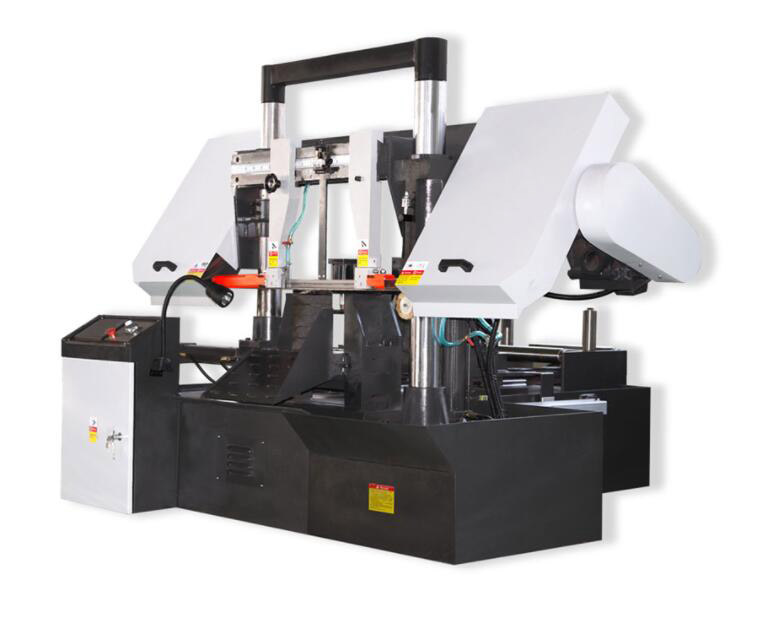

1. Used for cutting all kinds of metal material
2. Reasonable structure,stable performance,high precision.
3. PLC control,high efficiency,automatic hydraulic bar feeder.
4. Upper clamp is optional
| Model | GHS4228 | GHS4230 | GHS4235 | GHS4240 | |
| Max.cutting capacity (mm) | 280-280×280 | 300-300×300 | 350-350×350 | 400-400×400 | |
| Saw blade speed (m/min) | 27,45,69 | 27,45,69 | 27,45,69 | 27,45,69 | |
| Feed rate adjustment | Hydraulic stepless | Hydraulic stepless | Hydraulic stepless | Hydraulic stepless | |
| Saw blade size (mm) | 27×0.9×3505 | 27×0.9×3505 | 34×1.1×4115 | 5000×41×1.3 | |
| Main motor (kw) | 3 | 3 | 4 | 4 | |
| Hydraulic motor (kw) | 0.75 | 0.75 | 0.75 | 0.75 | |
| Cooling motor power (kw) | 0.04 | 0.04 | 0.04 | 0.04 | |
| One time feed length (mm) | 500 | 500 | 500 | 500 | |
| Feed accuracy (mm) | ±0.20 | ±0.20 | ±0.20 | ±0.20 | |
| Main transmission structure | Worm gear transmission | ||||
| Saw blade tension method | Manual | ||||
| Working clamping mode | Hydraulic vice | ||||
| Cleaning | wire brush & flood coolant | ||||
| Dimensions(mm) | 2370*1800*1500 | 2370*1900*1550 | 2300*2000*1700 | 2500×1300×1600 | |
