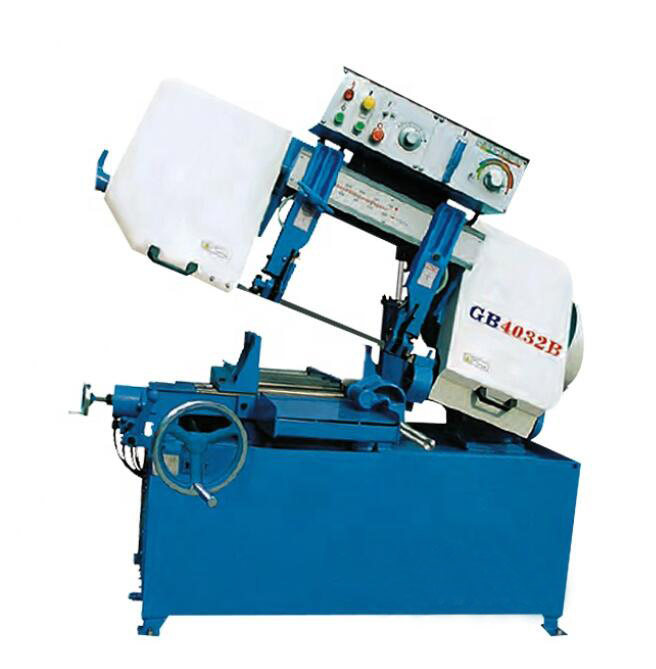

A saw machine which uses endless band saw blade as saw tool and makes continuous linear movement around two saw wheels to cut wood. It is mainly composed of bed, saw wheel, upper saw wheel lifting and pitching device, band saw blade tensioning device, saw blade guiding device, working table, guide plate, etc. The bed is made of cast iron or steel plate by welding.
|
Model
|
unit
|
15810
|
15811
|
|
LG1610X-1
|
GBS65X
|
||
|
Tuming(left)angle 0°
|
mm
|
400*250
|
650*400
|
|
Tuming(left)angle 15°
|
mm
|
360×250
|
600×300
|
|
Tuming(right)angle 15°
|
mm
|
360×250
|
600×300
|
|
Tuming(right)angle 30°
|
mm
|
320×220
|
500×300
|
|
Tuming(right)angle 45°
|
mm
|
340×220
|
350×300
|
|
Tuming(right)angle 60°
|
mm
|
110×160
|
——
|
|
Size Saw blade（W*T*L)
|
mm
|
25*0.05*3800
|
38*1.3*5040
|
|
Speed of sawbade
|
m/min
|
28-115
|
27-70/5 Steps
|
|
Motor（for blade）
|
2.2
|
5.5
|
|
|
Motor（for pumping oil）
|
0.37
|
1.5
|
|
|
hydraulic system pressure
|
MPa
|
2.1
|
3
|
|
Oversize of saw machine（L*W*H）
|
mm
|
2100x1245x1370
|
2790x1760x2500
|
|
Weight
|
Kg
|
900
|
2500
|
