What is a CNC vertical band saw?
A band saw machine is a machine tool that uses a ring-shaped, endlessly toothed band saw blade to be tensioned on two rotating saw wheels, so that it can move continuously in one direction to saw wood.
There are many ways to classify band saw machines, the most common of which are vertical band saw machines and horizontal band saw machines.
A vertical band saw is mainly composed of three parts: CNC numerical control system, machine body, and workbench (sports car).
The CNC numerical control system is composed of a computer host, a numerical control device, a drive device, a detection device, and an auxiliary control device.
The machine body is composed of a base, a column, a bed, a saw wheel, a motor drive device, a dust removal device, a saw wheel adjustment device, a saw blade, etc.
The workbench (sports car) is composed of a workbench body, a horizontal feed device, a longitudinal feed device, a clamping device, a lubrication device, etc.
The band saw machine is suitable for cutting various wood materials including round wood, wooden squares, etc. In addition, it can also cut various raw materials, boards, cardboards and other materials. It can cut both straight materials and various curved materials.
There are more and more vertical band saws used for cutting various curved materials. Furniture companies are also paying more attention to the price of vertical band saws. Every company wants to buy high-quality and low-cost equipment. How to judge the price of a vertical band saw?
1.Look at the quality of the saw blades used in the equipment.
Saw blades are generally divided into alloy saw blades and ordinary saw blades. There are many manufacturers selling saw blades on the market, but it is generally better to use alloy saw blades. Alloy saw blades have tighter cutting paths, no wavy patterns, and longer service life. Ordinary saw blades can also be used, but the service life and cutting accuracy are not as good as those of alloy saw blades.
2.Look at the processing method of the equipment.
There are generally two working methods on the market: rotating saw head and rotating saw blade, each with its own advantages. The rotating saw head uses the saw head to rotate and cut wood. The rotating saw blade method is that the saw itself is stationary and the saw blade is twisted to complete the cutting. In comparison, the rotating saw head is more flexible. The rotating saw blade is prone to metal fatigue and breakage due to the constant twisting of the saw blade, and the later loss cost is relatively large. The working mode of the rotary saw blade is higher than that of the rotary saw head. In comparison, the rotary saw head has a higher cost performance.
3.Look at the power of the main motor.
The motor power of the conventional vertical band saw is 3.5KW and 4KW. If the material to be cut is thicker, use a 4KW motor. The 4KW motor is more expensive than the 3.5KW motor.

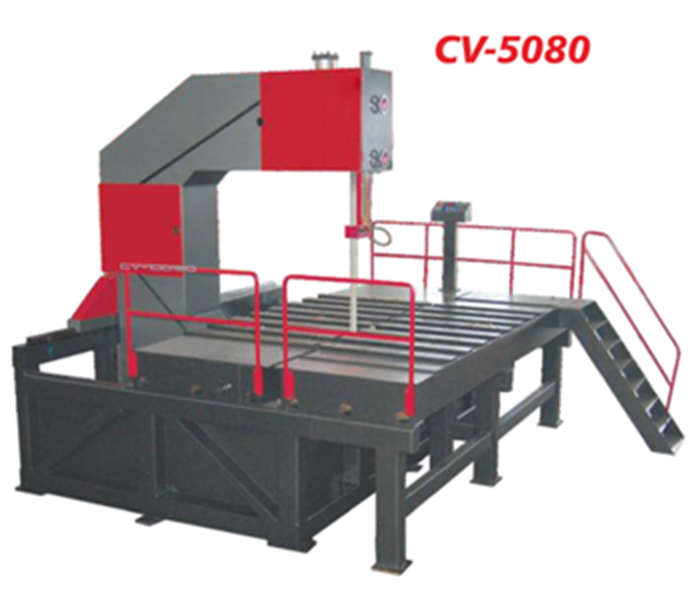

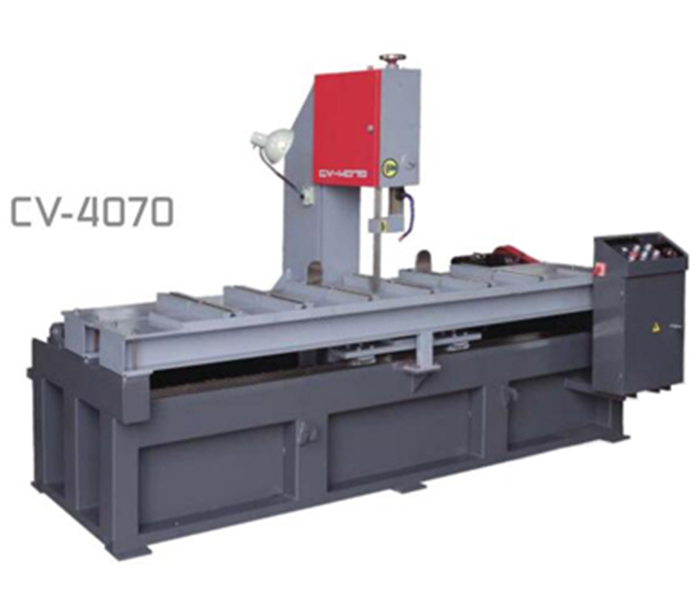

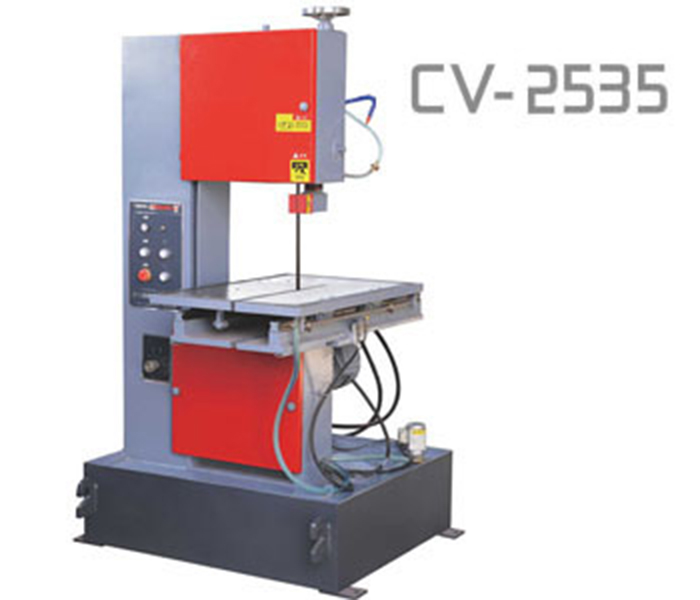

Vertical Metal Band Sawing Machine CV Series
 |
 |
 |
Technical Parameter :
| MODEL | CV-2535 | CV-4070 | CV-5080 |
| Cutting Capacity (mm) | H:250 D:350L:1000~6000 | H:400 D:700L:1000~6000 | H:500 D:800L:1000-6000 |
| Blade Size (mm) | 34×1.1 | 41×1.3 | 41×1.3 |
| Blade Speed (m/min) | 30/45/75 | 30/45/75 | 30/4575 |
| Motor Main (KW) | 3. 0(kw) | 5. 5(kw) | 7.5(kw) |
| Coolant Pump (KW) | 0.06(kw) | 0.06(kw) | .6(kw) |
For more technical details and knowledge of vertical sawing machines, please contact Shanghai Antishi Machine Equipment Co., Ltd. We provide customers with timely technical support, training and high-quality machines.
