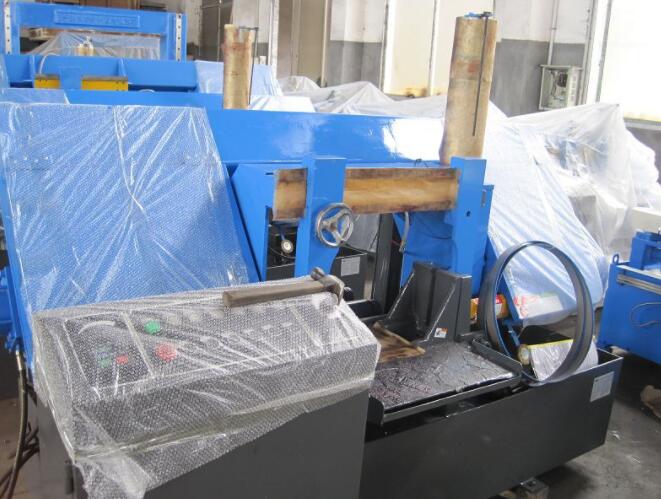

Standard double column horizontal metal cutting band saw

Band Saw Machine for Metal Used

1 The cut-off time of the machine is 4 to5 times that of hack sawing machine

2 The saw kerfs is 2mm narrower than of hack sawing machine..

3 Hydraulic feeding, step less speed regulation.

4 Hydraulic claming, automatic stopping.

5 Simple and convenient operation and maintenance

Model GB4240


Max. Cutting Diameter

Round Φ: 400 mm
Plate: 400*450 mm
Blade Speed 20.30.37.53(Stepless speed) m/min
Blade Size 1.3*41*4740 mm
Motor Output 3 kw
Hydraulic Pressure 0.75 kw
Coolant Pump 0.085 kw
Machine Size(L*W*H) 2400*820*1600 mm
Net Weight 1400 kg
Voltage 380V 50HZ 3Phase
