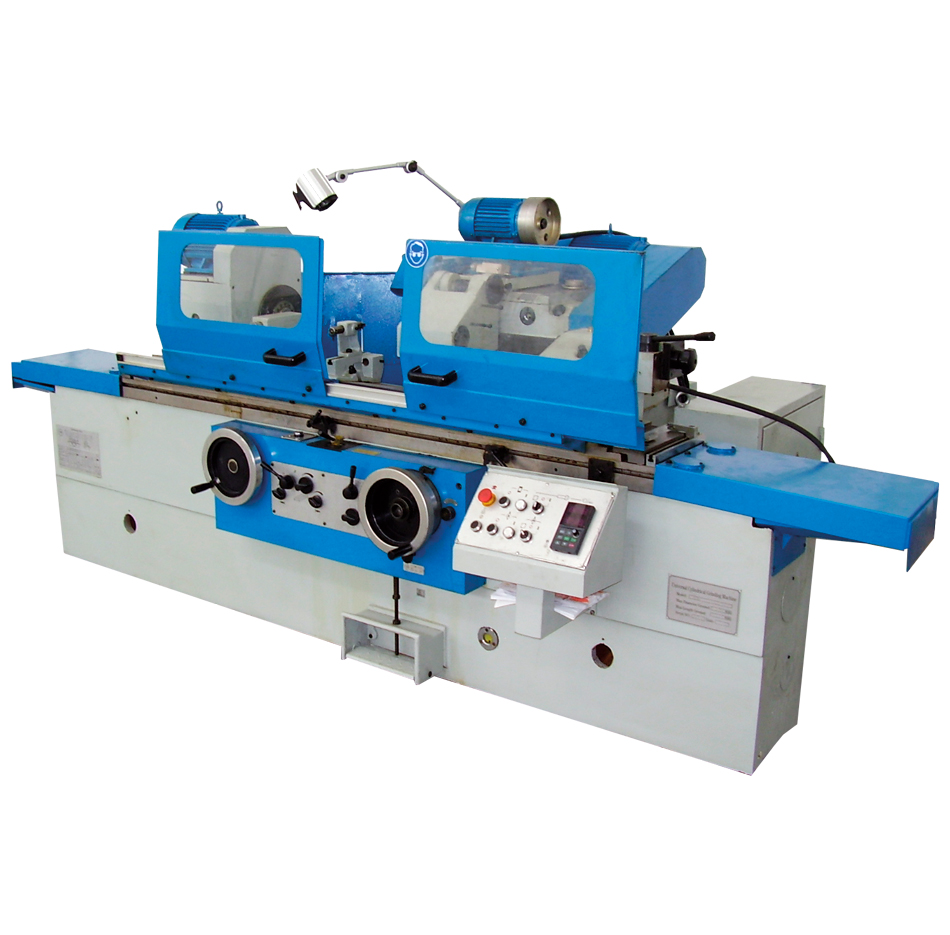

The longitudinal stroke of the machine tool table, the rapid approach and withdrawal of the shaft head, and the automatic periodic cross feed are hydraulic-electrically driven by button operation. The machine also has the following functions: manual operating table and wheel head manual lateral feed plus hydraulic tailstock sleeve foot retraction.
The headstock can be rotated counterclockwise within a range of 90 degrees. By rotating the headstock, wheel head or worktable, parts with different inner and outer tapers can be ground. By closing the internal grinding accessory, the inner surface of the part can be provided for grinding options. The chuck is installed with a short shaft.
The workpiece, external and internal grinding wheels, hydraulic pump and coolant pump are all driven by separate motors.
All power moving parts of the machine are interlocked by an electro-hydraulic mechanism to ensure safe operation. Both the outer and inner grinding wheels have intact protective covers and covers.
|
Description
|
unit
|
M1432B×1500
|
|
Grinding length(O.D./I.D.)
|
mm
|
1500/125
|
|
Center height
|
mm
|
180
|
|
Max.workpiece weight
|
kg
|
150
|
|
Worktable speed
|
m/min
|
0.1~4
|
|
Max peripheral speed of grinding wheel
|
m/s
|
38
|
|
Max.travel of table
|
mm
|
1600
|
|
Swivel range of worktable
|
.
|
﹣3+6°
|
|
Externalwheef size
|
mm
|
Φ400×50×Φ203
|
|
Workhead and tailstock center
|
morse
|
NO.4
|
|
Wheelhead displacement oer div of handwheelcoarse/fine
|
mm
|
0.01/0.0025
|
|
Machine motor power
|
kw
|
9
|
|
Overall dimensions(L×W×H)
|
mm
|
4605×1810×1515
|
|
Machine weight
|
kg
|
4300
|
