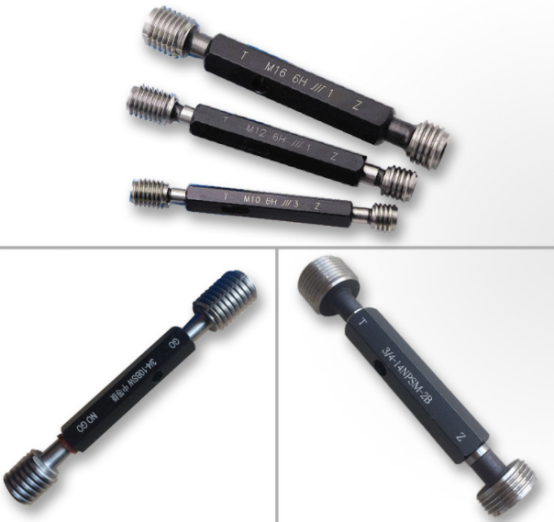

CNC External Thread Grinder is a machine tool used to grind thread plug gauges. Thread plug gauge is a measuring tool used to measure whether the internal thread size is qualified. It is widely used in the machinery manufacturing industry, especially in precision machining. CNC thread plug gauge grinder can process high-precision thread plug gauges through precise CNC system control, ensuring that its pitch, tooth angle and other parameters meet strict standard requirements.
Mainly used in the following fields:
1.Machinery manufacturing industry
2.Measuring tool manufacturing industry
3.Aerospace industry
Recently, Shanghai ANTISHICNC received an inquiry from a customer in Kazakhstan. They needed a CNC External Thread Grinder to process external threads, called thread plug gauges. Based on the customer’s drawings and other information, we recommended our SK7140 CNC External Thread Grinder to the customer.

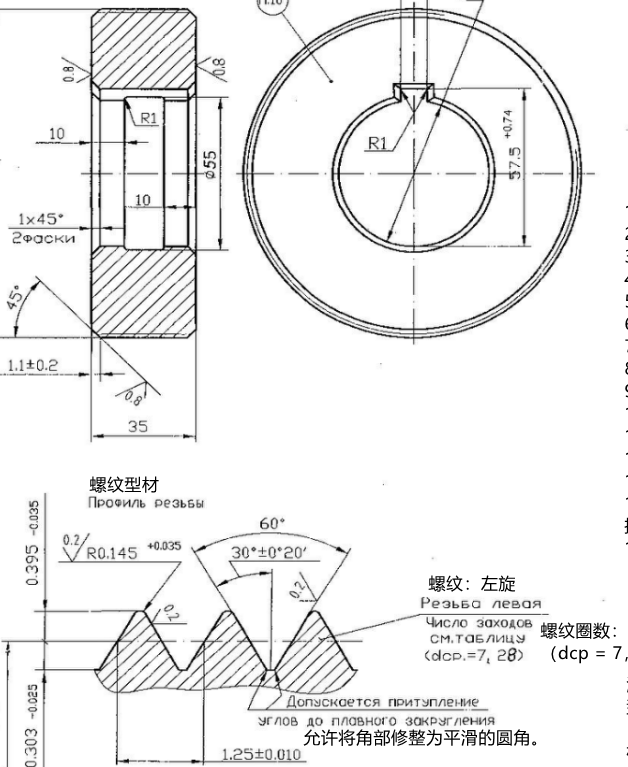

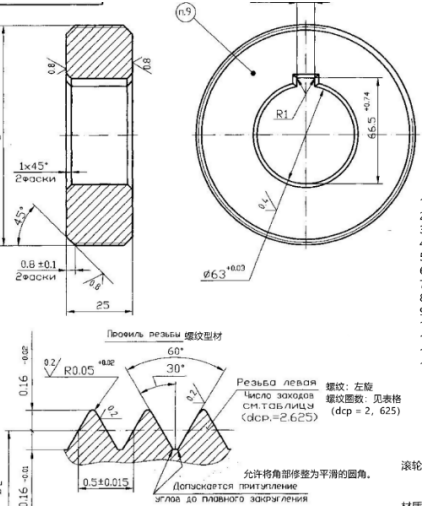

Part of the customer’s drawing information:
 |
 |

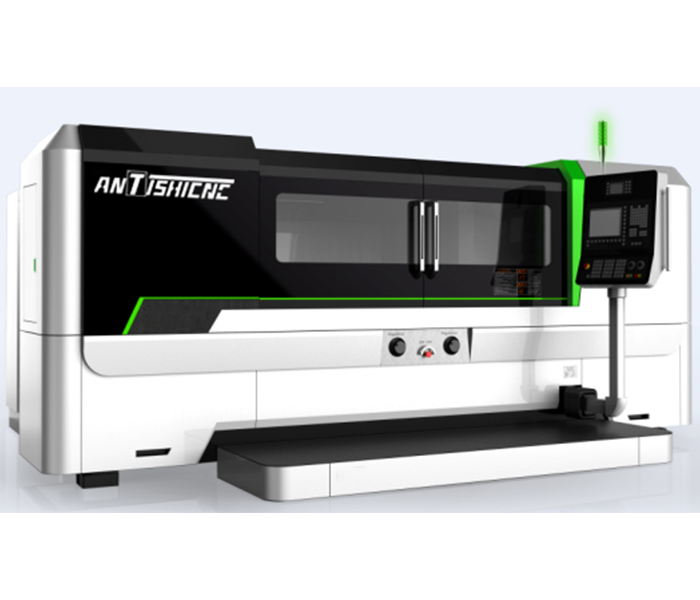

SK7140 CNC External Thread Grinder is mainly suitable for tool manufacturers to grind various cylindrical or conical large-size external thread plug gauges. The machine tool is controlled by SIEMENS 828D CNC system, which can realize six-axis three-linkage. It can grind cylindrical, conical, triangular, sawtooth, trapezoidal and arc-shaped external threads. The dressing feed is controlled by the servo axis, and the dressing amount can be compensated to the grinding wheel frame feed for automatic compensation. The worktable movement and grinding wheel frame feed can be equipped with grating rulers to achieve full closed-loop control. The head frame spindle rotation can be equipped with an incremental rotary encoder to achieve full closed-loop control, which can perfectly meet the processing needs of customers.
The main parameters of the machine are as follows:
| Specification | SK7140 CNC External Thread Grinder |
| Max. workpiece diameter | 400mm |
| Max. center distance | 500mm |
| Max. grindable diameter | 400mm |
| Mini. grindable diameter | 50mm |
| Max. grindable thread length | 380mm |
| Grindable thread pitch | Metric thread: 0.5-8 mm
British thread: 3-40 threads/inch |
| Max. helix angle of grindable thread | ±30° |
| Max. moving speed of workbench | 3000 mm/min |
| Max.moving speed of grinding wheel frame | 1000 mm/min |
| Working speed of headstock spindle | 0.5～45 r/min |
| Grinding wheel spindle speed (stepless) | 2145～2860 r/min |
| Max.linear speed of grinding wheel | 45m/s |
| Grinding wheel size | Outer diameter*inner diameter:
400~300*203mm |
| Width:10mm |

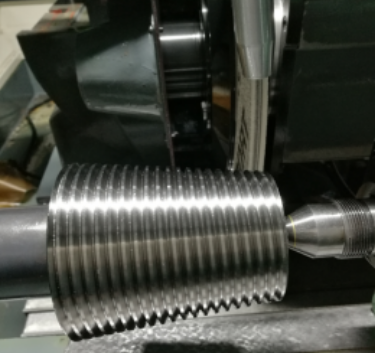

Processed workpiece photos:
 |
 |
If you have similar needs, please contact Shanghai ANTISHICNC: contact@antsmachine.com. We not only have CNC External Thread Grinder , high-precision thread plug grinding machine, but also CNC internal thread grinders. Our technical team will definitely be able to match you with the most suitable technical solution.
