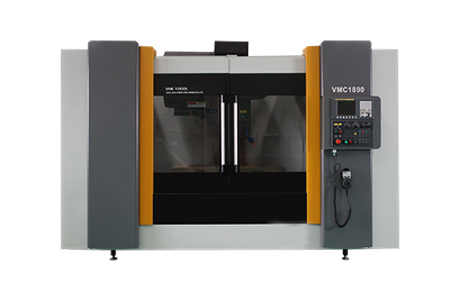

Introduction:
Rectangular hardened sliding guideways of 3-axes. Features: high rigidity, high accuracy, high speed, high efficiency, high reliability and large torque. They have a wide working range.
These machines are used in automotive, motorcycle, manufacturing, sewing machine, motor and instrument industries for milling, drilling, counterboring, boring, tapping and countersinking valve-type, cam, dies/molds and plate/disk type workpieces. They are especially suitable for all sorts of complex 2D/3D convex/concave molds and complex ID/OD surfaces. They can be used for medium/small batch multi-work production or be linked into an auto line for large batch production.
Using these machines can save manufacturing equipment, shorten production cycle, guarantee machining accuracy and increase productivity.
| Spec. |
Unit
|
VMC1580 |
| Work table |
Dim. of table(W×L) |
mm |
800×1700 |
| T-slot (num.-size × space) |
mm |
5-22×135 |
| Permissible load |
kg |
1500 |
| Spindle |
Spindle taper hole |
/ |
ISO 50 |
| Power of main motor (cont./15min overload) |
kW |
15/18.5 |
| Top speed of spindle |
r/min |
7000 |
| Travel |
X-axis right and left travel |
mm |
1500 |
| Y-axis back and forth travel |
mm |
800 |
| Z-axis up and down travel |
mm |
700 |
| Distance of spindle nose to table face |
mm |
170-870 |
| Distance of spindle center to column way |
mm |
800 |
| Feed |
X/Y-axis rapid traverse |
m/min |
16 |
| Z-axis rapid traverse |
m/min |
12 |
| Max. cutting federate |
mm/min |
10000 |
| Magazine |
Capacity of magazine |
pcs |
16/20/24 |
| Max. tool weight |
kg |
15 |
| Accuracy |
Repeatability (JIS) |
mm |
±0.010 |
| Positioning accuracy (JIS) |
mm |
±0.005 |
| Others |
Air source |
L/min |
350 |
| Air pressure |
MPa |
0.6 |
| Gross weight of machine |
kg |
13000 |
| Net weight of machine |
kg |
12500 |
| Dimensions of machine (L×W×H) |
mm |
4300x3750x3100 |
