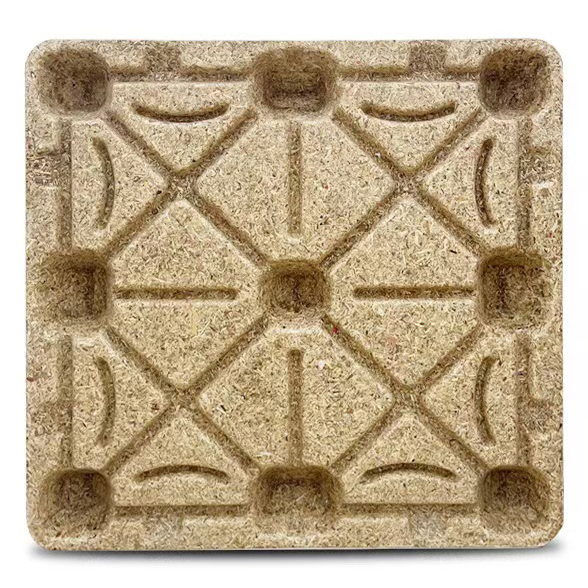

Wood chip pallet molding hydraulic press machine is a new type of molded pallet production equipment, the equipment adopts hot pressing process for one time molding, molded pallet hot press is in line with environmental protection requirements, can be recycled raw materials such as wood chips, waste wood pallets, waste wood, wood, kraft paper, straw, bamboo, and even plastics, etc. to make molded pallets. So, what is the principle of wood chip pallet molding hydraulic press machine?
The working principle of the wood chip pallet molding hydraulic press machine is based on the high pressure characteristics of the hydraulic system. A mixture of pre-treated wood chips and binder is injected into the mold through the strong pressure provided by the hydraulic system. Under the combined effect of high temperature and high pressure, the wood chips and binder rapidly solidify to form a strong and durable wood chip pallet. The whole pressing process includes several steps such as pressurization, pressure limiting, downward pressure, pressure holding, timing, pressure unloading, and demoulding, which are usually done automatically by PLC control system to ensure the production efficiency and product quality stability.

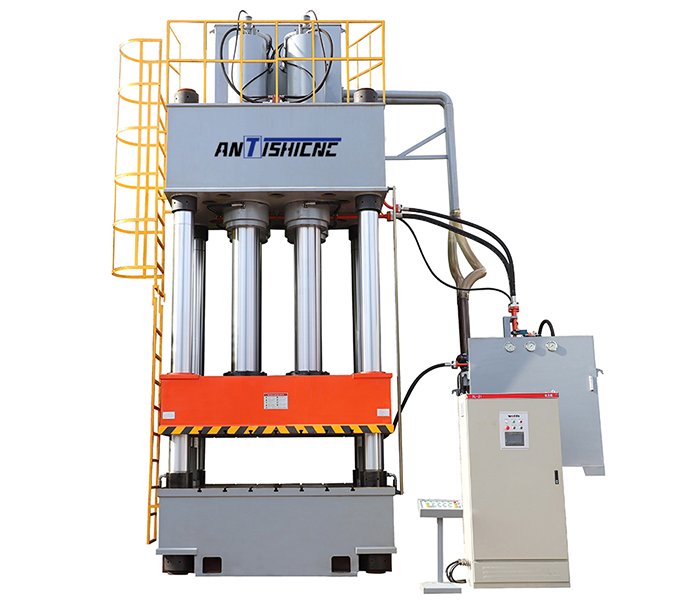

Specifically, the main parts of the wood chip pallet molding hydraulic press machine include the main machine, hydraulic system and electrical system. The main machine part includes the upper beam, ram, column, etc. These parts form a solid frame. The hydraulic system, on the other hand, is responsible for providing power to pressurize and solidify the wood chip mixture inside the mold through the pressure transfer of the hydraulic system. The electrical system is responsible for controlling the entire pressing process and ensuring that the operations are carried out according to a predetermined program.
Shanghai ANTISHICNC is a professional manufacturer of wood chip pallet molding hydraulic press machine, which can provide total solution for molding wood chip pallet. Shanghai ANTISHICNC produces wood chip pallet molding hydraulic presses with the following features:
1. High pressure: The wood chip pallet molding hydraulic press machine adopts hydraulic system, which can provide pressing force as high as hundreds or even thousands of tons to ensure that the wood chips are fully combined with the binder, making the pallet molding more solid and stable.
2. Automatic control: the equipment is equipped with advanced PLC control system, which can operate the pressing and taking out the molding with one key to realize automatic production. Operators only need to set the process parameters, the equipment can automatically complete the entire pressing process, reduce labor intensity and improve production efficiency.
3. Good stability: the equipment is usually made of sturdy structure and high-quality materials, with good stability and durability. Can be in a long time, high intensity production environment, stable operation, reduce the failure rate and maintenance costs.
4. High production efficiency: Due to the high degree of automation and fast production efficiency, the wood chip pallet molding hydraulic press can significantly improve production efficiency. One machine can process hundreds or thousands of pallets per day to meet the demand for large-scale production.
5. Energy-saving and environmental protection: the use of wood chips and other wastes as raw materials not only reduces production costs, but also realizes the recycling of resources. At the same time, the equipment produces less noise and pollution in the production process, in line with environmental requirements.
6. Multifunctionality: By replacing different molds, the equipment can produce pallets of various specifications and shapes to meet the needs of different customers.
According to the specification size of wood chip pallet, 800 tons, 1000 tons, 1200 tons, 1250 tons, 1500 tons, 1800 tons, 2000 tons and other hydraulic press machine are commonly used.
| Description | YQ32-1250T |
| Maximum liquid pressure (Mpa) | 25 |
| Slider stroke (mm) | 900 |
| Maximum opening height (mm) | 1600 |
| Table size (mm) | 1700*1600 |
| Down speed of empty range (mm/S) | 120 |
| Working speed (mm/S) | 5-10 |
| Return speed (mm/S) | 70 |
| Motor power (kw) | 37*2 |
| Oil pump displacement (ml/R) | 160*2 |
| Jacking force (t) | 200 |
| Ejection stroke (mm) | 450 |
| Approximate weight (t) | 42.5 |
Remark: The above parameters are for reference only, the actual parameters of the machine please refer to the technical program of Shanghai ANTISHICNC.
If you have wood chip pallet molding processing needs too, welcome to consult Shanghai ANTS Machine Equipment co., ltd. We have rich experience in manufacturing and using hydraulic press machines and can provide you with professional technical support.
