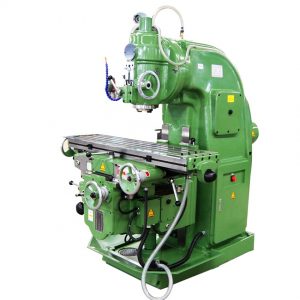

X5040 Vertical Lifting Table Milling Machine

The X5040 vertical milling machine is a widely used metal cutting machine tool, suitable for washing and cutting planes, bevels, grooves, gears with various rod milling cutters, cylindrical milling cutters, angle milling cutters and section milling cutters Wait. When the indexing head is installed on the X5040 vertical milling machine, parts such as spur gears and reamers can be washed and cut. At this time, every time the part is machined with a tooth, the part can be rotated around its center by manual operation. In order to process the next tooth, if the drive shaft of the indexing head and the longitudinal screw of the worktable are connected with the wheel frame while the indexing head is installed, it is also possible to mill the helical surface (such as the Helical grooves, helical gears, Copeland, etc.). A circular table can be installed for milling cams and arc grooves. Therefore, the X5040 vertical milling machine is suitable for use in a variety of enterprises, from small-scale mechanical repair stations to high-volume car manufacturing plants.

The X5040 vertical milling machine is a widely used metal cutting machine tool, suitable for washing and cutting planes, bevels, grooves, gears with various rod milling cutters, cylindrical milling cutters, angle milling cutters and section milling cutters Wait. When the indexing head is installed on the X5040 vertical milling machine, parts such as spur gears and reamers can be washed and cut. At this time, every time the part is machined with a tooth, the part can be rotated around its center by manual operation. In order to process the next tooth, if the drive shaft of the indexing head and the longitudinal screw of the worktable are connected with the wheel frame while the indexing head is installed, it is also possible to mill the helical surface (such as the Helical grooves, helical gears, Copeland, etc.). A circular table can be installed for milling cams and arc grooves. Therefore, the X5040 vertical milling machine is suitable for use in a variety of enterprises, from small-scale mechanical repair stations to high-volume car manufacturing plants.

Manual operation guide for X5040 vertical milling machine: There are two sets of joysticks for the longitudinal, transverse and lifting of the worktable, as well as the spindle start, stop and rapid travel buttons of the worktable, etc. X5040 Front and left side of the vertical milling machine, the operator can maneuver the X5040 vertical milling machine in both positions. Using the handle to control the stroke in three directions (i.e.: vertical, horizontal, lift) is intuitive and easy to remember. The moving direction of the handle is the moving direction of the workbench, which can be easily mastered by unskilled workers. The handle and handwheel of the hand-shaking table are driven by the wedge tooth clutch to drive the shaft to rotate together. When operating the handwheel in any direction, first push the handwheel inward to engage the clutch. During the feeding of the X5040 vertical milling machine, the handwheels of the horizontal and elevating warp are pushed out by the interlocking mechanism, so that the clutch is disengaged, and the handwheels do not rotate at the same time, which is particularly important in fast movement. As for the longitudinal operation of the handwheel, When not manually, it is ejected at any time by the spring.

Button operation instructions of X5040 vertical milling machine: The button station consists of three buttons: “stop”, “start” and “quick”. When “stop” is pressed, all movements of the X5040 vertical milling machine will stop. , When the horizontal and lifting operating handles are not at the zero position, we press the “start” button, and the corresponding feed will also start. After starting the feed, when the spindle is required to stop, the spindle on the electrical box door must be The reversing transfer switch handle is moved to the neutral zero position. If the corresponding handle is turned to the desired direction, after pressing the “quick” button, the work can be quickly traveled. If the operating handle is in the zero position, even pressing the “quick” button will not help. The fast only works when pressed, and the fast stroke stops immediately when you put it down.
