The use of pipe bending machines is very common. They are widely used in automobile parts, furniture manufacturing, construction, machinery manufacturing, steel pipe processing, petrochemicals, aerospace and other industries. Our pipe bending machines mainly include semi-automatic and fully automatic. Semi-automatic models can meet simple shapes and low output requirements. If the bending shape is complex and the precision is high, a fully automatic pipe bending machine is required.

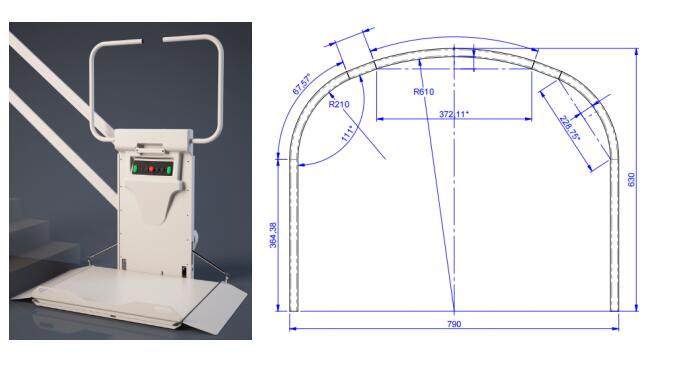

Recently, the Shanghai ANTS team received an inquiry from a manufacturer of lifts for people with disabilities. The customer’s pipe size is 20*20mm and the thickness is 1.5mm, and drawings are provided. We can see that there are 2 R, R210 and R610 in this drawing. When bending an arc with a large radius, the push bending function needs to be used. For this product, I will recommend to customers a fully automatic pipe bending machine with 2 layers of film and push bending function, which can be bent and formed in one go.

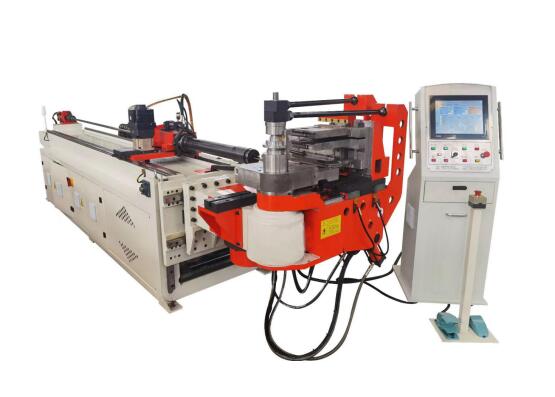

| Specifications | DW25CNC-4A-2S | Remark | |
| Max. bending pipe diameter ×Wall thickness | Φ25mm×1.6mm | 1. The minimum bending radius is based on the diameter of the pipe. 2. Maximum bending radius can be according to customer requirements. 3. The maximum core length can be according to customer requirements. |
|
| Carbon steel pipe | |||
| Max. bending radius | R200mm | ||
| Min. bending radius | R≧1.5D | ||
| Max. bending Angle | 190° | ||
| Max. feeding length | 1800mm | ||
| Feeding method | Direct delivery | ||
| Clip | |||
| Working speed | Bending speed | Max 150°/s | |
| Tubing speed | Max 200°/s | ||
| Feeding speed | Max 1000mm/s | ||
| Working accuracy | Bending accuracy | ±0.1° | |
| Tubing accuracy | ±0.1° | ||
| Feeding accuracy | ±0.1mm | ||
| Information input mode | 1. coordinate(X . Y. Z) | ||
| 2. Working value(Y. B. C) | |||
| Bend way | Servo bending | ||
| Corner servo motor | 400w | ||
| Feed servo motor | 750w | ||
| Bending servo motor | 3000w | ||
| Left and right mold changing servo motor | 400w | ||
| Pipe fittings allow elbows | 50 | ||
| Number of parts that can be stored | 500 | ||
| Oil motor power | 4kw | ||
| Maximum system pressure | 12 Mpa | ||
| Machine dimensions | 3600 x 900 x 1500mm | ||
| Machine weight | 1300kg | ||
If you are also a lift manufacturer, or have similar processing needs, welcome to consult Shanghai ANTS Machine Equipment co.,ltd. We have rich experience in manufacturing and using pipe bending machines and can provide you with professional technical support.
