Large single users such as power plants, manufacturing plants, glass production plants and asphalt plants rely on reliable and stable natural gas delivery systems to meet the energy needs of their operations. For design reasons, the system can suddenly start and stop, and the natural gas regulator can sense the load change and respond quickly, and the accuracy and quality of its parts directly affect the operation effect of the entire system. Traditional processing methods are often difficult to meet the increasingly strict requirements, and the introduction of CNC lathe provides an effective solution to this problem.

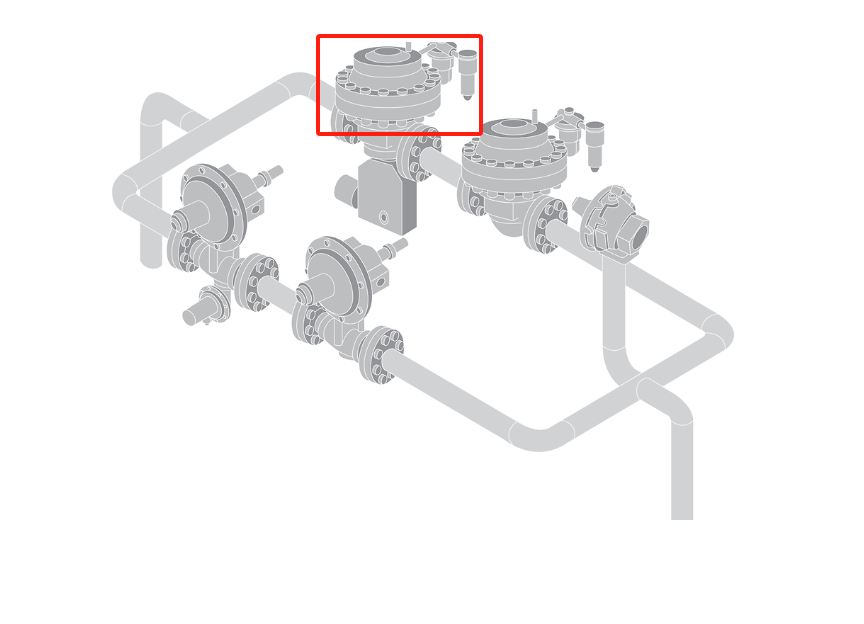

Recently, Shanghai Antishicnc team received a consultation from a factory, the customer needs to manufacture a diameter of 320-400 mm, length of 250mm as shown in the figure of the natural gas regulator.

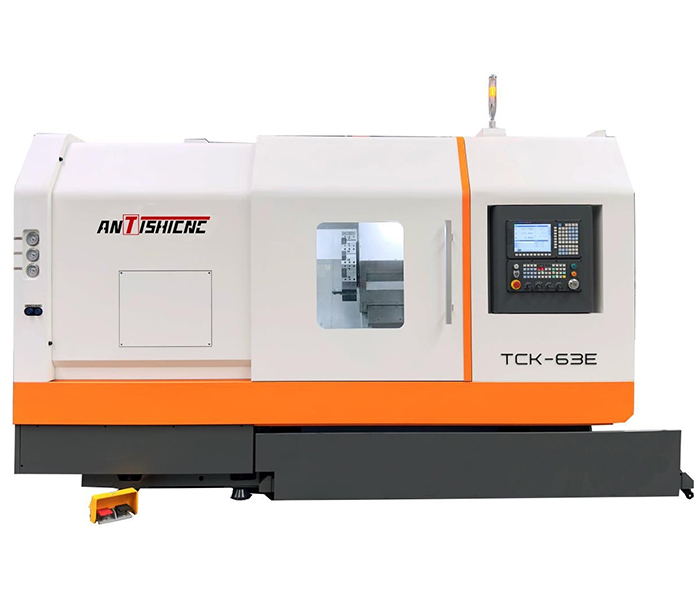

According to customer needs, Antishicnc engineers successfully matched a Hard rail Slant CNC Lathe TCK63E for the customer. The maximum plate type processing diameter is 630mm, the use of external three-speed automatic transmission gear box, cutting torque is large, strong rigidity, suitable for disk, shaft parts turning processing, can carry out straight line, circular arc, male inch thread, multi-thread processing, can be suitable for turning complex shape and high precision disk, shaft parts processing. Especially in the oil pipeline, coal, mining machinery and other industries have been recognized by the majority of users.
The following are the basic parameters of TCK63E:
| Specifications | Unit | TCK63E |
| Max. Swing over Bed | mm | Φ650 |
| Max. Swing over slide | mm | Φ470 |
| Center distance | mm | 1320 |
| Max.processing diameter of plate type work piece | φ630 | |
| Max. turning length | mm | 1000 |
| Spindle through hole diameter | mm | Φ105 |
| Bar diameter | mm | Φ103 |
| Hydraulic chuck | mm | 15’’ |
| Guide way type | mm | Hard guide |
| Tailstock configuration | Hydraulic | |
| Tool turret | PC | 12 |
| Knife square size | mm | 32X32/Φ40 |
| Min. setting unit | mm | 0.001 |
| Main motor power | KW | 18.5 |
| Total power | KW | 22 |
If you also have similar processing needs, welcome to consult Shanghai Antishicnc, We have a wealth of CNC lathe manufacturing and solving experience, can provide you with professional technical support.
To learn more about CNC lathes, please visit: https://www.antsmachine.com/slant-bed-cnc-lathe/
Key words: CNC Lathe 、Slant Bed lathe、Hard rail Lathe
