CNC vertical grinder is a kind of equipment used for grinding tools of high-speed steel, carbide and other materials. Due to its unique structural design and working mode, it has many significant advantages over horizontal grinders and is suitable for processing a variety of high-precision workpieces. It can be used in different industries, as follows:
1.Aerospace and national defense industry: processing key components of aviation engines (such as high-pressure turbine discs, integral blade discs, casings, etc.), missile guidance components, spacecraft structural parts, etc.
2.Automobile manufacturing: high-precision parts such as engine cylinders, crankshafts, camshafts, gearbox gears, etc.
3.Energy industry (wind power, nuclear power): large rotating parts such as wind power bearings, nuclear power valves (such as three-eccentric butterfly valves), turbine rotors, etc.
4.Semiconductors and precision electronics: processing of hard and brittle materials such as wafer cutting, alumina ceramic substrates, and silicon carbide devices.
5.Mold manufacturing and mechanical equipment: precision stamping molds, injection molds, gear molds, etc.
6.Shipbuilding and heavy machinery: large shafts, steering gear rotors, hydraulic components, etc.
7.Robots and automation equipment: core components such as planetary roller screws, reducer gears, and joint modules.
Recently, Shanghai ANTISHICNC Machinery Equipment received an inquiry from a customer who makes various large bearings, asking if we have a suitable CNC vertical grinder. The customer wants to process large bearings with a maximum grinding diameter of 1600mm and 2000m respectively. According to customer needs, we recommended MGK28160 and MGK28200. These two CNC vertical grinders.

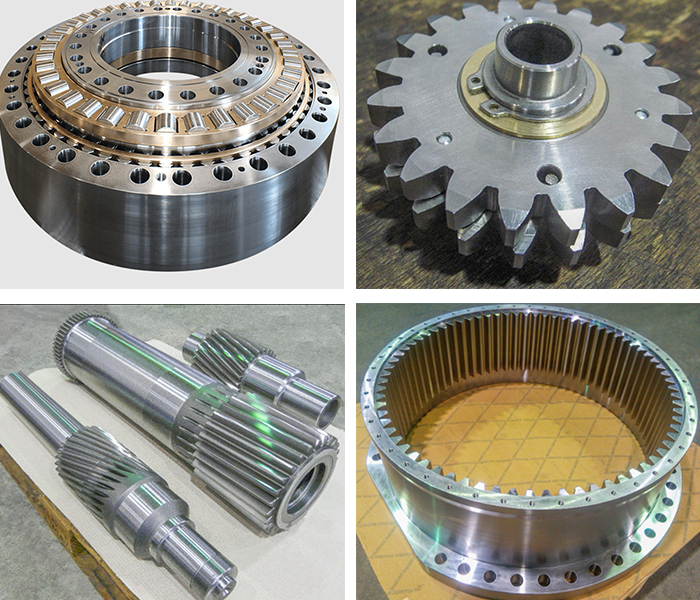

The workpieces of client need to process

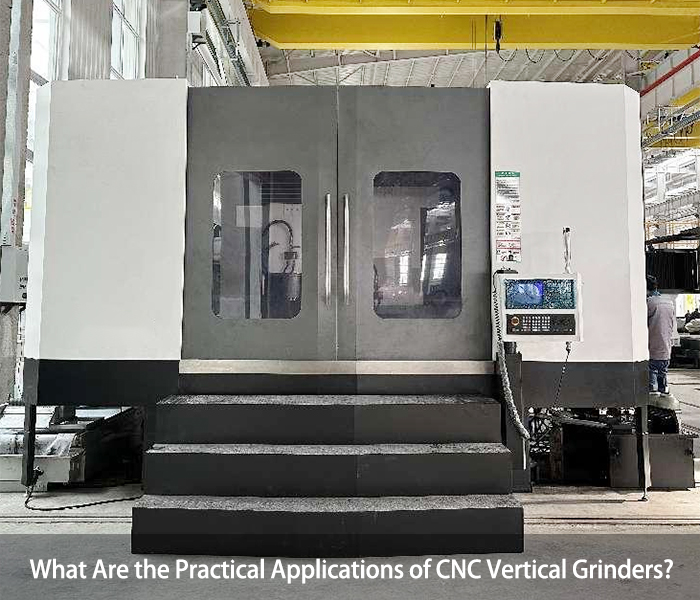

MGK28160 CNC vertical mill adopts high-precision fully enclosed static pressure rotary table, large workpiece permanent magnet motor direct drive, strong load-bearing capacity, stable operation; high table rotation accuracy (high precision/high accuracy). High-strength stepped beam and reinforced full-contact structure base ensure high rigidity and good precision retention of the machine tool.
It adopts NSK precision bearing spindle and vertical and horizontal dual spindles to meet different processing requirements; high-precision dynamic and static spindles can be optionally equipped to meet higher precision processing requirements; it adopts imported SCHNEEBERGER large-scale high-precision roller guide rails, and the X-axis is equipped with FAGOR grating ruler as standard; the rotary table oil supply system, torque motor, grinding wheel spindle, cooling system, and control system are all equipped with temperature control devices to ensure the stable operation of the key components of the whole machine; the workbench is equipped with a magnetic disk as standard, and an electric permanent magnetic chuck can be optionally equipped to meet the clamping requirements of different workpieces; it adopts a fully enclosed cover and can be equipped with a high-power oil mist collector to optimize the working environment.
Below are the specific technical parameters of this CNC vertical grinder.
| Description | Unit | MGK28160 |
| Basic parameters | ||
| Table diameter | mm | ф1600 |
| Maximum workpiece rotation range | mm | ф1700 |
| Maximum workpiece height(maximum grinding depth) | mm | 500 |
| Z-axis Travel | mm | 600 |
| Inner hole range | mm | ф50-ф200(hole depth≤200) |
| mm | ф200-ф1600(hole depth≤500) | |
| Outer grinding range | mm | ≤ф1700 |
| Table Loading Weight | Kg | 3000 |
| Worktable | ||
| Rotary accuracy (axial/radial) | mm | 0.003 |
| Rotational speed | rpm | 50 |
| Vertical spindle | ||
| Rotary accuracy(axial/radial) | mm | 0.002 |
| Variable frequency motor power | kw | 15 |
| Maximum speed | rpm | 7000 |
| Number of grinding shaft | PCS | 3 |
| Horizontal spindle | ||
| Rotary accuracy(axial/radial) | mm | 0.002 |
| Variable frequency motor power | kw | 11 |
| Maximum speed | rpm | 2500 |
| Positioning accuracy | ||
| Servo axis positioning accuracy | mm | 0.01 |
| Servo axis repeated positioning accuracy | mm | 0.006 |
| Machining accuracy | ||
| Roundness | mm | 0.003 |
| Cylindricity | mm | 0.004 |
| Gross weight | kg | 40000 |
| Total power | kw | About 100 |
| Floor area(L*W*H) | m | About 8*4.5*4 |
If you also have a need for a CNC vertical grinder, please feel free to contact Shanghai Antis. We have professional engineers who can provide you with professional technical support.
