In the field of aviation manufacturing, the machining accuracy and quality of aircraft parts is related to flight safety, and its manufacturing process has been attracting much attention. Aircraft parts are usually made of high-strength, high-temperature and corrosion-resistant alloy materials, which are extremely hard and difficult to process.
In order to solve the above problems, the ANTISHICNC team invented a sawing machine CNC540 for specialised cutting of aerospace materials.
It is a specialised sawing machine for aerospace materials and is one third of the price of imported sawing machines.
The main features of this sawing machine are:
1、German system technology manufacturing.
2、Forward tilting integrated casting structure saw frame, stable operation, strong sawing force.
3、Saw frame adopts servo ball screw feeding + nitrogen balancing system, stable and reliable feeding speed.
4、SEW direct coupled reducer main drive.
5、Intelligent sawing control system
6、Offset servo feeding
7、The width of saw blade guiding arm is automatically adjusted following the width of vise, so that the width of guiding arm is always in the best guiding width, which improves the sawing precision and sawing efficiency.
The following are the parameters of this sawing machine:

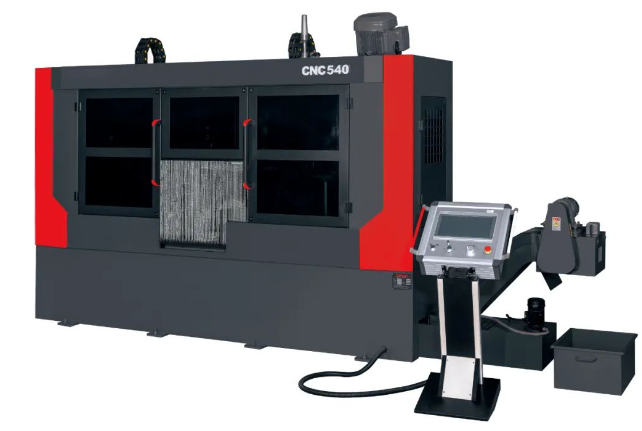

| Picture |  |
||
| Cutting capacity | round：Ø540 mm
square：540Wx 540H mm |
Band saw blade | Size(mm)：54×1.6×7620
Linear speed(m/min)：25-120(inverter) Tension type：Hydraulic |
| Motor power | Main motor(kW)：15(4P)
Hydraulic motor(kW)：3.75 Cooling pump(kW)：0.55 Feeding servo(kW)：1.8 Feed servo(kW)：1.3 Chip conveyor(kW)：0.2 |
Control type | PLC+touchscreen+pushbutton |
| Main drive type | Direct coupled gear reducer | Feeding method | Servo (AI Intelligent) + Ammonia Balance Cylinder |
| Work clamping method | Hydraulic Vise | Chip removal method | Chain chip conveyor |
| Feeding method | Servo feed | Single feeding stroke(mm) | 700 |
| Table height(mm) | About 820 | Dimensions (LxWxH)(mm) | 5020X2400X2550 |

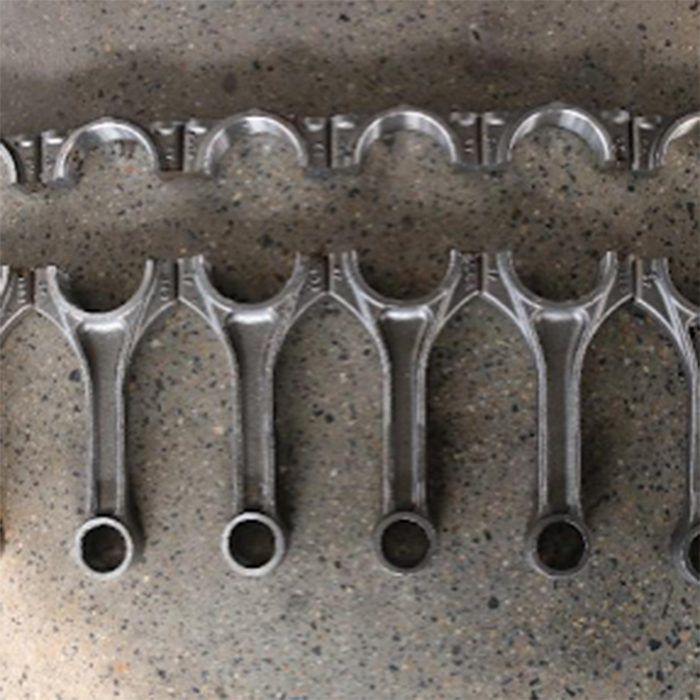

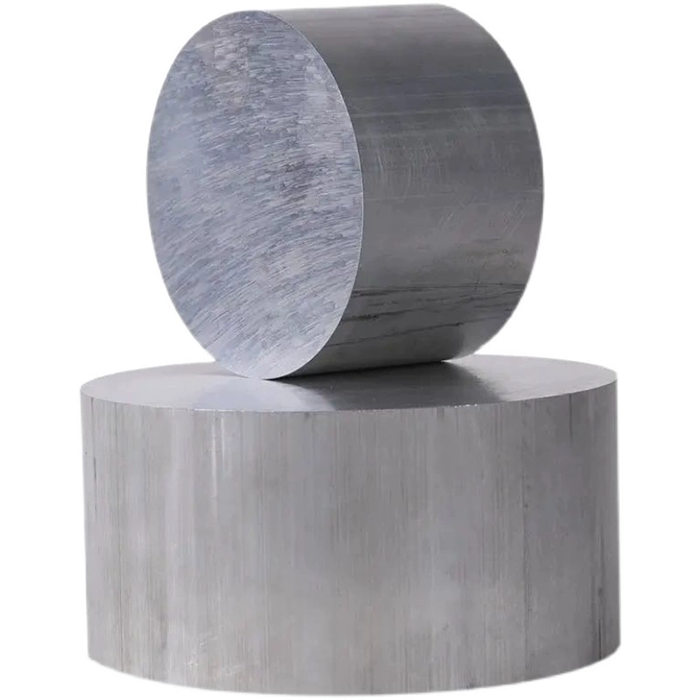

Cutting display
 |
 |
The CNC540 sawmill, with its outstanding performance parameters, scientific and reasonable structural design, intelligent and efficient control system, shows its unique advantages in many fields such as metal processing and profile processing. Whether it is precision manufacturing with strict requirements on sawing accuracy or processing enterprises pursuing efficient mass production, this sawing machine can be a powerful assistant, providing strong support for enterprises to reduce production costs, improve production efficiency and product quality. It is believed that in the future, CNC540 sawmill will continue to shine in the industry and help more enterprises to achieve high-quality development.
Keywords: Sawing machine, Sawing machine for aerospace materials, Machine tools
