Product Name
|

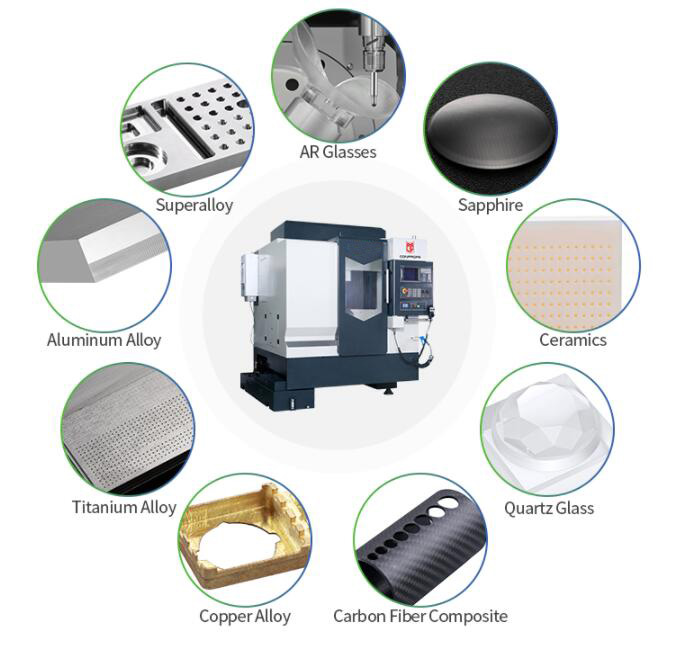

Conprofe High Precision Ultrasonic Machining Center
|
|
Work table
|
Dimension
|
620×560
|
Max.Load
|
300
|
|
Travels
|
Max.Travel in X-/Y-/Z-axis
|
600x500x300mm
|
FeedRate
|
Rapid Traverse in X-/Y-/Z-axis
|
15/15/12m/min
|
Spindle
|
Diameter
|
120mm
|
Power Rating
|
7.5kW
|
|
Max.Speed
|
30000rpm
|
|
Magazine
|
Tool Capacity
|
13Positions
|
Tool Holder Spindle
|
HSK-40E
|
|
Tool Overhang
|
90mm
|
|
Accuracy
|
Positioning Accuracy in X-/Y-/Z-axis
|
0.005mm
|
Repeatability Accuracy in X-/Y-IZ-axis
|
0.003mm
|
|
Power and Dimensions
|
PowerSupply
|
3-phase AC, 380V/50Hz/25A
|
Weight
|
5000kg
|
|
Required Compressed Air Connection
|
≥0.6MPa
|
|
Dimensions(X/Y/Z)
|
2160 × 2090 × 2390mm
|
