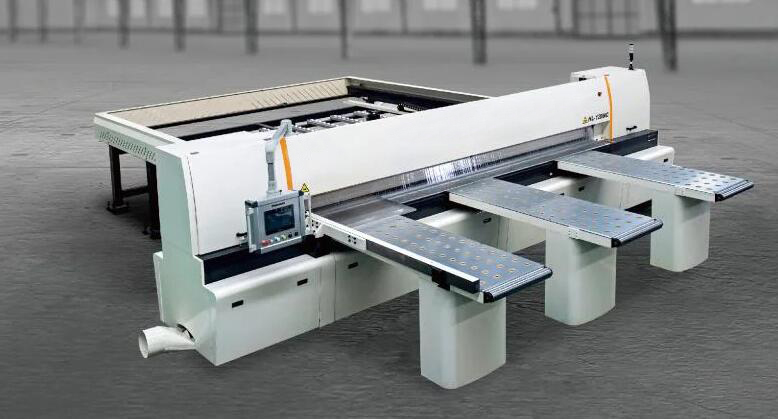

CNC high-speed circular sawing machine is a special equipment for producing aluminum alloy square bars and cutting them into blocks. This equipment is mainly used for sawing and processing of aluminum alloy sheets, and has the remarkable characteristics of high reliability, high sawing efficiency, low operating cost, complete safety protection functions, and sufficient static and dynamic rigidity. The most advanced technology is adopted to ensure the good dynamic quality of the system. The machine tool is easy to use, operate and maintain, with beautiful appearance and excellent after-sales service.
Design concept and function:
1. The mechanical frame adopts heavy-duty structure, and the equipment runs smoothly.
2. The sawing foundation is in a horizontal suspension structure; the device is provided with double-row roller linear slide rails.
3. During the walking process of sawing foundation, set grinding gears, racks and servo motors to ensure the consistency of sawing speed.
4. The overall design of the pressing cover ensures that the material will not slide during the sawing process.
5. Reserve straws; set up high-power dust collectors.
6. Except for the floating roller, all other contents on the working platform are made of chrome-plated steel plate to avoid material scratches.
7. The hanging feeding jaws have the function of pneumatic drive clamping.
8. The drive of the feeding mechanism adopts the structure of servo motor + rack and pinion.
9. The sawing foundation adopts hydraulic lifting; the rising height of the saw blade is determined according to the thickness of the plate.
Execution standards for design and manufacture:
a. The design and manufacture of the equipment conform to the ISO: 9001 international standard.
b. The design and manufacture of the equipment comply with CE standard certification.
c. The measurement unit of all parts of the equipment and various instruments adopts the International Unit (SI) standard; the main parts of the equipment (including mechanical, electrical and electronic equipment) have reliable safety protection to prevent inaccurate operation or accidental damage to the machine .
| Model | HL-12BNC | |
|
Sawing capability |
Cutting length | 3800mm |
| Cutting width | 3800mm | |
| Maximum cutting height | 160mm | |
| Maximum exposed height of saw blade | 165mm | |
| Main saw blade | Main saw motor | 15KW |
| Diameter of main saw | Ø550mm | |
| Diameter of main saw shaft core | Ø 38mm | |
| Speed of main saw | 3900 r/min | |
| Saw seat | Travel frequency conversion motor | AC 2.2KW |
| Forward speed | Fastest 10m/min (load) | |
| Backward speed | Fastest 22 m/min | |
| Automatic feeding engine | AC 3KW | |
| Utilization pressure | ≥5.0 kg/cm2 | |
| Distance between working bench and floor | 1130 mm | |
| Appearance size (L×W×H) of machine tool | 7100×7700×1980 | |
| Voltage | ||
