CNC Lathes: Differences between Slant – bed and Flat – bed

In modern manufacturing, CNC lathes are key equipment. The quality of their performance directly impacts production efficiency and product quality. Among them, the Slant Bed CNC lathe, with its unique design and outstanding performance, occupies an important position in the field of precision machining.

Structural Features and Working Principle of the Slant Bed CNC Lathe

The bed of the Slant Bed CNC lathe has a distinctive design. The plane where the two guideways are located intersects the horizontal plane at a certain angle. Common angles include 30°, 45°, 60°, and 75°. This inclined structure forms a right – angled triangle for the bed. With the same width of guideways, the X – axis carriage is longer. Moreover, the slant – bed has a relatively large cross – sectional area, which endows the machine tool with stronger bending and torsion resistance, enabling it to withstand greater cutting forces.

Its working principle is based on the precise control of the numerical control system. By inputting instructions through programming, parameters such as the spindle rotation, tool movement, and feed rate of the lathe are precisely controlled to achieve precise cutting of workpieces. During the machining process, the workpiece is firmly clamped on the inclined bed, and the tool performs rapid and accurate cutting operations through the turret.

Comparison of Advantages and Disadvantages between Slant – Bed CNC Lathes and Flat – Bed CNC Lathes

Comparison Items	Slant-bed CNC lathe	Flat-bed CNC lathe
Cutting rigidity	Large cross-sectional area, strong bending and torsion resistance, cutting force is basically the same as the direction of gravity of the workpiece, spindle running smoothly, not easy to cause cutting vibration.	Cross-sectional area is relatively small, the cutting force generated by the tool and the workpiece is 90° to the gravity of the workpiece, which is easy to cause vibration.
Machining accuracy	The layout of the X-direction ballscrew directly acts on the axial force, and the backlash is almost zero, with high repetitive positioning accuracy and inherent accuracy advantage.	The X-direction screw is not affected by axial gravity, the gap cannot be eliminated directly, and the repeat positioning accuracy is relatively low.
Chip removal capacity	Gravity effect is favorable for chip removal, not easy to entangle the tool, can be matched with the center screw and guide rail protection sheet metal, to avoid chip accumulation, generally configured with automatic chip conveyor.	The structure is not favorable for adding automatic chip conveyor
Automatic production	Increase the number of tool positions, can be equipped with automatic chip conveyor, additional milling power head, automatic feeding machine or robot, etc. can realize efficient automated production.	Disadvantageous in automated production
Manufacturing cost	Complex structure, difficult to manufacture, relatively high cost	Relatively simple structure, low manufacturing cost
Space Occupancy	It can effectively utilize space, and the plane occupies a small place.	Relatively large surface space

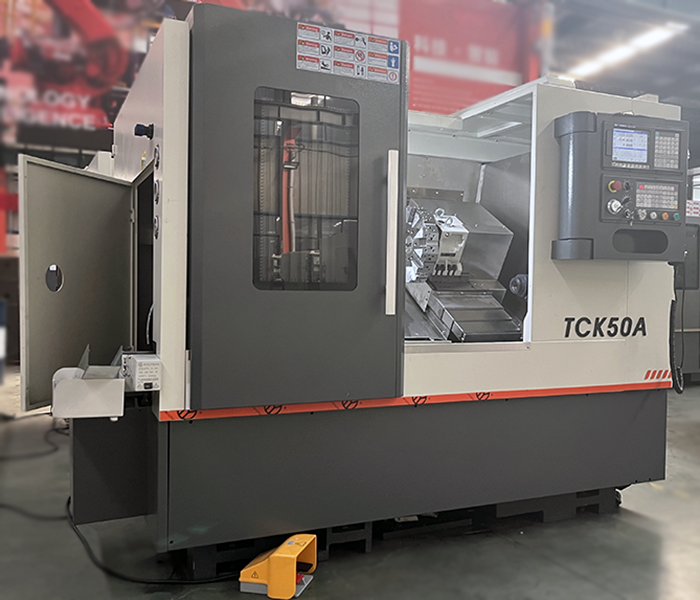

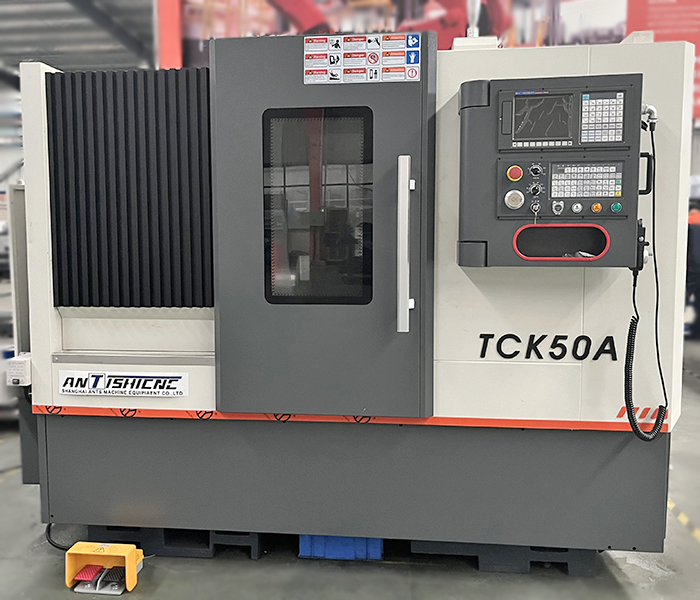

Shanghai ANTISHICNC Slant Bed CNC Lathe TCK50A/500

Features of TCK50A/500

Overall Structural Design: It adopts a 45° integral slant – bed structure, paired with high – precision pre – loaded Taiwanese linear roller guides. This design not only ensures high position accuracy of the machine tool but also enables smooth chip removal, making it highly suitable for high – speed and high – precision machining. The overall machine has a compact structure and an aesthetically pleasing appearance.

Spindle Performance: It is equipped with a high – precision spindle bearing set. The spindle undergoes precise assembly and dynamic balance testing to ensure high precision, low noise, and strong rigidity, thus capable of meeting various complex processing requirements.

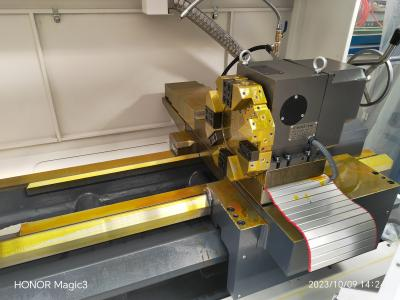

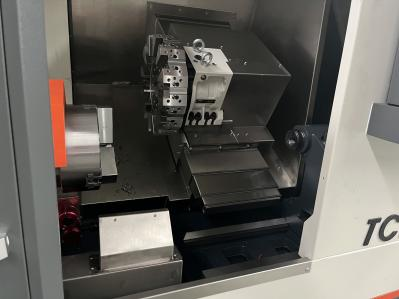

Turret System:The selected turret features a fast tool – changing speed and high positioning accuracy, significantly improving the processing efficiency.

Feeding System: For the X and Z directions, servo motors are used to directly connect with the lead screws through high – torque and low – inertia elastic couplings, effectively ensuring positioning accuracy and repeat positioning accuracy.

Lubrication System:It employs an advanced centralized automatic lubrication device, which conducts automatic intermittent lubrication at fixed intervals and in fixed quantities. This system operates stably and reliably, effectively extending the service life of the machine tool.

Chuck and Tailstock: A domestic hydraulic chuck is adopted, which provides a large and stable clamping force. The hydraulic tailstock uses a hydraulic adjustment and locking method, and the hydraulic piston is used to press the workpiece for processing. This operation is convenient and can guarantee the processing accuracy.

Parameters of the TCK50A/500

 The slant – bed CNC lathe TCK50A/500, with its advanced design and reliable performance, will provide strong support for precision machining in the manufacturing industry.

If you need a slant – bed CNC lathe with high positioning accuracy, you are welcome to consult Shanghai ANTISHICNC. We have rich experience in the manufacturing and application of CNC lathes and can provide you with professional technical support.
