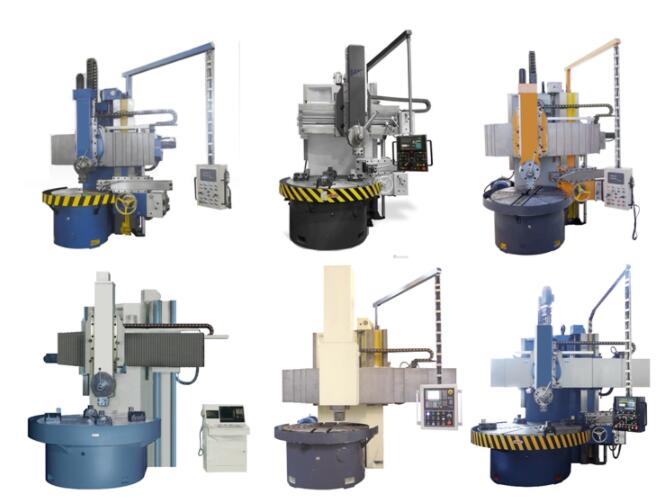

Single column vertical lathe specification data | Unit | C5112 | C5116 | C5120 | C5123 | C5125 | C5126 | |
Max.cutting diameter of vertical tool post | mm | 1250 | 1600 | 2000 | 2300 | 2500 | 2600 | |
Max.cutting diameter of side tool post | mm | 1100 | 1400 | 1800 | 2000 | 2200 | 2400 | |
Max.cutting height | mm | 1000 | 1000 | 1250 | 1250 | 1250 | 1250 | |
Working table | diameter | mm | 1000 | 1400 | 1800 | 2000 | 2250 | 2250 |
max. loading | t | 3.2 | 5 | 8 | 8 | 10 | 10 | |
speed range | rpm | 6.3-200 | 5-160 | 3.2-100 | 3.2-100 | 2-63 | 2-63 | |
step range | step | 16 | 16 | 16 | 16 | 16 | 16 | |
max. torque | kn. m | 17.5 | 25 | 32 | 32 | 40 | 45 | |
Vertical tool post | feeding rang | mm/min | 0.8-86 | 0.8-86 | 0.8-86 | 0.8-86 | 0.8-86 | 0.8-86 |
feed steps | step | 12 | 12 | 12 | 12 | 12 | 12 | |
cutting force | kn | 20 | 25 | 25 | 25 | 25 | 30 | |
vertical travel | mm | 650 | 800 | 800 | 800 | 1200 | 1000 | |
horizontal travel | mm | 700 | 915 | 1200 | 1300 | 1400 | 1500 | |
swing angle | ° | ±30 | ±30 | ±30 | ±30 | ±30 | ±30 | |
Cross beam travel | mm | 650 | 650 | 850 | 1050 | 1250 | 1250 | |
Main motor | kw | 22 | 30 | 30 | 30 | 37 | 37 | |
Machine weight | t | 8.5 | 12.4 | 17 | 18 | 23 | 26 | |
Overall dimension(L*W*H) | mm | 2360*2280* 2800 |
2830*2670* 3010 |
3200*2800* 3250 |
3210*2850* 3300 |
3300*4000* 3500 |
3300*4000* 3500 |
