CS-350 Circular Sawing Machine

Equipment Introduction

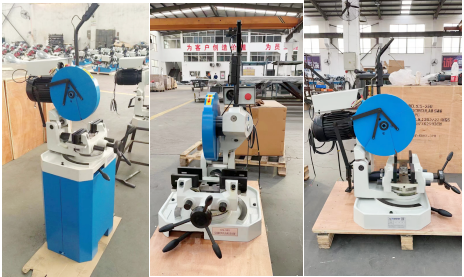

The ANTISHI manual cold saw CS-350 with a 350 mm circular saw blade that runs slow speed in conjunction with a coolant system. These cold saws are designed to cut at 90 º, or mitres up to 60 º in either left or right side of the material simply by releasing the lever located at front of machine.The cooling system can prolong the service life of saw blade and improve the precision of the workpiece.The safety hood of saw blade opens or closes according to the cutting needs, making it safety.With HSS saw blade of our circular saw is highly efficient and durable.

Model CS-350
Max. blade size 350mm (13.8″)
Cut circular @90° 120mm (4.7″)
Cut rectangular @90° 140×100 mm (5.5″x4″)
Cut circular @45° 105mm (4.1″)
Cut rectangular @45° 100x100mm (4″x4″)
Blade Speed @50HZ 18, 36 rpm
Vice opening 145mm (5.7″)
Motor power 750W 1HP/1.3kW 1.7HP (3PH)

1.1kW 1.5HP (1PH)

Drive Gear
Packing size 98x62x172 cm (body)
N.W./G.W. 236/270 kg
