Examining the Principles of Machining Path Planning for New CNC Lathes from a CNC Programming Perspective

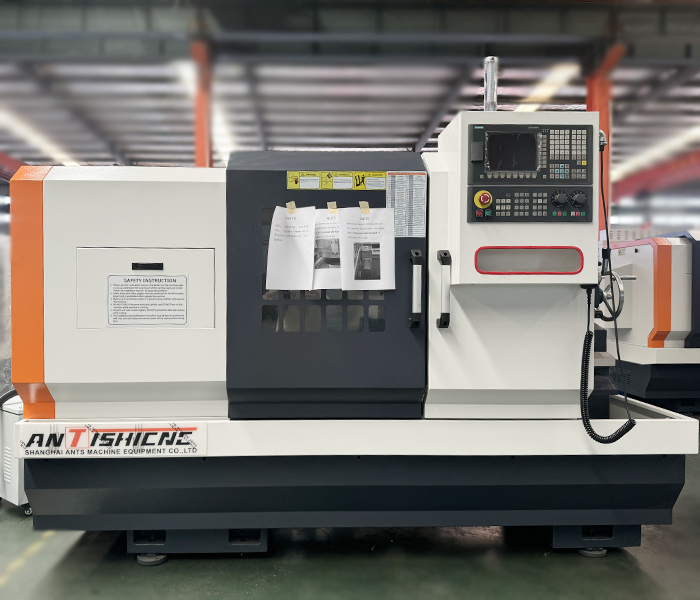

Machining path planning for new CNC lathes is a core component of CNC programming. Its principles revolve around the three key objectives of efficiency, precision, and safety. Through code logic, process requirements are translated into executable motion trajectories for the machine tool. From a programming perspective, this process requires a balanced synergy between geometric features, tool characteristics, and motion parameters to form a scientific path logic.

Geometric mapping of the machining path is the foundation of planning. During programming, the workpiece’s 2D or 3D features (such as cylinders, cones, and threads) are converted into tool motion coordinates. G-code instructions define the starting and ending points and interpolation methods. For example, when machining stepped shafts, the programmer must plan radial feed paths in descending order of diameter while maintaining a safe distance from the workpiece’s outer diameter during axial retraction to avoid tool interference. The rationality of this geometric path directly determines the smooth execution of machining and is a prerequisite for subsequent optimization.

Efficiency optimization is reflected in the design of a continuous path. Modern CNC lathes support multi-axis linkage and rapid traverse (G00 command). This reduces idle travel and tool changes during programming. This is achieved by combining roughing and finishing operations for the same diameter into a continuous path to avoid repeated positioning. Tool radius compensation (G41/G42) allows roughing and finishing operations to share a common base path, adjusting the cutting depth solely based on the compensation value. For complex contours, helical feeds are used instead of multiple layered cuts to reduce tool entry and exit times. These designs are based on the “shortest path” principle, shortening machining cycles while maintaining accuracy.

Precision control relies on path smoothness and parameter matching. When programming, the feed mode should be selected based on the workpiece material and accuracy requirements. For finishing, circular interpolation (G02/G03) is used instead of broken line approximation to avoid vibration caused by sudden speed changes at corners. For thin-walled parts, reducing the feed rate (F value) and depth of cut controls cutting forces during path execution to prevent workpiece deformation. Furthermore, the “look-ahead control” feature supported by new CNC systems requires pre-programming to define path segment lengths and connection methods. This allows the machine tool to anticipate subsequent motion and optimize acceleration and deceleration, reducing dimensional deviations caused by inertia.

Extending tool life is an implicit goal of path planning. During programming, the cutting sequence must be rationally arranged: rigid areas must be machined first, followed by areas susceptible to deformation. Roughing paths should be kept as far away from the workpiece reference plane as possible to avoid interference between the tool and the fixture. For high-speed tools, path design ensures that the tool reaches a stable speed before entering the workpiece to reduce impact wear. While these details are not directly reflected in the path geometry, they indirectly improve machining stability by reducing tool load fluctuations.

From a CNC programming perspective, path planning for new CNC lathes is an organic integration of geometric logic, process parameters, and machine tool performance. Its essence is to achieve an “efficient, precise, and safe” cutting process through coded instructions. This principle has become a core criterion for measuring programming quality.
