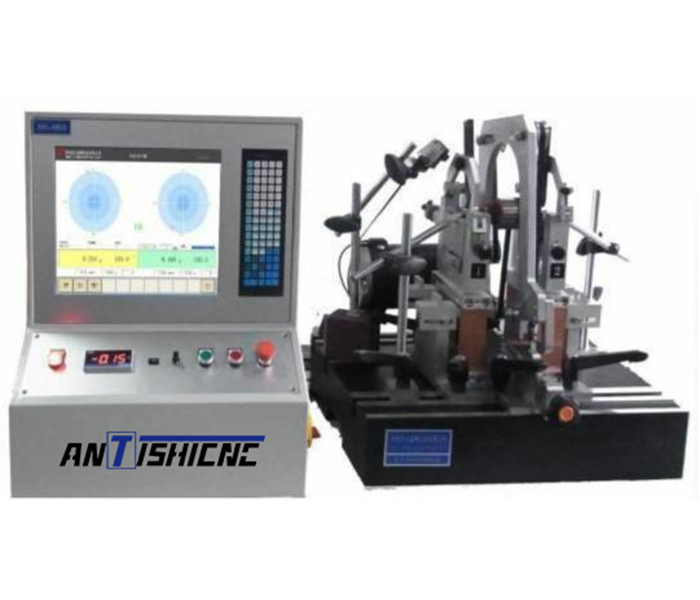

Model：AH-4800
Technical specifications
| Specifications | AH-4800 |
| Speed | ≤12000rpm |
| Test weight Range (kg) | 0.1-5 |
| Diameter Range (mm) | Φ 20- 200 |
| Distance Between Supports (mm) | 60~320 |
| Roller Shaft Neck Diameter Range (mm) | Ø6~ Ø25 |
| Belt-Driven Part Diameter Range (mm) | Ø20~ Ø120 |
| Unbalance Reduction Rate | ≥95% |
| Min Achievable Residual Unbalance (g.mm/kg) | ≤0 .3 |
| High-Speed Double-Sided Dynamic Balance | Complies with ISO 1940 standard, G1 |
| Unbalance Detection | Accelerometer |
| Unbalance Angle Detection | laser sensor |
| Equipment Power Supply | 220V single phase |
| Balancing Function | Double-sided dynamic balancing |
| Operating Interface | windows |
| Measurement System | XH-8600 |
| Measurement Mounting Method | Customized by product |
| Max Measurement Accuracy (mg) | ±1 |
| Average Test Cycle | ≤ 15S |
| External Dimensions (mm) | 500*450*760 |
| Machine Gross Weight (kg) | 80 |
| Package size | 500*400*670mm 50kg
700*500*500 45kg |
Product Description
The AH4800 high-precision double-sided soft-support balancing machine is a balancing machine that measures through servo motor belt transmission. This machine is mainly used for dynamic balance testing of plastic and aluminum alloy fan blades and rotors. This machine is equipped with an industrial computer measurement system and has strong versatility. The data acquisition system uses integrated circuits and has strong anti-interference, high stability, and accurate measurement. The display is intuitive and the operation is easy to understand. The measurement sensor uses an acceleration sensor as the signal source, which has the characteristics of small size, good linearity, maintenance-free,long life and other characteristics.
The high-speed software measurement system is independently developed by our company and is equipped with various dynamic balancing machines of the company. After years of user feedback and continuous upgrading and optimization, so far, thousands of products are serving the majority of users and have won the trust of users. unanimously praised. Its main functions include balance test system, balance data storage and printing, and data statistics after qualification determination.
The main components include dynamic balance measurement sensors, industrial computers, testing software, etc. It has a self-test function to meet the accuracy requirements of dynamic balance testing; an industrial computer is used to process measurement output and record test results; it has a friendly interface and is easy to operate.
