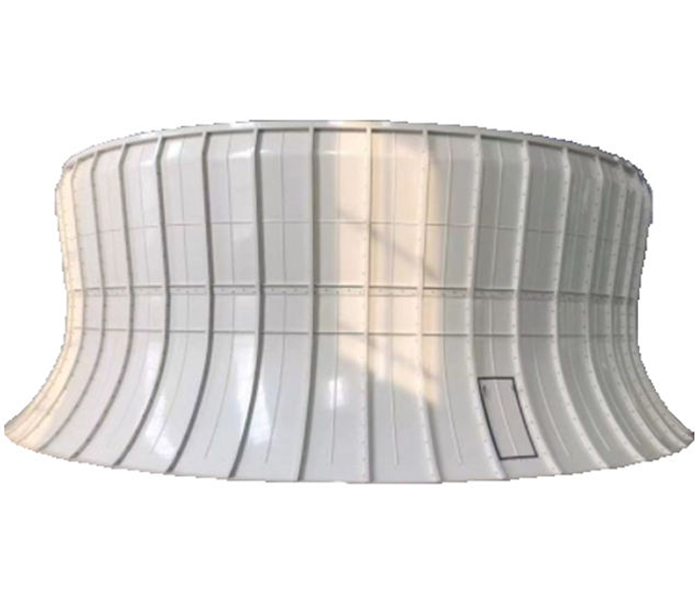

The FRP cooling tower duct is a ventilation device used in cooling towers. Its main function is to guide air through the cooling tower to promote heat dissipation. It is usually made of glass fiber and resin, and is lightweight, durable, and corrosion-resistant. It is generally produced by a hydraulic press machine. So how to make an FRP cooling tower duct with a hydraulic press machine?
Hydraulic press machine molded glass fiber reinforced plastic cooling tower duct steps:
1. Prepare raw materials (resin, glass cloth, gel coat, curing agent, accelerator);
2. mould preparation: find the corresponding model of FRP septic tank mould, install the mould on the upper side of 2000 tons three beams and four columns hydraulic press machine, warm up the mould to be used;
3. Prepare SMC sheet, and slice and weigh the SMC sheet for use;
4. processing fiberglass reinforced plastic septic tank: wait for the mold to warm up to the specified temperature, put all the weighed SMC sheet into the septic tank mold for heating, melting, curing, and then lift up the mold and take out the semi-finished septic tank after reaching the specified time;
5. Deburring: remove the excess burrs to prevent accidental injury when handling.
6.After the finished product is molded, it will be put into the warehouse and wait for shipment.
The FRP cooling tower duct forming hydraulic press machine can be divided into three-beam four-column types and frame types according to the structure. According to the specifications of the molded FRP duct, commonly used ones include 1500-ton hydraulic press machine, 1800-ton hydraulic press machine, 2000-ton hydraulic press machine, 3000-ton hydraulic press machine, 4000-ton hydraulic press machine, etc.

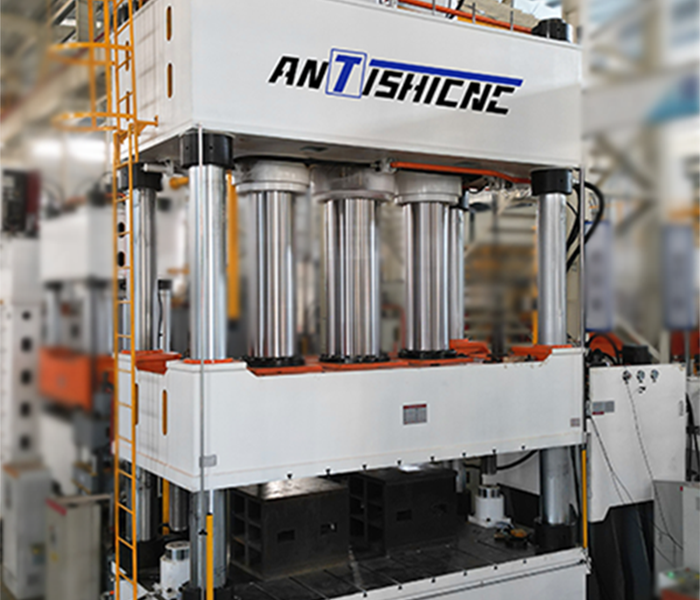

Shanghai ANTISHICNC is a professional manufacturer of FRP cooling tower wind pipe forming hydraulic press machine with customized service. The hydraulic press machine for forming wind pipe of FRP cooling tower produced by Shanghai ANTISHICNC is with large working table and even force. Equipped with servo control system, each cylinder synchronization precision is high. Equipment temperature, curing time, pressure, speed are in line with the process characteristics of SMC / BMC materials; PLC control, easy to operate, adjustable working parameters; mainly used for SMC/BMC sheet molding plastic molding pressing process, to meet the requirements of the pressing process, well received by customers. For example, the following 2000 tons of three-beam four-column hydraulic press machine.
Features of 2000 ton FRP cooling tower air duct forming hydraulic press machine:
1.The hydraulic control adopts a cartridge valve integrated system, which has stable operation, long service life, and small hydraulic shock and reduces the connection pipelines and leakage points.
2.The molded FRP cooling tower wind duct hydraulic press machineis designed by a computer optimization structure with a three-beam and four-column structure, which is simple, economical, and applicable.
3.Independent electrical control system, stable operation, intuitive operation, and convenient maintenance.
4.Through the operation panel selection, two operation processes of fixed stroke and fixed pressure can be realized, and it has functions such as pressure maintenance and long-term operation.
5.The working pressure of the slider and the formation range of no-load fast down and slow working can be adjusted according to work needs. The electrical control system works steadily, the action is intuitive, and the maintenance is convenient.
6.The power mechanism and the electrical system are arranged separately and centrally controlled by buttons, which can realize two operation modes adjustment and semi-automatic (manual injection or automatic injection).
7.The working pressure, pressing speed, high-pressure downward and no-load rapid downward, and ejection stroke of the FRP cooling tower wind duct-forming hydraulic press machinecan be adjusted according to the pressing process requirements of different products by pressure sensors, micro-speed regulating valves, inductive sensors, displacement sensors, etc. The molded FRP cooling tower wind duct hydraulic press machine can adjust the force, time, and stroke parameters on the touch screen through PLC to ensure the quality and height consistency of the product.
8.It adopts a four-column cylinder slider structure, equipped with a cylinder-driven fast-moving workbench, and the ejection device placed outside the four columns cooperates with the mobile workbench to realize mold change and product removal outside the machine.
| Description | YQ32-2000T |
| Maximum liquid pressure (Mpa) | 25 |
| Slider stroke (mm) | 900 |
| Maximum opening height (mm) | 1600 |
| Table size (mm) | 2000*2000 |
| Down speed of empty range (mm/S) | 120 |
| Working speed (mm/S) | 5-10 |
| Return speed (mm/S) | 85 |
| Motor power (kw) | 45*2 |
| Oil pump displacement (ml/R) | 250*2 |
| Jacking force (t) | 250 |
| Ejection stroke (mm) | 450 |
| Approximate weight (t) | 78 |
Remark: The above parameters are for reference only, the actual parameters of the machine please refer to the technical program of Shanghai ANTISHICNC.
If you have FRP cooling tower air duct forming processing needs too, welcome to consult Shanghai ANTS Machine Equipment co., ltd. We have rich experience in manufacturing and using hydraulic press machine machines and can provide you with professional technical support.
