We recently received an inquiry from a client in Kazakhstan regarding the purchase of a guillotine shearing machine. The client specializes in metal sheet cutting and processing; for their carbon steel blanking operations, they have specified key equipment parameters: a working length of 2,500 mm, a maximum carbon steel cutting thickness of 5 mm, and an E21 digital display control system. As they are evaluating equipment from various international brands, they seek a solution that balances stability with cost-effectiveness and have requested a comprehensive technical specifications sheet along with a competitive price quotation.

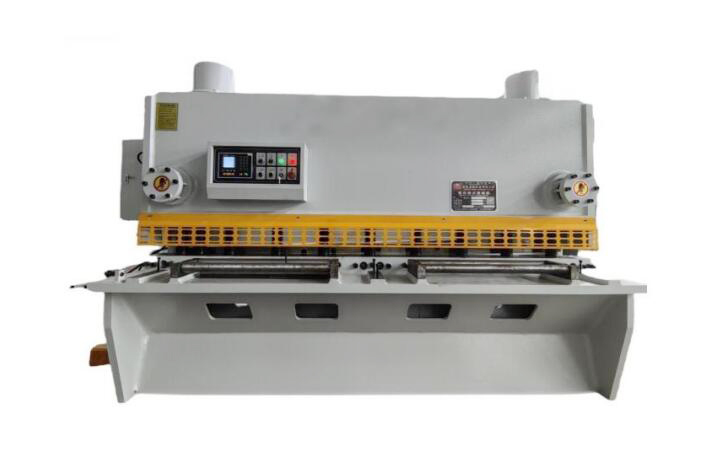

Based on the client’s processing requirements and procurement budget, we have selected this guillotine shear as the optimal cost-effective solution, fully meeting all the client’s essential specifications. With an effective cutting length of 2500mm, the machine is capable of reliably shearing 5mm-thick Q235 carbon steel plates, making it well-suited for the standard plate-cutting needs of local factories in Kazakhstan; it is designed to operate on the standard 380V/3-phase/50Hz industrial power supply.
Core Mechanical Hardware Specifications
- Shearing Performance: Maximum cutting thickness of 12mm (Q235) and maximum cutting width of 2500mm; shearing angle adjustable between 0.5° and 2°; material tensile strength of 450N/mm²; shearing rate of 8–10 strokes/minute, meeting the customer’s requirements for batch cutting of 5mm carbon steel.
- Backgauge and Blades: Maximum backgauge travel of 600mm; blade length of 2600mm; worktable height of 850mm from the floor, designed for ergonomic operation and convenient material loading/unloading.
- Main Motor: Model Y132M-4, 15kW power, 1440 rpm speed; provides ample power for stable shearing operations.
- Overall Dimensions: Machine dimensions (L × W × H) are 3200mm × 1800mm × 2200mm, facilitating workshop layout planning.
- Control System: E21 digital display system; enables precise control of backgauge positioning; features a simple, user-friendly interface with a low learning curve; suitable for fixed-length shearing to meet customer needs.
| Item | Unit | Parameter |
| Max. cutting thickness | mm | 12mm (Q235) |
| Max. cutting width | mm | 2500 |
| Cutting angle | ° | 0.5-2 |
| Tensile strength of sheet material | N/mm² | 450 |
| Cutting strokes | min⁻¹ | 8-10 |
| Maximum travel of backgauge | mm | 600 |
| Blade length | mm | 2600 |
| Table height from floor | mm | 850 |
| Main motor model | / | Y132M-4 |
| Main motor power | kW | 15 |
| Main motor speed | r/min | 1440 |
| Overall dimension (L × W × H) | mm | 3200×1800×2200 |
| Control system | / | E21 Digital Display System |
Key Advantages of the Solution
- Performance-Matched, Stable Cutting: The machine features a 2.5-meter effective cutting length and reliably shears 5mm carbon steel. Its optimized shear angle design ensures smooth cut edges and minimizes plate deformation, making it ideal for the customer’s standard plate cutting and rough processing needs.
- E21 Digital Display System – Economical and Practical: The E21 digital control system precisely manages the backgauge position; simply input the target dimension for automatic positioning. This reduces manual measurement errors, simplifies operation, and offers excellent cost-effectiveness, aligning with the customer’s budget.
- Power Grid Compatibility: The electrical system is designed to 380V-3-50Hz standards, making it compatible with local industrial power supplies in Kazakhstan without the need for costly transformer modifications.
- Robust Machine Structure: The machine body offers high rigidity, effectively dampening cutting vibrations and ensuring dimensional stability during processing—ideal for long-term, continuous production.
