Surface grinders, as precision machining equipment, are widely used in industries with stringent requirements for accuracy and surface quality.
Surface grinders are mainly divided into two categories based on the shape of their worktable: ordinary surface grinders (usually rectangular table surface grinders) and rotary table surface grinders.
So, how do we choose between these two types of surface grinders for precision surface grinding? We can mainly determine this from the following aspects:
- Workpiece Types:

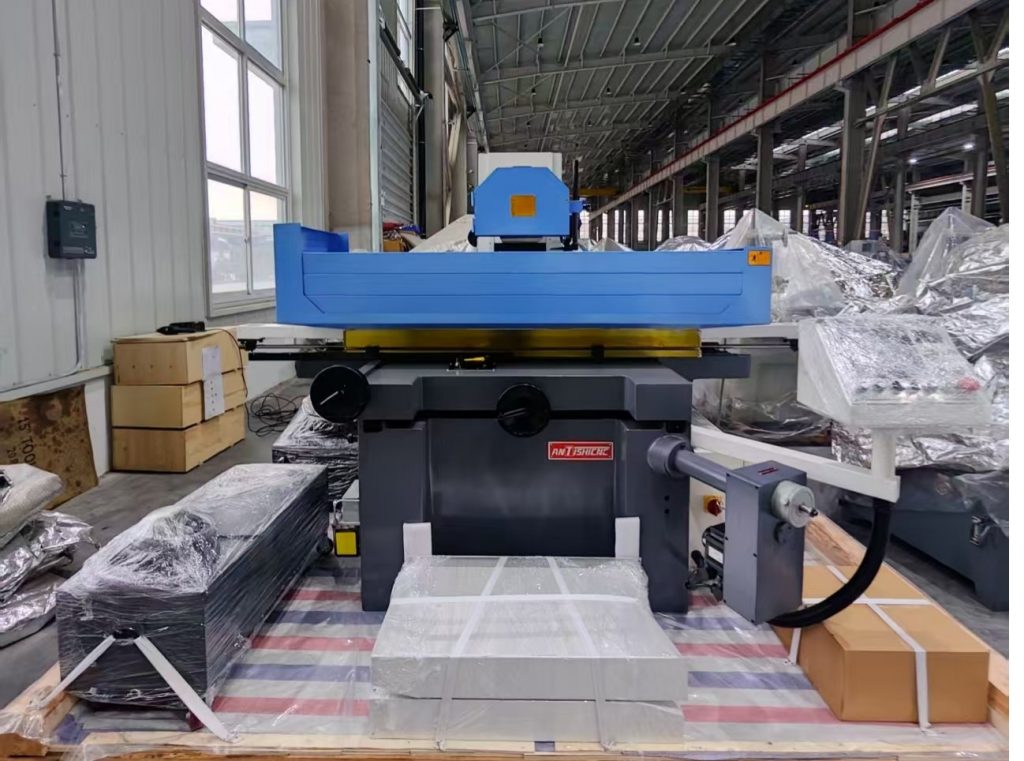

Ordinary Surface Grinding Machines: Suitable for machining long, narrow, or single-piece or small-batch workpieces. Examples include: guide rails, flat plates, templates, gauge blocks, etc.
Rotary Table Surface Grinding Machines: Suitable for machining round, annular, or small parts, especially suitable for mass production. Examples include: bearing rings, piston rings, valve plates, saw blades, gear end faces, etc.
- Production Efficiency and Automation:
Ordinary Surface Grinding Machines: Relatively low processing efficiency. This is because the table reciprocates to one end and then needs to reverse direction, resulting in idle strokes. While automation is possible, the structure and cycle time are generally not as smooth as rotary table grinding machines.
Rotary Table Surface Grinding Machines: Extremely high processing efficiency. Due to their continuous rotation, the operator can load and unload workpieces on one side of the table while grinding occurs on the other, enabling almost uninterrupted assembly line operations. They are very easy to integrate with automatic loading and unloading devices for automated production.
- Machining Accuracy and Thermal Deformation:
Ordinary Surface Grinding Machines: Offer more flexible machining accuracy control, ensuring extremely high flatness and parallelism through precise reciprocating grinding and dressing. They also have relatively better heat dissipation, making them more suitable for precision and ultra-precision grinding.
Rotary Table Surface Grinding Machines: Provide smooth, uniform grinding due to the continuous, uniform rotation of the workpiece, resulting in good surface quality. However, the concentrated heat on the workpiece during machining, and the potential for uneven expansion of the rotary table itself (leading to concave or convex centers), necessitate high flatness accuracy control and excellent cooling.
- Application Scenarios:
Ordinary Surface Grinding Machines: Suitable for processing single-piece, small-batch, and multi-shaped workpieces, or workpieces requiring extremely high flatness, parallelism, and dimensional accuracy. Typical scenarios: mold manufacturing, tool shops, repair shops, precision machining.
Rotary Table Surface Grinding Machines: Suitable for processing large batches of regularly shaped (circular, ring-shaped, sheet-like) workpieces, and where high production cycle time is required. Typical industries: automotive parts, bearings, cutting tools, standard parts manufacturing.
- Machine Investment Budget
Generally, ordinary surface grinders are cheaper than rotary surface grinders. The main reason rotary surface grinders are more expensive is due to their complex and precise rotary worktable.
In conclusion, when purchasing a surface grinder, it’s essential to comprehensively consider the type of workpiece you need to process, production volume requirements, accuracy requirements, and your budget to select the most suitable machine.
