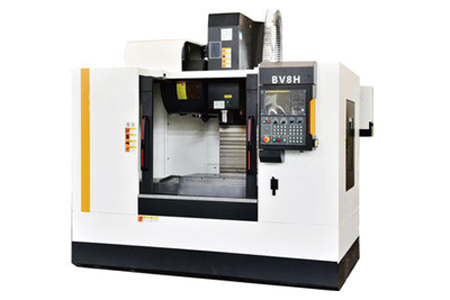

Vertical machining center BV8H adopts linear guides in X Y and Z axis, no counterweight in Z axis. It features high cost-performance, light in weight, high speed, high accuracy and stability.
Performance
1) Linear guides in X Y and Z axis, high speed, high accuracy and stability;
2) Disk type magazine BT40X24T for quick tool changes and convenient operation;
3) Beautiful and concise in full-closed design and small is footprint;
4) Standard equipment of 8000r/min belt spindle, 12000r/min direct spindle for high speed machining is optional.
Standard Equipment
FANUC 0i MF(5) control
Belt type spindle 8000r/min made in Taiwan
Disk type magazine BT40×24 made in Taiwan
Linear guides in X Y and Z
Ball screws made in Taiwan
Air-conditioner for electric cabinet
Tri-color patrol light
Portable electronic handwheel
Optional Equipment
FANUC 0i MF(1) or other controls
High speed direct spindle12000r/min made in Taiwan
Spindle oil cooler
Other type of magazine BT40
| Items | Unit | Parameters | |
| Work Table | Dimension (L×W) | mm | 550×1000 |
| T-slots | 5×18×90 | ||
| Max load capacity | kg | 500 | |
| Travel | X-axis travel | mm | 800 |
| Y-axis travel | mm | 550 | |
| Z-axis travel | mm | 550 | |
| Distance of spindle nose to table face | mm | 120-670 | |
| Distance of spindle center to column | mm | 590 | |
| Spindle | Spindle taper hole | BT40 | |
| Spindle motor power | kW | 7.5/11 | |
| Max. spindle speed | r/min | 8000 | |
| Feed | Max. feed rate (X/Y/Z) | mm/min | 10000 |
| Rapid traverse(X/Y/Z) | m/min | 48/48/48 | |
| Others | Power | kVA/V | 20/380 |
| Air pressure | Mpa | 0.6 | |
| Air source | L/min | 250 | |
| Dimensions (L×W×Ｈ) | mm | 2650×2280×2900* | |
| Net Weight | kg | 4500 | |
