Installation of CNC Lathe With Inclined Bed

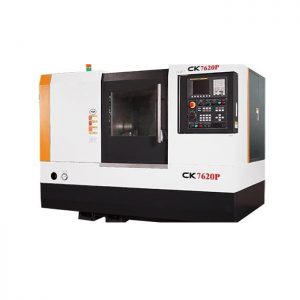

The inclined bed CNC lathe is a two-axis linkage semi-closed-loop full-function CNC lathe. The main shaft is a high-rigidity and high-speed structure. It is driven by a servo motor and can realize infinitely variable speed, constant line speed cutting and high-speed cutting. The optional power tool function and ten hydraulic turrets can meet different needs of processing, and are suitable for the processing of various products and small and medium-sized products; it shows its superiority for complex and high-precision parts.

Installation of CNC lathe with inclined bed

The CNC lathe with inclined bed is placed on the foundation, it should be leveled in a free state, and then the adjusting horns are evenly locked. For ordinary machine tools, the level reading does not exceed 0.04/1000mm, and for high-precision CNC machine tools, the level does not exceed 0.02/1000mm. When measuring the installation accuracy, it should be carried out at a constant temperature, and the measuring tool should be used after a period of constant temperature. When installing the CNC lathe with inclined bed, try to avoid the installation method that causes the forced deformation of the CNC machine tool. When installing the CNC lathe with inclined bed, some parts of the machine should not be removed casually. The disassembly of the parts may lead to important new distribution of the internal stress of the CNC lathe, thus affecting the accuracy of the CNC machine tool.

Preparation before trial operation of CNC lathe with inclined bed

After the geometric accuracy of the inclined bed CNC lathe has passed the inspection, the whole machine needs to be cleaned. Use cotton or silk cloth soaked with cleaning agent, not cotton or gauze. Clean off the anti-rust oil or anti-rust paint applied to protect the guide rail surface and the processing surface of the CNC lathe with inclined bed when it leaves the factory. Clean the dust from the outer surface of the machine tool. Coat each sliding surface and working surface with lubricating oil specified by the machine tool.

Carefully check whether all parts of the CNC lathe with inclined bed are oiled as required, and whether enough coolant is added to the cooling box. Whether the oil of the hydraulic station of the machine tool and the automatic lubricating device has reached the position specified by the oil level indicator.

Check whether the switches and components in the electrical control box are normal, and whether the integrated circuit boards are in place.
Power on and start the centralized lubricating device, so that the lubricating parts and lubricating oil passages are filled with lubricating oil,Do all the preparations before the action of each part of the machine tool.
