Product description

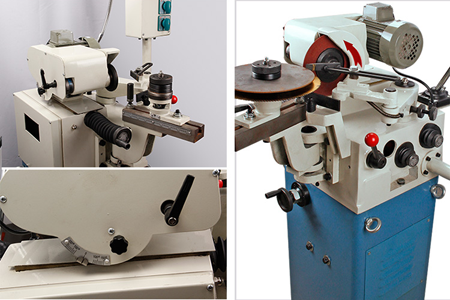

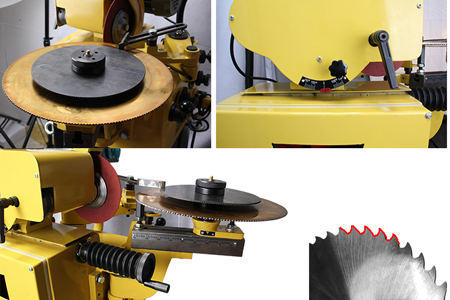

All adjustment bars are carefully arranged to easily adjust the cutting angle, backlash angle, tooth depth, and tooth pitch, so sharp saw blades can be ground quickly and accurately.
Use a continuously variable pulley. Therefore, the required speed can be adjusted with the change of the tooth pitch.
The grinding wheel head can swing up and down, so the chamfer can be easily ground without changing the grinding wheel.
The thickness of the saw blade can be easily adjusted, and there is a gauge to directly see the thickness of the strip.
Adjusted by a tooth height difference control button, the tooth profile with height difference can be ground at the same time.
The transmission part is driven by the grinding wheel motor and the structure to achieve a reliable and safe transmission.
Features

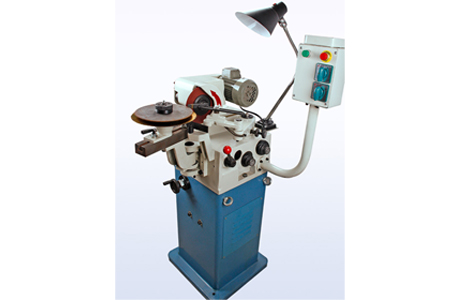

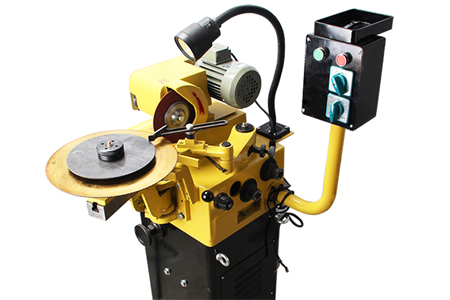

This machine is a new type of saw blade grinding machine, model S450, with high grinding precision, wide angle range, convenient operation and reliable quality.
All adjustment bars are carefully arranged to easily adjust the cutting angle, backlash angle, tooth depth, and tooth pitch, so sharp saw blades can be ground quickly and accurately.
The thickness of the saw blade can be easily adjusted, and there is a gauge to directly see the thickness of the lock bar.
| Model Number | S450 |
| Outer diameter of circular saw blade | ф50-ф450 mm |
| Maximum gear | 25mm |
| Gear depth | 8 mm |
| Cutting angle | 0°-30° |
| Feed rate | 45-180 teeth/min |
| Thickest saw blade thickness | 8 mm |
| Outer diameter of grinding wheel | ф70-ф150 mm |
| Grinding wheel speed | 4500rpm |
| Transmission motor | 1/2HP |
| Grinding wheel motor | 3/4HP |
| Package size | 1320X800X800 mm |
| Weight | 130kg |

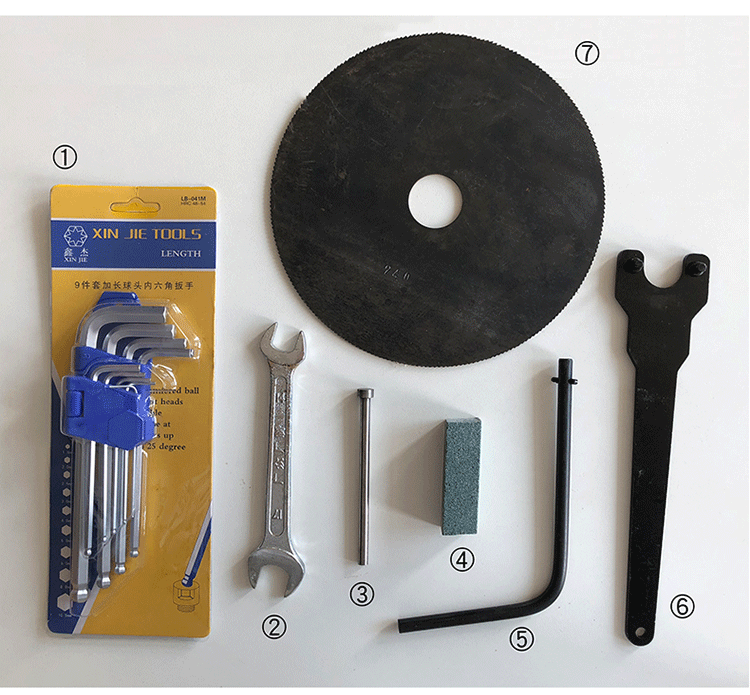

Standard Equipment
1. Allen wrench
2. Open-end wrench
3. Extension rod
4. Whetstone
5. Tooth wrench
6. Special wrench for grinding wheel
7. Template (2 pieces)
