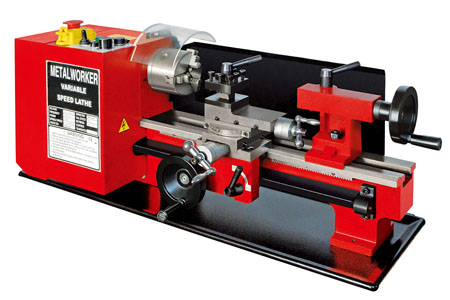

SC2 Mini Lathe
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Swing over bed |
180 mm |
| Distance between centers Model 300 |
300 mm |
| Model 350 |
350 mm |
| Hole through spindle |
20 mm |
| Cross slide travel |
65 mm |
| Compound travel |
55 mm |
| Spindle taper |
MT3 |
| Tailstock taper |
MT2 |
| Spindle speed (variable speed) |
100-2500 ±10% rpm |
| Motor output power(Brushless motor) |
500 W |
| Range of threads Metric version |
0.4-2.0 mm (10 thread pitches) |
| Imperial version |
12-52 TPI (18 thread pitches) |
| Overall dimension Model 300 |
720x300x290 mm |
| Model 350 |
800x290x290 mm |
| Weight(Net/Gross) Model 300 |
44/51 kg |
| Model 350 |
50/55 kg |
| Packing size (LxWxH) Model 300 |
780x420x390 mm |
| Model 350 |
870x360x380 mm |
Product Description:
• Constructed with cast iron giving great rigidity
• Precision Vee bed with ground slide ways
• High torque brushless DC 500W motor
• Fully featured saddle and carriage assembly including powered lead screw
• Supplied with, 80mm 3 jaw chuck,, 2MT center, change wheel set, wrench set
