Model：SE-65/ 1.5M
Prepare by Caro
Part 1: Technical parameter
| Model | SE-65/ 1.5M |
| Bar diameter | ∅ 6-65mm |
| Bar capacity | ∅ 65x10P
Depending on the diameter of the material |

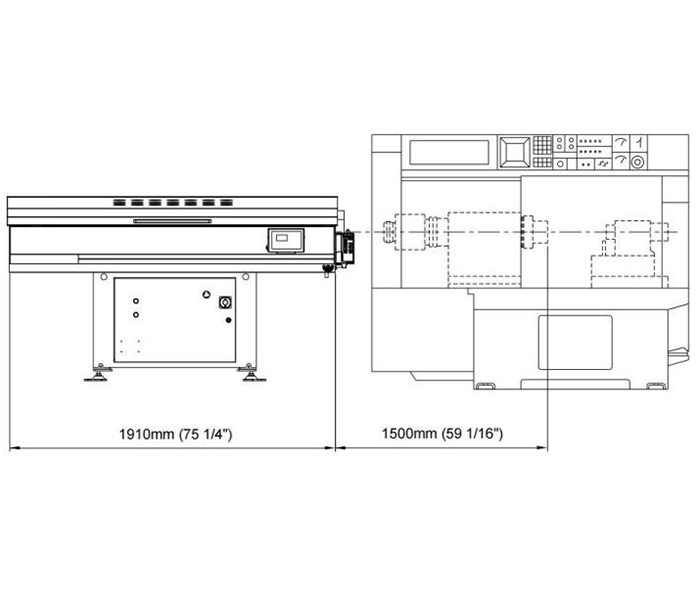

| Bar length | 1500mm(Depending on the total length of the lathe spindle) |
| Bar Demand | The applicable bar material has low requirements and a wide
range, and rough/black leather can also be used |
| Mechanical weight | 1.5M-280Kg |
| Air pressure supply | 6 kgf/cm2 70psi |
| Transmission system | SERVO MOTOR |
| Lubrication system | FK ISO VG68 |
| Power consumption | 450W |
| Power supply | 2/3∅ ×220V/50/60Hz |
| Servo-drive motor | Mitsubishi, Japan |
| Programmable PLC | Mitsubishi, Japan |
| Man-machine interface | Shan Zhiqi |
| Pneumatic element | TWSNS |

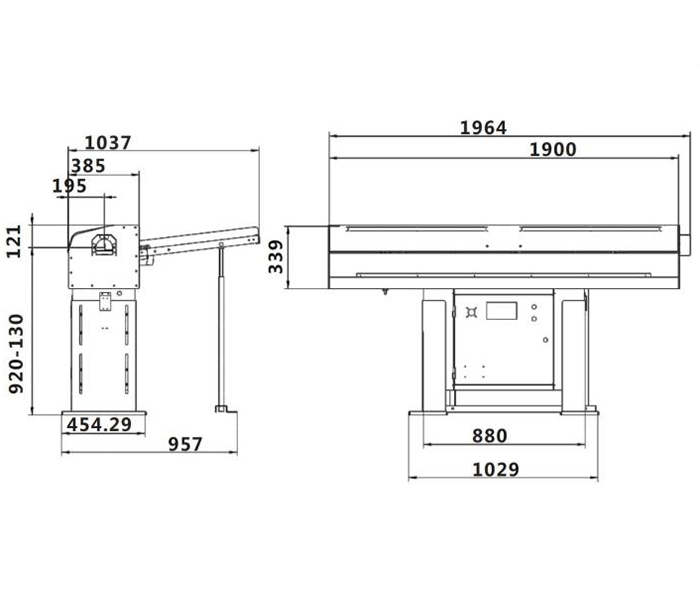

| Floor space | 1964* 1037* 1200 (mm) |
| Consumables | Not have |
Remark:
1.Adopt high rigid structure, durable, fuselage seismic effect is good.
2.Ejection method of residual material (tailings) by pressing rod (push rod).
3.Servo motor feeding runs on linear slide rails, smooth and labor-saving
4.Can automatically recycle and replace materials, maintain uninterrupted machining on CNC lathes, and improve machining efficiency of lath

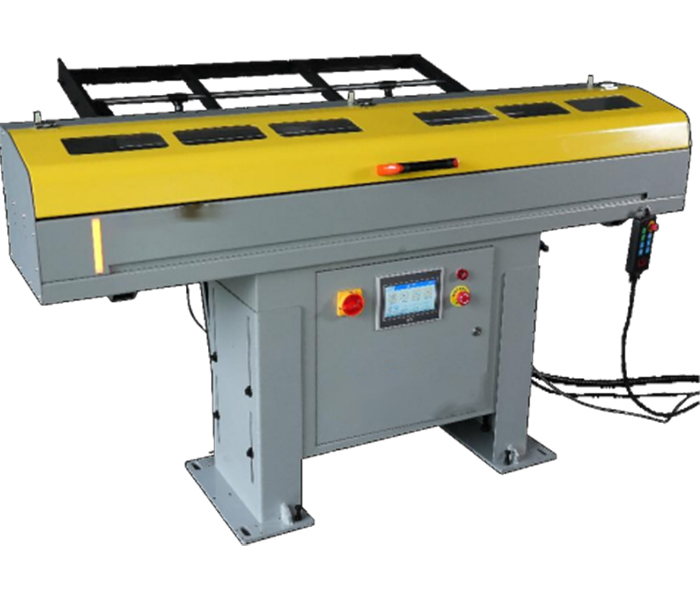

Part 2 : Product reference picture
