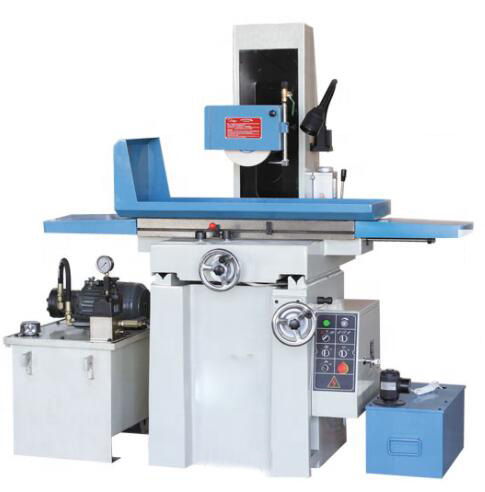

Main Features:
1.Hydraulic longitudinal table travel
2.Quality castings and Precision ball bearing supporting the spindle
3.Coolant system with nozzle and flow control valve
4.Cast iron machine body and stand for maximum rigidity and smooth operation
5.Vertical dial graduations 0.01mm
6.Cross travel graduations 0.02mm
7.Manual one shot lubrication pump
8.Wheel balancing stand and arbor
9.Halogen work light
| MODEL | M618A | M820 | MY820 | MY1022 | MY1224 | MY1230 | |
| Table Size (L×W) (mm) | 460X180 | 180X220 | 480×220 | 540×250 | 600X300 | 750×300 | |
| Table travel(mm) | 500X190 | 530X220 | 530×220 | 560×260 | 630×320 | 780×320 | |
| Number of T -Slot(mm) | 1×14 | ||||||
| Speed of Working Table (m/min) | 3-20 | ||||||
| The Speed of Vertical Travel(mm/min) | 500 | 600 | |||||
| Max .distance from spindle to table (mm) | 335 | 450 | 450 | 530 | |||
| Table slide-way | V-type rail with Steel-ball | V-type rail with Steel-ball | Double V-type rail | ||||
| Cross feed on handwheel | revolution(mm) | 2.5 | 2.5 | 4 | |||
| graduation(mm) | 0.02 | 0.02 | 0.02 | ||||
| Vertical feed on handwheel | revolution(mm) | 1.25 | 1.25 | 2 | |||
| graduation(mm) | 0.01 | 0.01 | 0.01 | ||||
| The Speed of cross travel(mm/min) | Off and On | 0-5 | 0-6 | 1-20 | |||
| Continual | 150 | 240 | 50-500 | ||||
| Wheel speed | 50HZ | 2850 | 2850 | 2850 | 1450 | ||
| Wheel size(mm) | Ø 180x13x Ø 31.75 | Ø 200x20x Ø 31.75 | Ø 200x20x Ø 31.75 | Ø 250x25x Ø 76.2 | |||
| Spindle motor(kw) | 1.1 | 1.1 | 1.1 | 1.5 | 2.2 | ||
| Hydraulic station motor(kw) | 1.5 | 2.2 | |||||
| Coolant pump(kw) | 0.4 | 0.4 | 0.4 | 0.4 | |||
| Working pressure(mpa) | 3 | 4 | |||||
| Max. capacity(L/min) | 18 | 20 | |||||
| Fuel tank capacity (L) | 80 | ||||||
| N.W./ G.W. (kg) | 650/750 | 700/800 | 750/850 | 900/1000 | 1300/1430 | 1400/1530 | |
| Overall size(mm) | 1550×1060×1590 | 1680x1140x1760 | 1680x1140x1760 | 1680x1220x1720 | 1960x1480x1850 | 1960x1480x1850 | |
| Packing size(mm) | 1060×1170×1870 | 1140x1250x1940 | 1630x1140x1940 | 1630x1290x1940 | 2000x1640x2020 | 2000x1640x2020 | |
Standard accessories:
1. Tool box
2. Banlancing stand balancing bar
3. Flange wrench
4. Screwdriver
5. Banlancing screw
6. Open-end wrench
7. Inner hexagon spanner
8. Wheel dersser holder
9. Machine stand pad
10. Wheel flange
11. Wheel dresser
12. Chuck
