CNC bending machine is a high-precision, high-efficiency automated processing equipment specially used for bending and forming metal sheets. It can realize the bending of complex shapes and meet the diversified needs of different industries by accurately controlling the bending angle, position and force through the computer numerical control system. CNC bending machine is widely used in automobile manufacturing, aerospace, electronic equipment, home appliance production and architectural decoration. It is used to process various metal sheet parts, such as automobile body parts, aviation structural parts, electronic shells, home appliance shells and architectural decoration components. It has a high degree of automation and stable processing accuracy. It can significantly improve production efficiency and reduce labor costs, while ensuring the consistency of product quality. It is one of the key equipment for realizing the automation and intelligence of sheet metal processing in modern manufacturing.

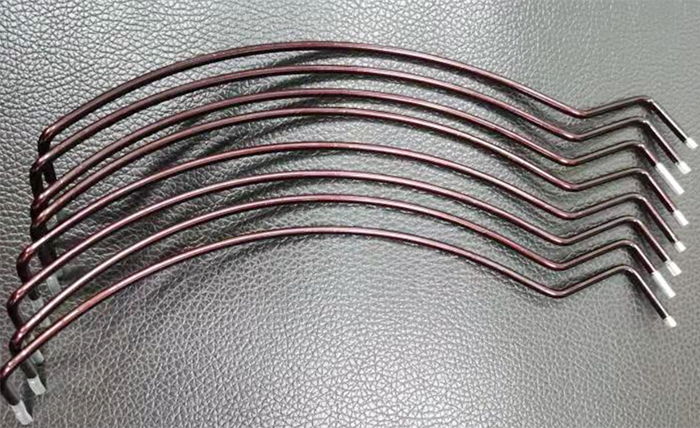

Sample picture

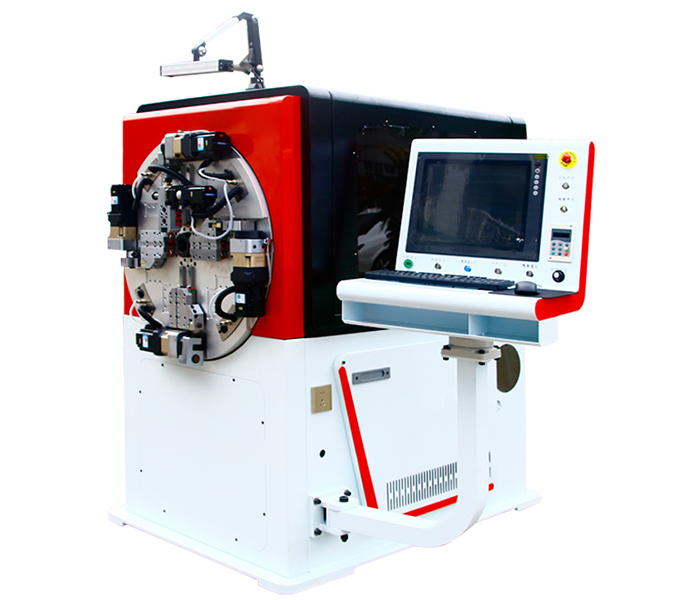

Recently, ANTISHICNC received an inquiry from an electronic product manufacturer. When new energy electric vehicles came, the company had the goal of entering the automotive parts industry. The copper wire bending machine can not only bend copper wire, but also straighten it, strip paint at both ends, cut it and other functions. The wire diameter of the bent copper wire is generally 2.8mm, and the wire diameter including the paint is 3.0mm. The equipment can realize coil feeding, paint stripping, straightening, bending and cutting in one step. It is another tool to replace imported equipment in the production of new energy vehicle stator copper wire bending parts.
| Model item | BL-TP-30-5E |
| Production range | Thickness: 2.0-5.0mm; Width: 8.0-30mm |
| Number of control axes | 12-14 axis |
| Total servo power | 25.7KW |
| Wire feeding servo | 4.5KW |
| Wire transfer servo | 2.7KW |
| Servo shear | 1.0KW |
| Arm servo | 2.0KW*8 |
| Curling servo | 1.5KW |
| Angle accuracy | 90°±0.2° |
| Working voltage | Three-phase 380V (±20V) |
| Main machine weight | 4800KG |
| Wire feeding frame load bearing | 1000KG |
| Machine dimensions (length, width and height) | 2800*2100*2000mm |
| Site occupation | Length 6800mm*width 2500mm |
If you have similar processing needs, please feel free to consult the Shanghai Antis team. We will provide professional advice and help. Please contact contact@antsmachine.com
