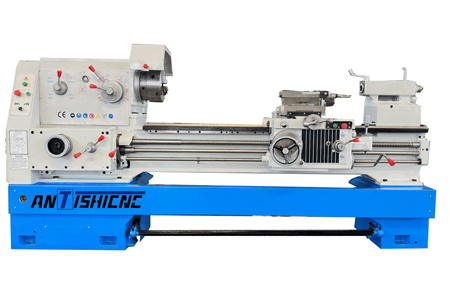

Recently, an Indonesian customer inquired about a universal lathe. The customer was interested in the CA6250C-1500, a machine used for machining flanges. I provided the customer with a detailed introduction to the technical parameters and functions of the CA6250C-1500 universal lathe, and this model perfectly met the customer’s needs.
Due to its versatility, the universal lathe can perform a variety of machining operations. These operations include:
- Turning: This is the most basic machining operation, used to cut and shape the outer diameter of a workpiece. The cutting tool removes chips from the material while the workpiece rotates.
- Internal Turning: A process for machining the interior of a workpiece. Its uses include enlarging hole diameters or machining internal surfaces.
- External Threading: This refers to the process of machining threads on the outer surface of a workpiece. This process is used to manufacture screws and similar threaded fasteners.
- Internal Threading: This refers to the process of machining threads inside a workpiece. This process can create internal threaded connections or similar threaded internal surfaces.
- Drilling: The process of drilling a hole axially into a workpiece. This process is used to drill holes at the center of the workpiece or at a specific depth.
- Grooving: The process of machining grooves on the outer or inner surface of a workpiece. These grooves can be used for O-ring grooves, keyways, and similar structures.
- Cutting (Separation): The process of cutting a workpiece in half or to a certain length.
- Surface Turning: The process of smoothing or achieving a certain surface quality on the surface of a workpiece.
- Taper Turning: The process of turning a workpiece into a tapered shape. This process is used to manufacture tapered parts with different axial diameters.
- Contour Turning: The process of machining a specific contour on the outer or inner surface of a workpiece. This makes it possible to machine complex geometries.
- Polishing: The process of polishing or smoothing the surface of a workpiece.
In addition to these basic operations, universal lathes can perform more complex and customized machining operations with the help of various special-purpose tools and accessories. This flexibility makes them indispensable in many industries such as metalworking, woodworking, and plastics processing.
Below are the specific technical parameters of the CA6250C-1500 lathe.
| Category | Parameter Name | Value |
| Bed and Swing Parameters | Max Swing Diameter over Bed | Φ500 mm |
| Max Swing Diameter over Carriage | Φ300 mm | |
| Max Swing Diameter in Gap | Φ720 mm | |
| Effective Length in Gap | 210 mm | |
| Max Workpiece Length between Centers | 1500 mm | |
| Max Workpiece Weight between Centers | 500 kg | |
| Bed Way Width | 400 mm | |
| Distance from Spindle Center to Bed Way Surface | 250 mm | |
| Spindle Parameters | Spindle Bore Diameter | Φ105 mm |
| Spindle Nose Model | ISO (GB) D6 | |
| Spindle Front Taper | Morse Taper No. 6 | |
| Spindle Speed Steps | 24 forward steps, 12 reverse steps | |
| Spindle Speed Range | Forward 10-1600 r/min, Reverse 12.5-1600 r/min | |
| Spindle Motor Power | 7.5 kW | |
| Feed and Thread Parameters | Number of Feed Rates | 64 types |
| Longitudinal Standard Feed | 0.08-1.59 mm/r | |
| Longitudinal Fine Feed | 0.028-0.054 mm/r | |
| Longitudinal Coarse Feed | 1.71-6.33 mm/r | |
| Cross Standard Feed | 0.04-0.79 mm/r | |
| Cross Fine Feed | 0.014-0.027 mm/r | |
| Cross Coarse Feed | 0.86-3.16 mm/r | |
| Metric Threads | 44 types, 1-192 mm | |
| Module Threads | 39 types, 0.25-48 mm | |
| Inch Threads | 21 types, 2-24 TPI | |
| Diametral Pitch Threads | 37 types, 1-96 DP | |
| Carriage Parameters | Carriage Rapid Traverse Speed | Longitudinal 4 m/min, Cross 2 m/min |
| Carriage Type | Vertical Square Tool Post | |
| Tool Shank Size | 25×25 mm | |
| Max Travel of Upper/Lower Carriage | 140/320 mm | |
| Carriage Turret Rotation Angle | ±90° | |
| Distance from Spindle Centerline to Tool Support Surface | 26 mm | |
| Tailstock Parameters | Tailstock Sleeve Diameter | Φ75 mm |
| Tailstock Sleeve Travel | 150 mm | |
| Tailstock Sleeve Taper | Morse Taper No. 5 | |
| Cooling System Parameters | Cooling Motor Power | 90 W |
| Cooling Water Pump Head | 5 m | |
| Cooling Water Pump Flow Rate | 25 L/min |
If you also need a suitable universal lathe, please feel free to contact Shanghai Antes. We are a seasoned supplier of metal machining equipment with extensive experience in machinery manufacturing and application, and can provide you with professional technical support.
