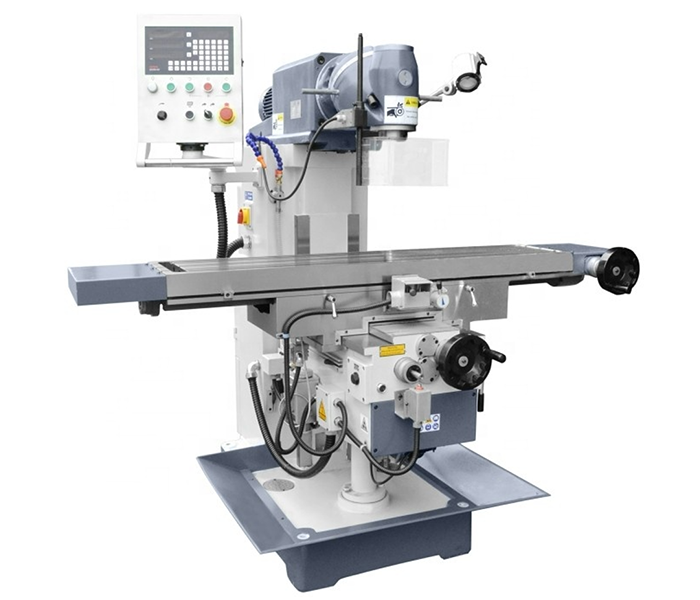

| Features and Construction: |
| The major structural parts shall be manufactured from high quality Meehanite cast iron, assuring maximum rigidity and stability. |
| 3-axes slideways to be hardened and precision ground. |
| Table longitudinal travel shall be driven through powerful gearbox, making the machine ideal for heavy duty machining. |
| Automatic lubricator provides lubrication to all slideways and feed screws. |
| Powered table elevation. |
| X, Y-axis slideways shall be coated with wear-resistant media and precision scraped. |
| Ball screw shall be installed on X, Y-axes. |
| 16-steps milling head. |
| Y-axes movement must be controlled through inverter. |
TECHNICAL SPECIFICATION
| Table: | |
| Working surface of table | W: 300, L: 1370 mm |
| Longitudinal travel | 1000 mm |
| Cross travel | 380 mm |
| Longitudinal feeds | Min: Maxm23, Max: Minm625 mm/min ( 12 steps) |
| Rapid longitudinal traverse: | 8P :1400 mm/min |
| Rapid vertical traverse | 1335 mm/min |
| Horizontal Main Spindle | |
| Spindle speeds: | Min: Maxm 45, Max: Minm 1660 rpm (11 steps) |
| Taper of spindle nose | 7:24, ISO40 |
| Distance of spindle center to table top | 500mm |
| Distance of spindle center to overarm bottom | 160 mm |
| Motor: | |
| Table longitudinal feed: 2HP (4P/8P) or higher |
4.0 HP |
| Table cross travel feed: 1/2HP (4P) or higher | |
| Table vertical rapid traverse: 1HP (8P) or higher | |
| Coolant pump: 1/8 HP or higher | Coolant pump: 1/8 HP |
