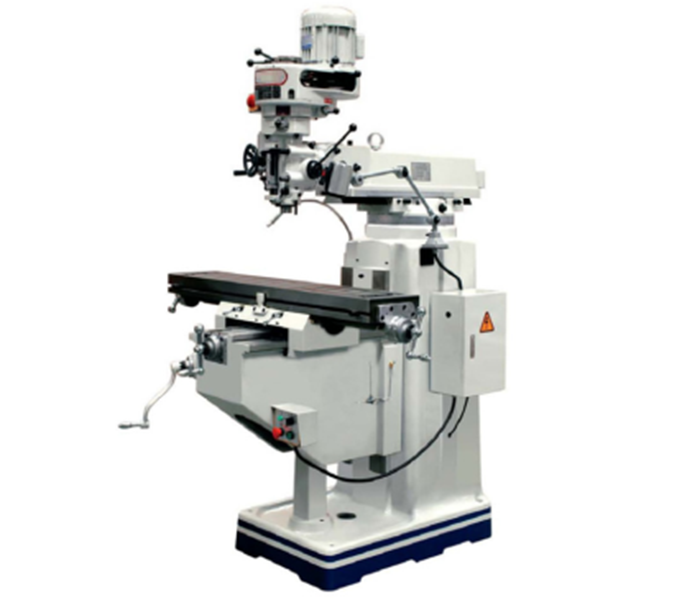

| Features and Construction: |
| Major structural parts shall be manufactured from high quality Meehanite cast iron, assuring maximum rigidity and stability. |
| 3-axes slideways shall be hardened and precision ground. |
| Table longitudinal travel shall be driven through powerful gearbox, making the machine ideal for heavy duty machining. |
| Automatic lubricator shall provide lubrication to all slideways and feed screws. |
| Powered table elevation. |
| X, Y-axis slideways must be coated with wear-resistant media and precision scraped. |
| Ball screw shall be installed on X, Y-axes. |
| Variable speed milling head. |
| Y-axes movement is controlled through inverter. |
TECHNICAL SPECIFICATION
| Table: | |
| Working surface of table | W: 330x L:1500mm |
| Longitudinal travel | 1000mm |
| Cross travel | 380mm |
| Vertical travel | 460mm |
| Longitudinal feeds | Min: Max 23, Max: Minm 625 mm/min (12 steps) |
| Rapid longitudinal traverse | 4P: 2850~2900 mm/min
8P: 1400~1450 mm/min |
| Rapid vertical traverse | 675~700 mm/min |
| Vertical Main Spindle: | |
| Spindle speeds | Min: Maxm 1500, Max: Minm 3800 rpm (Variable Speed) |
| Quill travel/Quill Dia | Quill travel: 127mm
Quill Dia: 100mm |
| Taper of spindle nose | ISO40 |
| Swiveling angle of spindle head (R & L) each side | 90° (R & L) |
| Overarm travel | 500mm |
| Distance of spindle end to table top | 450 mm |
| Motor: | |
| Vertical spindle | 5HP |
| Table longitudinal feed | 2HP (4P/8P) |
| Table cross travel feed | 1/2HP (4P) |
| Table Vertical rapid traverse | 1HP (8P) |
| Coolant pump | 1/8 HP |
