In order to meet the needs of large-batch and automated steel processing and improve production and processing efficiency, a fully automated drilling and sawing production line came into being.Shanghai ANTISHICNC specializes in the production of CNC drilling and sawing machines. After the efforts of many engineers, it has developed fully automatic CNC drilling and sawing production equipment, which provides a wide range of technical solutions for steel profile processing.
Recently, the Shanghai ANTS team received a consultation from a bridge engineering company in Morocco. The customer is looking for equipment for high-efficiency processing of H-shaped steel, which can meet the requirements of drilling and sawing at the same time, and provides detailed workpiece size, processing requirements, etc.

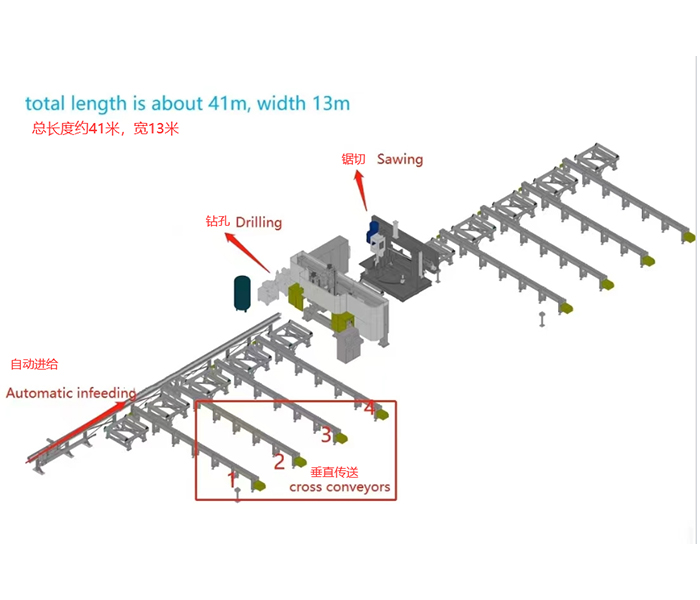

After our technical confirmation, we designed a fully automated production line. This one can realize the needs of automatic feeding, automatic drilling, and automatic sawing. The equipment is integrated in an operating system, which is convenient to operate. At the same time, this combination method saves manufacturing costs to the greatest extent and covers a relatively small area.
| Model | HD1000-3D | ||
| Work-piece parameter | H Beam | Web H (mm) | 150～1000 |
| Flange B (mm) | 75～500 | ||
| U Beam | Web H (mm) | 150～1000 | |
| Flange B (mm) | 75～250 | ||
| Max. Work-piece thickness (mm) | 80 | ||
| Max. Feeding length (mm) | 12000 or 15000 (optional) | ||
| Main spindle | Qty. | 3 | |
| Spindle taper | BT40 | ||
| Spindle rotation speed (r/min) | 200～3000 | ||
| Feeding speed (mm/min) | 0～5000 | ||
| Max. hole diameter (mm) | φ40 | ||
| Center
line movement scope (mm) |
Center slide table/
Horizontal direction |
45～950 | |
| Fixed side/movement side
Vertical direction |
30～470 | ||
| Tool Magazine | Qty. | 3 | |
| Number of tools in tool magazine | 3×4 | ||
| Marking function
(optional) |
Character number | 36 | |
| Character size (mm) | Φ10 | ||
| Electrical system | CNC system | FAGOR 8070 or SIEMENS | |
| CNC axis number | 7+3 | ||
| Cooling system | No. of nozzle | 3 | |
| Pressure of compressed air (Mpa) | 1 | ||
| Cooling way | Spray cooling, internal cooling & external cooling | ||
| Hydraulic system | Hydraulic pump pressure (Mpa) | 15 | |
| Motor power (kW) | 5.5 | ||
| Overall dimension(L×W×H) (m) | About 5.45×2.1×3.5 | ||
| Main Machine weight (Kg) | About 9000 | ||
