High speed circular saw machines are becoming more and more widely used in the market. The emergence of high-speed circular saw machines has brought huge benefits to the development of many manufacturing companies. It shows significant advantages in technical and economic aspects:
1.Can effectively reduce costs
Compared with traditional circular saw machines, CNC high speed circular saw machines can realize automated operations and save more labor. The most important thing is that CNC machining improves the stability of product quality, reduces the defective rate of products, and saves the company’s production costs.
2.Improvement of production efficiency
The high speed circular saw machine uses matching circular saw blades to further shorten the cutting speed and improve the company’s production efficiency. On the other hand, it also means that companies can use less CNC equipment to produce more products than traditional equipment, which can reduce the number of equipment and factory area.
3.Convenient operation and maintenance
The high speed circular saw machine uses a touch-sensitive human-machine interface, making it easy to set up and use various tasks. High-precision equipment will actually bring more benefits during use, such as reducing friction and heat during operation, reducing energy loss, making the equipment run more smoothly and reliably, reducing the chance of failure, and making it easier for enterprises to use the equipment. maintain.
4.Facilitate information integration
The modern CNC system itself has powerful networking functions and can realize advanced CNC functions such as remote control, remote management, remote diagnostic support and manufacturing resource sharing.
5.Helps improve reliability
The production and manufacturing of high-speed circular saw machines uses a large number of electronic components, which is not only conducive to high-reliability design and the adoption of high-stability process measures, but also conducive to production management, quality control, equipment self-diagnosis, and manual maintenance and repair. Reduce equipment mean time to failure.

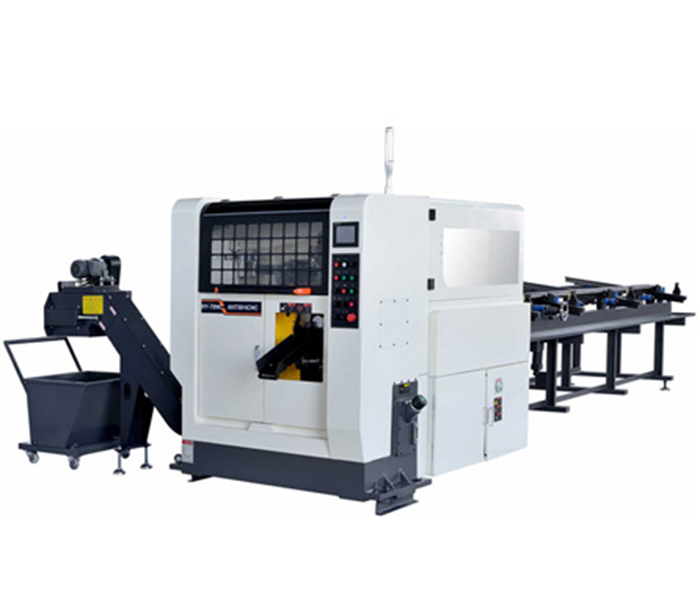

High Speed Circular Sawing Machine HY-75NC
Technical Parameter :
| Cutting capacity | ||||||||
| Round bar● | mm | 10-75 | ||||||
| Square bar■ | mm | 10~58 | ||||||
| Round pipe○ | mm | 10-75 | ||||||
| Square pipe□ | mm | 10-58 | ||||||
| Saw head spindle | ||||||||
| Use TCT type Super hard circular saw blade | mm | 250/285 X 2.0T | ||||||
| Pin hole and aperture | mm | 4xφ11 XPCD63X φ32 | ||||||
| Spindle motor | kw | 7.5(4P) | ||||||
| Spindle speed | rpm | 20-160 | ||||||
| Saw head feeding moethod | AC servo motor+ball screw(pivot type feeding) | |||||||
| Main clamping vises | Hydraulic, one set of vertical and horizontal clamping | |||||||
| Chips cleaning device | Passive wire brush/power wire brush(optional) | |||||||
| Gear backlash compensation device | Through shaft type magnetic powder brake | |||||||
| Workpiece feeding vise | ||||||||
| Workpiece feeding drive method | AC servo motor+ball screw | |||||||
| Feeding vise clamping method | Hydraulic, horizontal clamping | |||||||
| Workpiece front end removal length | mm | 10~99（This function could be closed） | ||||||
| Workpiece final remnant length | mm | 65+α（α is smaller than the setup cutting length) | ||||||
| Single feeding length range | mm | 6-780 | ||||||
| Automatic workpiece feeding device | ||||||||
| Allowable length to be loaded | mm | 3000-6000 | ||||||
| Feeding method | Pre-queuing type|hydraulic lift | |||||||
| Hydraulic devices | ||||||||
| Hydraulic motor | kw | 2.25(4P) | ||||||
| Rated pressure of hydraulic system | MPa | |||||||
| Hydraulic tank capacity | L | 90 | ||||||
| Cutting fluid cooling device | ||||||||
| Cooling motor | kw | 0.19(2P) | ||||||
| Machine size and weight | ||||||||
| Weight(host machine+roller table) | kg | 3000 | ||||||
| Size(LXW) | mm | 7100X2200 | ||||||
ANTS MACHINE sawing machines are of high quality and are sold to many countries in the world. If you need high-speed circular saw machines, please contact us.
