CNC pipe bending machine is an advanced pipe processing equipment with precise bending function. It can control the bending angle and radius of the pipe with high precision according to preset parameters and programs. For example, the manufacture of automobile exhaust pipes requires this function to ensure matching; CNC pipe bending machine can complete various bending shapes such as U-shape, S-shape, and circle. For example, metal pipe frames in the furniture industry often use this to meet design requirements; CNC pipe bending machine can realize automatic feeding and positioning of pipes, improve production efficiency and processing accuracy; CNC pipe bending machine can also adapt to the processing of multi-specification pipes with different pipe diameters, wall thicknesses and materials, and has strong versatility. For example, in the construction industry, CNC pipe bending machine can process both thin-walled stainless steel pipes and thick-walled carbon steel pipes.

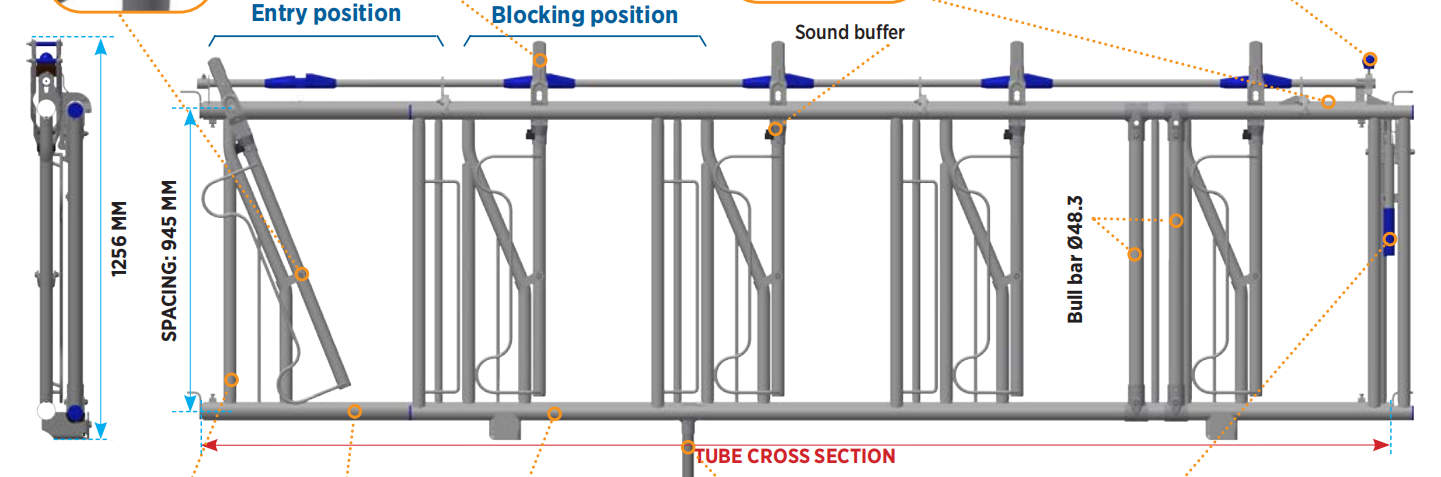

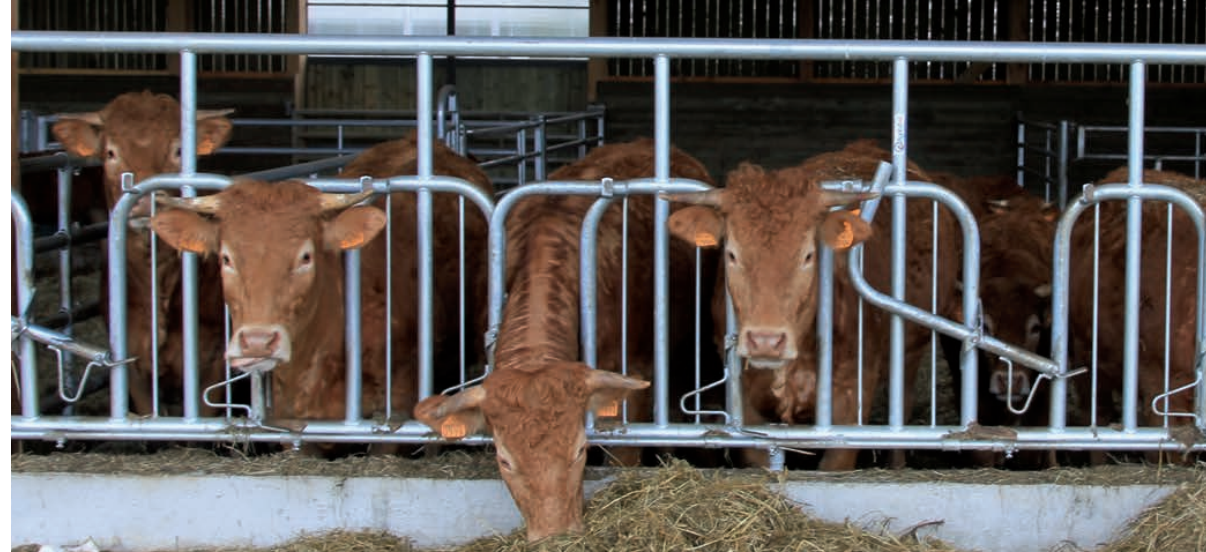

Recently, ANTISHICNC received an inquiry from a cattle neck yoke manufacturer. The customer launched different cattle neck yoke models to meet the needs of various cattle breeds and farmers. It is made of Ø 60 mm and Ø 42 mm pipes. Its features include adjustable brackets at both ends and 6 pre-set collar positions, which can completely clean up animals in the event of an accident. It also features a circular and solidly reinforced balanced design, uses a flow drilling process, can be locked individually, has a double-layer removable and sliding frame, and the 4m, 5m and 6m length models are equipped with central embedded reinforcement ribs.

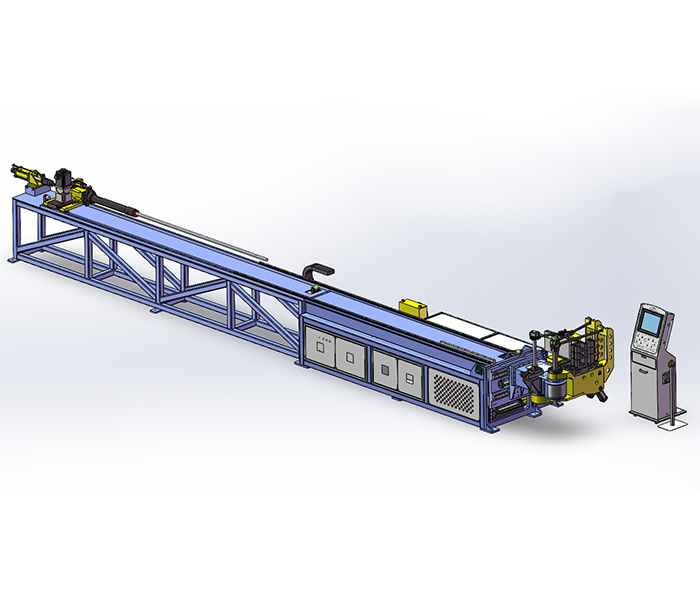

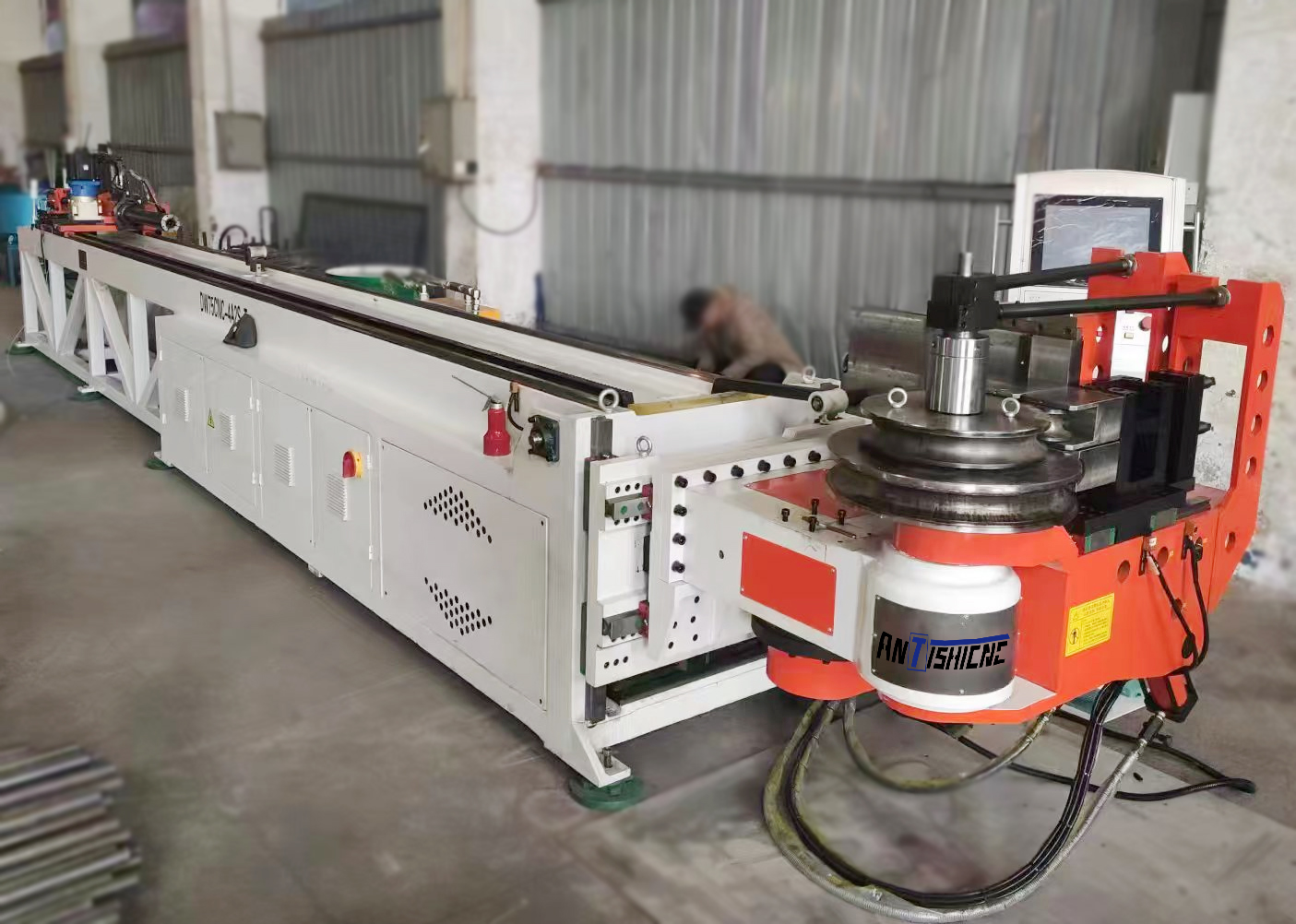

In response to the customer’s processing needs, we recommended CNC6504RET. This model uses Y (feeding), B (rotating tube), C (bending tube), Z (demolding), 4-axis electrical servo drive. The above 4-axis electrical servo drive, combined with the precision trolley servo angle, has a bending accuracy of 0.01° and a feeding accuracy of 0.01mm. The electrical servo drive avoids the defect that the accuracy of ordinary tube bending machines is affected by oil temperature, and is suitable for high-load and mass production.
If you are also a manufacturer of furniture and bedding products, or have similar processing needs, please feel free to contact us for consultation. We have rich experience in manufacturing and using pipe bending machines and can provide you with professional technical support.
| NO | Parameter | UNIT | CNC65RET |
| 1 | Max bending capacity/carbon steel | mm | 63.5×2.0 |
| 2 | Max bending capacity/stainless steel | mm | 55*1.5 |
| 3 | Max bending capacity/metal square tube | mm | 50*3.0 |
| 4 | Bending radius range/round tube | mm | 25-320 |
| 5 | Bending radius range/square tube | mm | 25-240 |
| 6 | Max pipe diameter for reciprocating feeding | Mm | 40 |
| 7 | Bending angle range | Degree | 190 |
| 8 | Max trolley feeding effective distance | Mm | 6000 |
| 9 | Machine working height | Mm | 1200 |
| 10 | Mold adjustable travel | Mm | 20-250 |
| 11 | Bend pipe servo motor | KW | 11 |
| 12 | bending speed | Deg/sec | 100 |
| 13 | Bending accuracy | Degree | ±0.05 |
| 14 | Feeding servo motor | KW | 5 |
| 15 | Feeding speed | Mm/sec | 450-750 |
| 16 | Feeding accuracy | mm | ±0.01 |
| 17 | Rotary tube servo motor | KW | 750 |
| 18 | Tube speed | Deg/sec | 98 |
| 19 | Tube rotation accuracy | Degree | ±0.01 |
| 20 | Demold servo motor | KW | 1.5 |
| 21 | Demold movement speed | Mm/sec | 100 |
| 22 | Demolding accuracy | mm | ±0.01 |
| 23 | Auxiliary thrust movement speed | Mm/sec | 100 |
| 24 | Speed of movement through the core | Mm/sec | 80 |
| 25 | system Max pressure | Kgf/cm2 | 140 |
| 26 | Preset pressure | Kgf/cm2 | 100 |
| 27 | Machine length | Mm | ≈7800 |
| 28 | Machine width | Mm | ≈1250 |
| 29 | Machine height | Mm | ≈1400 |
| 30 | Machine weight | KG | ≈4200 |
If you are also a manufacturer of cattle yokes, or have similar processing needs, please come to ANTISHICNC for consultation. We have rich experience in manufacturing and using pipe bending machines and can provide you with professional technical support.
Please send an email to contact@antsmachine.com, for more product information, you can visit : cnc-65ret-left-and-right-shared-cnc-pipe-bender
