The high-speed metal circular saw machine is a device that uses a saw blade to rotate to cut workpieces. It can cut metal materials quickly and accurately. It is widely used in the field of metal processing and is especially suitable for high-speed and precise cutting of various non-ferrous metal pipes and bars.

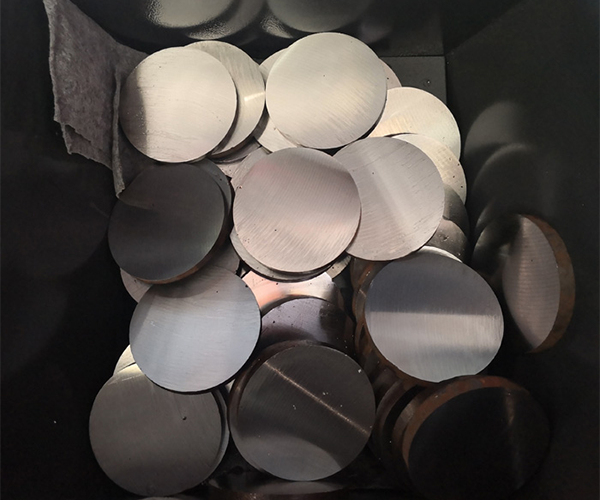

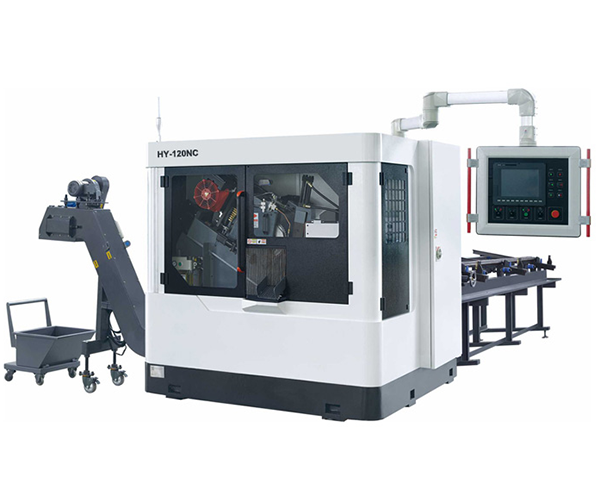

Recently, the Shanghai ANTS team received an inquiry from a fire equipment manufacturer in Mexico. The customer needs to cut aluminum rods with a diameter of 75-115mm, a length of 4.8m, a cutting thickness of 15-30mm, a tolerance of 0.25mm, and a chip conveyor and automatic feeding device. We recommended him a circular saw machine HY-120NC, which can cut 110 pieces of aluminum rods per hour with a diameter of 115mm.
Our machine advantages:
1.The sawing tool adopts imported TCT circular saw blade. The saw blade has long service life, narrow saw kerf and saves materials.
2.Use a logic controller for automatic control and a touch screen for parameter setting. The material head, material tail, workpiece, and chips can all be transported to designated positions, and the entire process is digitally controlled.
3.The feeding device and feeding device adopt the advanced method of servo motor and high-precision ball screw for feeding and feeding.
4.Using a quasi-dry spray cooling system, a centralized automatic lubrication system, and an automatic sawdust collection system, the overall performance of the equipment is reliable.
5.The use of an adjustable high-rigidity saw blade stabilizer completely prevents the vibration and deflection of the circular saw blade and ensures high cutting accuracy.
6.All hydraulic and pneumatic system components are imported well-known brand products, and the overall performance of the equipment is reliably guaranteed.
7.The power head, gear anti-backlash device and supporting components with independent intellectual property rights are all imported to ensure the cutting accuracy of the circular saw machine and the service life of the circular saw blade.
| Cutting capacity | ||
| Round bar● | mm | 30-120 |
| Square bar■ | mm | 30~80 |
| Round pipe○ | mm | 30-120 |
| Square pipe□ | mm | 30~80 |
| Saw head spindle | ||
| TCT type Super hard circular saw blade | mm | 360/380 X 2.6T |
| Pin hole and aperture | mm | 4xφ11 XPCD90X φ40 |
| Spindle motor | kw | 15(4P) |
| Spindle speed | rpm | 40-160 |
| Saw head feeding method | AC servo motor+ball screw(30° tilt feeding) | |
| Main clamping vises | Hydraulic, one set of vertical and horizontal clamping | |
| Chips cleaning device | Passive wire brush/power wire brush(optional) | |
| Gear backlash compensation device | Through shaft type magnetic powder brake | |
| Work–piece feeding vise | ||
| Workpiece feeding drive method | AC servo motor+ball screw | |
| Feeding vise clamping method | Hydraulic, horizontal clamping | |
| Workpiece front end removal length | mm | 10~99（This function could be closed） |
| Workpiece final remnant length | mm | 100+α（α is smaller than the setup cutting length) |
| Single feeding length range | mm | 10-800 |
| Automatic work–piece feeding device | ||
| Allowable length to be loaded | mm | 3000-6000 |
| Feeding method | Pr-arranged type|hydraulic lift | |
| Hydraulic devices | ||
| Hydraulic motor | kw | 2.25(4P) |
| Rated pressure of hydraulic system | MPa | 4.5～7 |
| Hydraulic tank capacity | L | 150 |
| Cutting fluid cooling device | ||
| Cooling motor | kw | 0.19(2P) |
| Machine size and weight | ||
| Weight(host machine+roller table) | kg | 5400 |
| Size(L x W) | mm | 7234X3339 |
If you are also a manufacturer of fire protection equipment, or have similar cutting needs, please feel free to consult Shanghai ANTS. We have extensive experience in manufacturing and using sawing machines and can provide you with professional technical support.
Key word: High Speed Circular Saw, Fire protection equipment, metal cutting, Bar cutting, Metal processing
